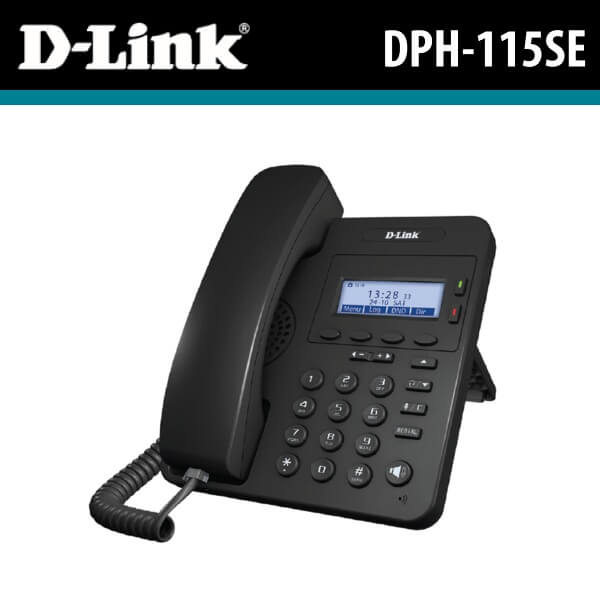

Dlink DPH115SE Dubai

Dlink DPH115SE Dubai

Dlink DPH115SE Dubai

The Dlink DPH115SE Dubai IP Phones are specifically crafted for a broad spectrum of office users, ranging from Very Small Enterprises (VSE) and Small Office/Home Office (SOHO) to Small and Medium-sized Businesses (SMB) engaged in VoIP communication.

Category:

Description

Dlink DPH115SE Dubai

The Dlink DPH115SE Dubai IP Phones are specifically crafted for a broad spectrum of office users, ranging from Very Small Enterprises (VSE) and Small Office/Home Office (SOHO) to Small and Mediumsized Businesses (SMB) engaged in VoIP communication. With an elegant and sophisticated design, this platform excels in performance, offering versatile features and specifications tailored to diverse environmental requirements. It is compatible with LAN/DSL/Cable network setups and can be registered to SIP registrar Servers, soft switches, IPPBXs, or IMSbased systems, facilitating communication with SIPenabled terminals.

Furthermore, the phone allows the user’s PC to connect to it instead of directly to the LAN. Encased in a plastic housing, the phone comes with essential accessories such as a handset, handset cord, keypad, keys, and a wallmounting kit. The LCD display on the panel provides a direct visual interface for users, who can configure the phone using the keypad/LCD or a web browser.

KEYPAD FEATURES

  • 4 Soft keys for doing more functions
  • 9 Function keys
  • 4 Navigator Keys for configuration
  • Hold
  • Call forward
  • Threeparty conference
  • MWI
  • Headset
  • Redial
  • Speaker
  • 12 numeric keys with star & pound key
  •   Mute
  • Vol / Vol +

PHONE FEATURES

  • Multiuser (2 SIP accounts)
  • Caller ID display
  • Call History: 400 Calls
  • Enterprises Phonebook 2000 entries
  • Personal Phonebook 1000 entries
  • Day/Time display
  • Call/Time display
  • 8 Selective Ring tones
  • 9 Speed dial number
  •   Incoming call indicator
  • Flexible dial map
  • Password control for Configuration
  • Predial before sending
  • MWI
  • SMS
  • Keypad lock
  • Emergency call
  • Customize DSS key/ soft key

TECHNICAL SPECIFICATIONS

NETWORK INTERFACE AND I/O PORTS

  • 2xRJ45 10/100M Ethernet ports
  • 2 LEDs: 2* account lights, including MWI (L1)
  • 1* RJ9 handset port
  • Power adapter: AC 100~240V input and DC 5V/1A output

PHONE FEATURES

  • 2 SIP accounts, MWI(Line1)
  • Call hold, Call waiting, Call forward, Call return;
  • Call transfer (blind/busy/ask)
  • Caller ID display, Redial, Mute, DND
  • Autoanswer, 3way conferencing
  • Speed dial, SMS, Voicemail
  • Tone scheme, Volume control
  • Direct IP call without SIP proxy
  • Ring tone selection/import/delete
  • Black list
  • Call history: dialed/received/missed/call forwarding
  • Soft keys programmable, Supports PC control
  • MultiLanguage: Chinese, English, French, Russian, Italian, Portuguesa, PortuguesaBrasil, Spanish, Turkish

PHYSICAL FEATURES

  • 128*64 graphic LCD with back light
  • 25 keys, including 9 programmable keys, 2 LEDs: 2* account lights, including MWI(L1)
  • 1* RJ9 handset port 2xRJ45 10/100/1000M Ethernet ports
  • Power adapter: AC 100~240V input and DC 5V/1A output
  • POE ,IEEE 802.3af,class 0
  • Power consumption: 1.5W
  • Net weight: 0.62kg
  • Dimension: 180x157x33mm
  • Operating humidity: 10~95%
  • Storage temperature: up to 60°C

NETWORK FEATURES

  • SIP v1 (RFC2543), v2 (RFC3261)
  • SIP connection: Proxy mode & Peering Points mode;
  • SRTP voice encryption(RFC3711)
  • Redundant server support
  • NAT Traversal: STUN mode
  • DTMF: InBand, RFC2833, SIP Info, Auto
  • HTTP Web Management
  • IP Assignment: Static/DHCP/PPPoE
  • Bridge/Router mode for PC port
  • TFTP/DHCP/PPPoE client
  • Telnet/HTTP/HTTPS server, DNS client, NAT/DHCP server
