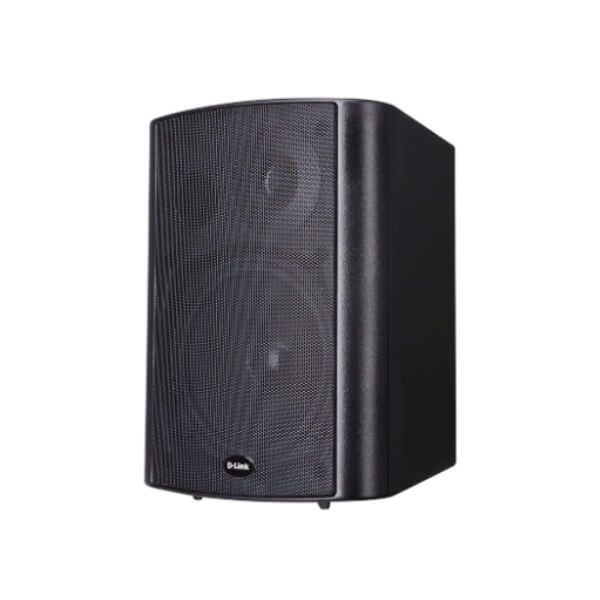

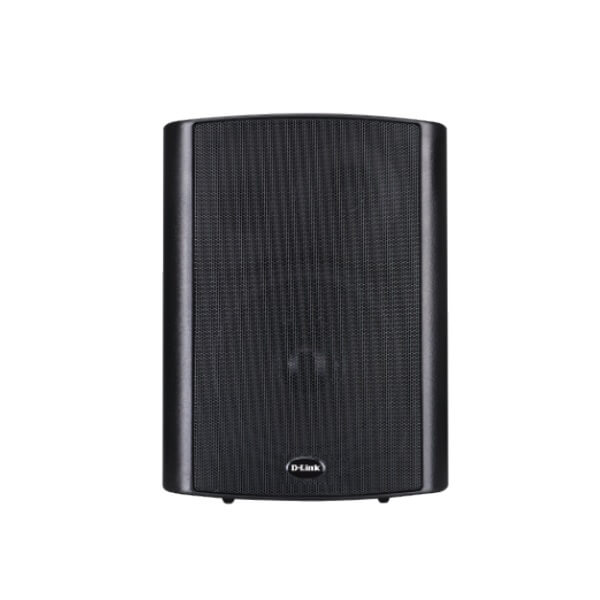

Dlink DPH500SE Dubai
The Dlink DPH500SE Dubai SIP Speakers are primarily crafted for Public Address (PA) paging purposes, broadcasting advertisements, speeches, and music in offices, factories, and public spaces. Featuring a sophisticated and elegant design, this platform excels in performance and provides versatile features and specifications to meet diverse environmental requirements. It inherits compatibility advantages, ensuring seamless integration with various IP PBX and softswitch systems based on SIP/IMS platforms, including popular options like Asterisk, Broadsoft, 3cx, and Elastix. This facilitates rapid deployment, offering users a convenient solution for their communication needs.
FEATURES
- Highly reliable
- Easy scalable system
- 2 SIP Accounts
- Perfect integration with the IP-PBX system
- Simple P2P Peer to Peer application
- Compatible with standard SIP (RFC3261) protocol and main IPPBX/IMS platform
- All-in-one wall-mounted design, integrated with network audio codec, digital amplifier and speaker
- Built-in high fidelity speaker
- Online adjust volume output
- The built-in audio output interface to connect external active speakers
- Standard RJ45 port, the Ethernet front-end ports where you can access, support across different network segment and routing
- Adaptive output power according to the power supply voltage
TECHNICAL SPECIFICATIONS
NETWORK INTERFACE AND I/O PORTS
+ WAN Port: to connect to 10/100 Mbps Ethernet
+ LAN Port: to connect to 10/100 Mbps Ethernet
+ DC IN Jack: to connect to local power with a switching power adaptor
FLEXIBLE CHOICE OF AMPLIFIER OUTPUT POWER
10W : POE/12V DC 1A Power Supply
20W : 18V DC 2A Power Supply
30W : 24V DC 2 A Power Supply
BASIC PERFORMANCE
- 2 SIP Lines
- POE Enabled (Power Over Ethernet)
- Wall-Mounted Installation
- A Built-in Audio Output to Connect External Speaker
- Support External Power Supply
- Industry Certification: CE/FCC
AUDIO FEATURES
- Narrowband Speech Coding: G.711a/u, G.723.1, G.726-32K, G.729AB
- Wideband Speech Coding: G.722
- Voice Activation Detection/Mute
- DTMF: With the Audio (In-band), Out-of-Band (RFC2833) / SIP INFO
PHYSICAL SPECIFICATIONS
- WAN Port 10/100BASE-Tx Auto-MDIX RJ-45
- LAN Port 10/100BASE-Tx Auto-MDIX RJ-45
- Main Chip: Broadcom
- Output Power: According to the power supply voltage automatic adaptation. A) PoE 10W C) 18V/2A 20W B) the 12V/2A, 10W D) 24V/2A 30W
- Frequency Range: 75 hz – 20 KHZ
- Power Supply: 12V 2A/ 18V 2A/24V 2A DC or PoE(48V)
- Working Temperature: – 10 ~ 50
- Storage Temperature: – 10 ~ 50
- Relative Humidity: 20 ~ 80%
- Package Weight: 3.1 kg
- Equipment Size: 165 x240x185mm (W x H x L)
- Gift Box Dimensions:260x315x305mm (W x H x L)
- Outer CTN Dimensions: 530 x 340 x 630mm (6 PCS)
