Description

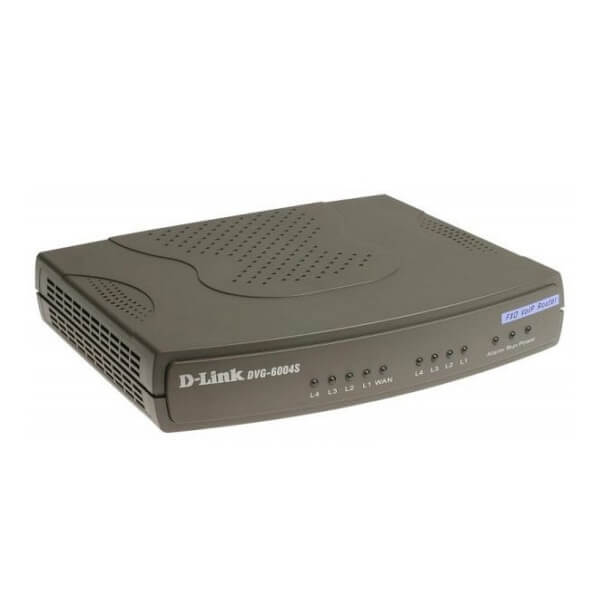

Dlink DVG6004S Dubai
The Dlink DVG6004S Dubai VoIP trunk gateways link an IP network to POTS (plain old telephone service) analog lines to transmit IP voice and data to traditional phone sets and fax machines. Intended as an affordable VoIP option for small to medium-sized businesses and branch offices, these devices offer 4 or 8 FXO (Foreign eXchange Office) ports for 4 or 8 phone line connections. The IP network connection can be established through any of the 4 LAN ports or the WAN port (all 10/100BASE-TX Ethernet interfaces).
Technical Specifications
VoIP
Analog Interface
- DVG-6004S: 4 RJ-11 FXO ports
- DVG-6008S: 8 RJ-11 FXO ports
- Loop start signaling protocol
- Reversed polarity detection
Voice Features
- SIP (RFC3261) compatible
- SIP method: ACK, BYE, CANCEL, INFO, INVITE, NOTIFY
- PING, PRACK, PUBLISH, REFER, REGISTER
- SIP Extension: Session Timer (UPDATE or re-INVITE)
- Voice CODEC: G.711 a /u law, G.726, G.729A, G.723.1
- CNG (Comfort Noise Generation)
- VAD (Voice Activity Detection)
- Silence suppression/detection
- G.165/G.168 echo cancellation
- Adaptive Jitter Buffer and programmable Gain Control
- In-Band DTMF, Out-Of-Band DTMF relay (RFC2833, SIP INFO)
- T.30 (G.III) / Real time T.38 / Secured T.38 FAX relay
- DTMF, FSK (Bellcore & ETSI) Caller ID detection
- Caller ID Restriction (CLIR) support
- Single Number / Account for multiple ports
- Group hunting function
- Digit Map
- E.164 Numbering & ENUM support
- Recordable greeting message
- Hot-Line, Warm-Line support
Call Features
- Call Hold, Call Waiting, Call Pickup
- Call Forward – Unconditional, Busy, No Answer
- Call Transfer – Unattended, Attended
- Speed Dialing, Repeat Dialing, Three Way Calling
IP Network
WAN Port
- RJ-45 10/100BASE-TX Ethernet port supporting Nway deployment with less dispatch OPTIONS, auto-negotiation, auto-detection/adjustment of MDI/MDIX
- Static IP, PPPoE, PPtP, Bigpond Cable and DHCP address Ping test SUBSCRIBE, UPDATE assignment support
- QoS: IP TOS (IP Precedence), DiffServ, Port Priority
- NAT traversal: STUN, UPnP, OUTBOUND PROXY
- Pass-through NAT
- DDNS: DynDns.org, TZO, PeanutHull, 3322.org.
- MAC address clone
LAN Ports
- QoS: port based priority (Hi/Low) with rate limit
- Router or Bridge Mode
- Physical & Environmental
Power Input Operating Temperature Safety
- DC 12V 0o to 45oC UL
- Through AC 100V to 240V 50/60Hz input power adapter
Storage Temperature o o -25 to 75 C
Dimensions Operating Humidity
DVG-6004S: 202 x 172 x 35 mm Up to 90%RH, non-condensing
Weight 430 grams
