Description

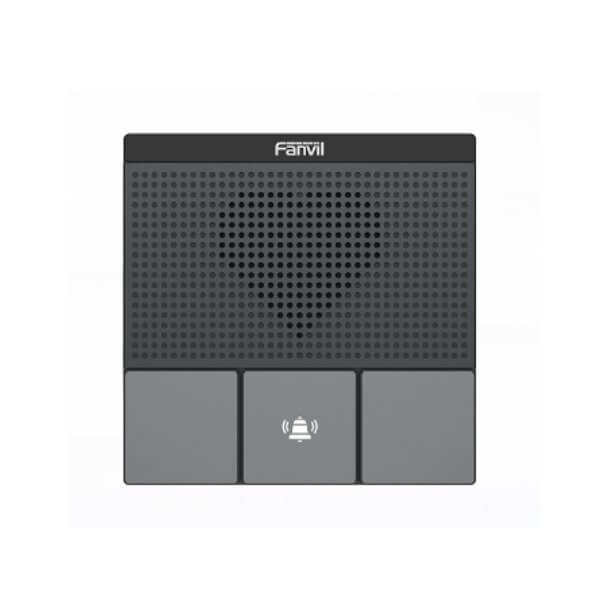

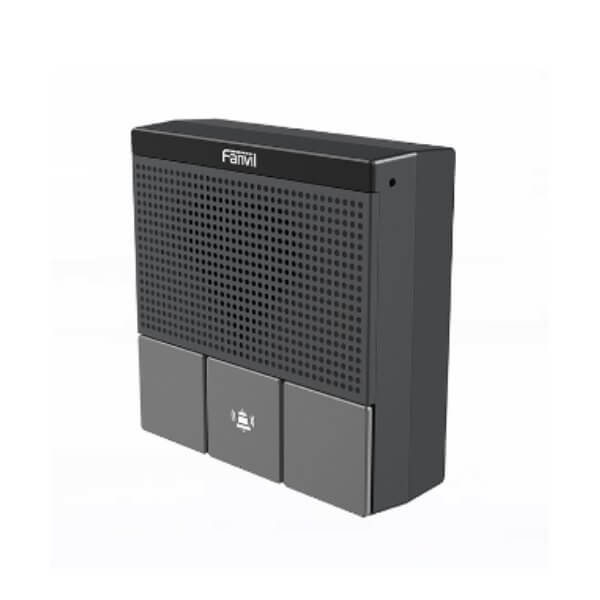

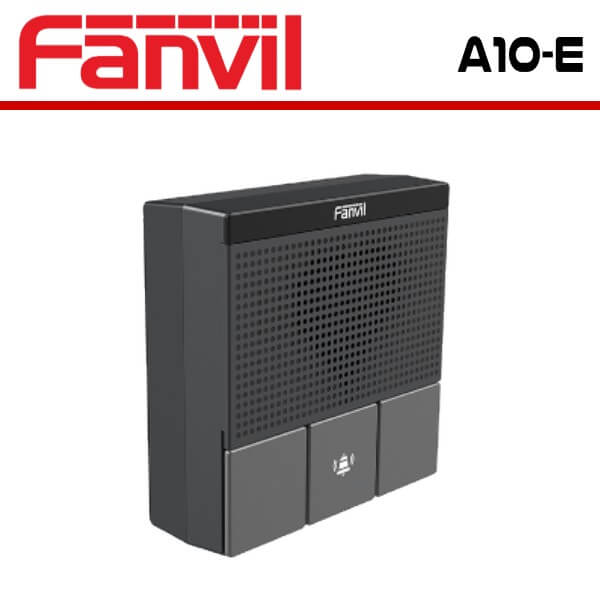

Fanvil A10-E Dubai

The Fanvil A10-E Dubai SIP mini intercoms are specifically designed for indoor settings requiring security, intercom, and broadcasting capabilities. These intercoms have a sleek and compact design, including 2 SIP accounts, 3 detachable function buttons, and PoE power supply. The A10 series offers various features such as HD audio, IP54 waterproof and dustproof rating, and built-in 2.4G & 5G Wi-Fi (A10W/A10W-E), ensuring a premium communication experience for users. Additionally, they are compatible with wall mountable installation (A10/A10W) and standard 86 box embedded installation (A10-E/A10W-E) for diverse indoor applications.

Highlights

Features 2 SIP accounts and 3 detachable function buttons
Built-in 2.4G & 5G Wi-Fi (A10W/A10W-E)
IP54 waterproof and dustproof
Support HD audio with codec G.722 and Opus
Built-in 2W speaker and Acoustic Echo Canceller (AEC)
Built-in 1 short circuit input/output interface
Support PoE power supply
Support standard 86 box embedded (A10-E/A10W-E) and wall mountable(A10/A10W) installation

Generic

2 SIP Lines
Auto answer
HD Voice
PoE Enabled
Built-in 2.4G & 5G Wi-Fi(A10W/A10W-E)
Intercom function
External Power Supply (Optional)

Intercom Function

Support customized DSS keys
Network Time Synchronization
Built-in Wi-Fi (A10W/A10W-E)
- 2.4G, 802.11 b/g/n
- 5G, 802.11 a/n
Action URL / Active URL

Audio

Narrowband Codec: G.711a/u, G.729AB, G.723.1, G.726, iLBC
Wideband Codec: G.722, Opus
Duplex intercom with Acoustic Echo Canceller (AEC)
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer
DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

Physical: 10/100 Mbps Ethernet
Wi-Fi: 2.4G&5G (A10W/A10W-E)
IP Mode: IPv4/IPv6/IPv4&IPv6
IP Configuration: Static / DHCP / PPPoE
Wi-Fi Encryption: WPA /WPA2-PSK /802.X EAP
VPN: L2TP / OpenVPN
VLAN
LLDP
QoS

Protocols

SIP2.0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
IPv6
LLDP
PPPoE
L2TP
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069

Physical Specifications

A10 Series:3 DSS button；
Status indicator light : Fast flashing red (registration failed、network anomaly)、Slow flashing green(call)
1 RJ45 port
1 short circuit input interface
1 relay: NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
Power: DC12V/1A or POE
Power Consumption (Adapter)：
- 0.94W~1.98W (A10/A10-E)
- 1.42W~2.35W (A10W/A10W-E)
Power Consumption (PoE)：
- 1.48W~2.37W (A10/A10-E)
- 1.99W~3.05W (A10W/A10W-E)
Housing material: ABS
Installation: Indoor installation
- Standard 86 Box Embedded(A10-E/A10W-E)
- Wall Mountable(A10/A10W)
Color: Gunmetal
working temperature: -10 ~50 °C
Storage temperature: -20 ~ 50 °C
Relative humidity: 10% – 90%
Qty/CTN：20 PCS
N.W/CTN: 3.41kg
G.W/CTN: 3.6kg
Equipment Dimension:
- 87.56 x 87.56 x 30mm (Wall Mountable)
- 87.56 x 87.56 x 21.5mm ( 86 Box Embedded)
Packing Dimension: 95x106x40mm
Outer CTN Dimension: 224x220x210mm(20 PCS)
Features 2 SIP accounts and 3 detachable function buttons
Built-in 2.4G & 5G Wi-Fi (A10W/A10W-E)
IP54 waterproof and dustproof
Support HD audio with codec G.722 and Opus
Built-in 2W speaker and Acoustic Echo Canceller (AEC)
Built-in 1 short circuit input/output interface
Support PoE power supply
Support standard 86 box embedded (A10-E/A10W-E) and wall mountable(A10/A10W) installation
