Description

Fanvil FH-S01 Dubai

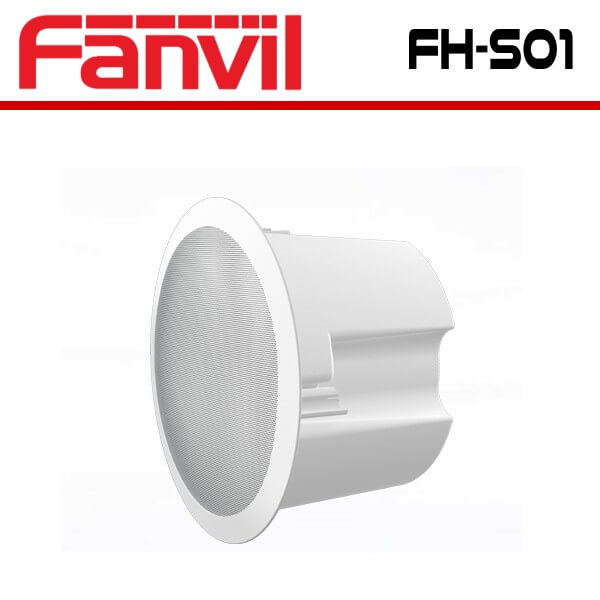

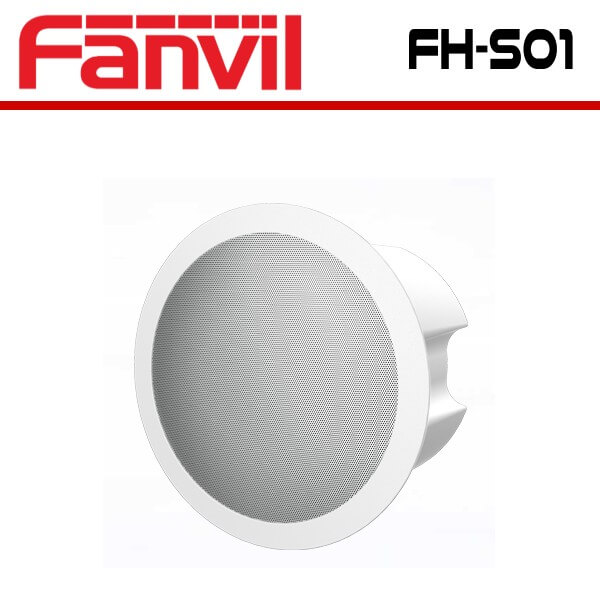

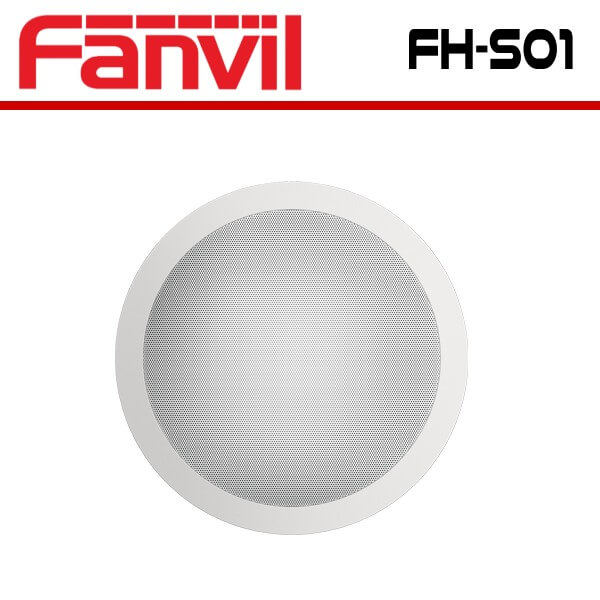

The Fanvil FH-S01 Dubai SIP Ceiling Speaker is an innovative communication device designed for use in commercial, educational, and healthcare settings. This SIP (Session Initiation Protocol) speaker enables audio communication over the internet, making it an ideal solution for communication and audio playback in modern, networked environments.

One of the key features of the Fanvil FH-S01 Dubai SIP Ceiling Speaker is its easy installation. The speaker can be installed in just a few minutes, making it an ideal solution for businesses and organizations that need to quickly and easily add audio communication capabilities to their networked environment. The speaker also features PoE (Power over Ethernet) technology, which means it can receive power and data over a single Ethernet cable, further simplifying installation and reducing the need for additional wiring.

The Fanvil FH-S01 Dubai SIP Ceiling Speaker offers high-quality audio playback, making it an ideal solution for music and audio playback in public spaces such as lobbies and waiting rooms. It also offers a built-in microphone for two-way audio communication, allowing for clear communication between staff and visitors or between healthcare professionals and patients.

Another key feature of the Fanvil FH-S01 Dubai SIP Ceiling Speaker is its compatibility with a wide range of SIP communication systems. This makes it a highly flexible solution that can be easily integrated into existing communication systems, allowing for seamless audio communication between different devices and locations.

The Fanvil FH-S01 Dubai SIP Ceiling Speaker also offers advanced audio features such as noise reduction and echo cancellation, ensuring clear audio communication even in noisy environments. It also features an adjustable volume control, allowing users to adjust the volume to their desired level.

In addition, the Fanvil FH-S01 Dubai SIP Ceiling Speaker offers a sleek and modern design that blends seamlessly into any environment. Its compact size and unobtrusive design make it an ideal solution for businesses and organizations that want to add audio communication capabilities without disrupting the aesthetic of their space.

Overall, the Fanvil FH-S01 Dubai SIP Ceiling Speaker is a highly versatile and reliable solution for audio communication and playback in modern, networked environments. Its easy installation, high-quality audio playback, and compatibility with a wide range of communication systems make it an ideal solution for businesses and organizations of all sizes.

Fanvil FH-S01 Specifications

Generic

• •  2 SIP lines
  •  Ceiling installation
  •  MP3 broadcasting
  •  10 multicast zones
  •  Talkback application
  •  Link with security alarm device
  •  PoE enabled
  •  Support DC power supply

Device Functions

• •  Auto-answering
  •  Network time synchronization
  •  Web page volume adjustment
  •  Dynamic multicast function
  •  Support recording (through server)
  •  Action URL / Active URI

Audio

•  Audio codecs: G.711A/U, G.729A/B, iLBC, G.723,G.726-32K,G.722, Opus
•  Speaker:
  •  Frequency response:100-20KHz
  •  Sensitivity:89dB±3dB 1m/1W
  •  Impedance:8Ω
  •  Audio Power: PoE/10W,12V/10W,18V/15W,24V/20W ; related to power supply voltage.
•  Mic:
  •  Omni-Directional
  •  Sensitivity:-36±3dB, impedance 2.2k ohm, bias voltage 2V

Network

•  10/100 Mbps
•  Network mode:IPv4/IPv6/IPv4&IPv6
•  IP Setting:Static IP / DHCP / PPPoE
•  VPN: L2TP / OpenVPN
•  VLAN
•  LLDP
•  QoS
• Protocols
•  SIP2.0 over UDP/TCP/TLS
•  RTP/RTCP/SRTP
•  STUN
•  DHCP
•  IPv6
•  PPPoE
•  L2TP
•  OpenVPN
•  SNTP
•  FTP/TFTP
•  HTTP/HTTPS
•  TR-069

Physical Specifications

•  DC port x1: DC power input
•  Port:2 Pin terminal socket
•  RJ45 port x1: connect the network
•  Power over Ethernet(IEEE 802.3af, class 0)
•  Short circuit input and output port x1(built in relay)
•  Relay:MAX DC30V/2A
•  Port:terminal socket
•  Blue LED x1:Power status
•  DC power input: DC 12~24V/2A
•  Working temperature: -20℃~ 50℃
•  Storage temperature: -30℃~ 60℃
•  Working humidity: 10~95%
•  Installation: Ceiling-mounted
•  Color: White
•  Device overall dimensions: 238.5mm x 238.5mm x 148.3mm
•  Device back box dimensions: 202.5mm x 202.5mm x 139mm
•  Gift box dimensions: 270mm x 270mm x 188mm
•  Outer CTN dimensions: 560mm x 283mm x 410mm(10 PCS)
