Fanvil i10 Dubai
Fanvil i10 Dubai - Image 2

Fanvil i10 Dubai

Fanvil i10 Dubai

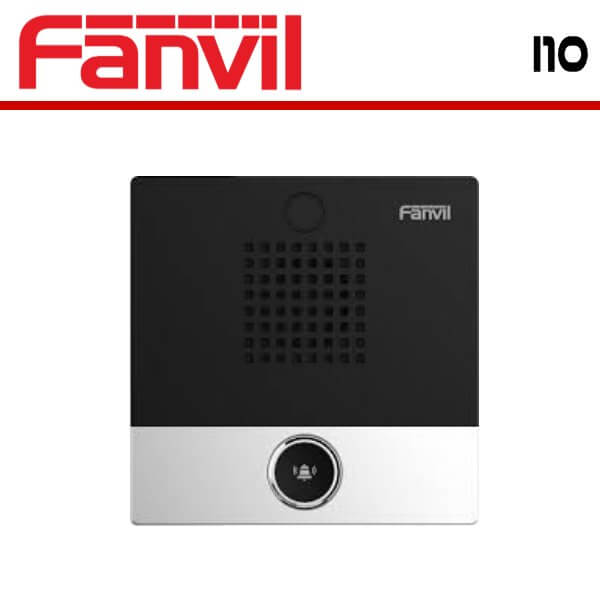

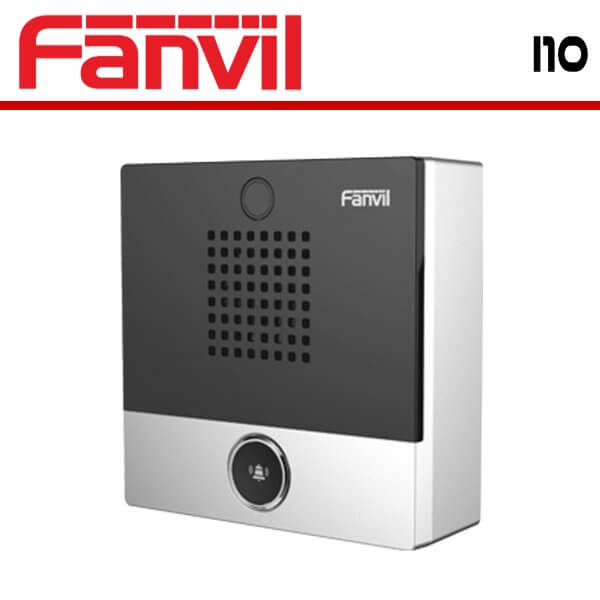

The Fanvil i10 Dubai SIP mini Intercom is a compact and affordable device designed for communication and security applications. It features a sleek and modern design that makes it ideal for indoor use.

Category:

Description

Fanvil i10 Dubai

The Fanvil i10 Dubai SIP mini Intercom is a compact and affordable device designed for communication and security applications. Its sleek and modern design makes it an ideal choice for indoor use in offices, hotels, apartments, and other similar locations.

The Fanvil i10 Dubai supports the Session Initiation Protocol (SIP), which is the industry standard for Voice over Internet Protocol (VoIP) communications. This means that the device can integrate seamlessly with most IP phone systems, making it an excellent choice for businesses and organizations that use IP phone systems.

The Fanvil i10 Dubai SIP mini Intercom features HD audio, which ensures clear and crisp communication. It also comes equipped with a built-in microphone and speaker, which provides an excellent audio experience for both the caller and the recipient.

One of the key advantages of the Fanvil i10 Dubai SIP mini Intercom is its compact size and easy installation. The device can be easily mounted on a wall or a flat surface, and its small size ensures that it does not take up too much space. The device also comes with a built-in PoE (Power over Ethernet) module, which eliminates the need for an external power supply, making installation even more straightforward.

The i10 also comes with a built-in RFID card reader, which allows for secure and convenient access control. This means that the device can be used to control access to restricted areas, such as offices or hotel rooms, ensuring that only authorized individuals are allowed entry.

In addition to its communication and access control capabilities, the Fanvil i10 Dubai SIP mini Intercom also has a range of additional features that make it a highly versatile device. For instance, it has a built-in relay output that can be used to control an electronic lock or gate. It also has a built-in light sensor that can be used to control the device’s brightness, ensuring that it is always visible in different lighting conditions.

The device can also be integrated with third-party software and hardware, allowing for even greater flexibility and customization. This means that it can be used in a wide range of applications, such as hotel room access control, visitor management systems, and office intercom systems.

In summary, the Fanvil i10 Dubai SIP mini Intercom is a highly versatile and affordable device that offers a range of features designed to meet the needs of communication and security applications. Its compact size, easy installation, and additional features, such as its built-in RFID card reader and relay output, make it an ideal choice for various applications in offices, hotels, and other similar locations.

Fanvil i10 Dubai Specifications

Generic

  • 2 SIP Lines
  • Auto answer
  • Intercom function
  • Intercom Function
  • Support customized DSS keys
  • Network Time Synchronization
  • Action URL / Active URL

Audio

  • Narrowband Codec: G.711a/u, G.729AB, iLBC
  • Wideband Codec: G.722, Opus
  • Duplex intercom with Acoustic Echo Canceller (AEC)
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer up to 300ms
  • DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Video (i10V)

  • Sensor: 1/4” color CMOS
  • 1 MegaPixel
  • Video coding: H.264
  • Resolution: 720P
  • Minimum illumination: 0.1Lux

Networking

  • Physical: 10/100 Mbps Ethernet
  • IP Mode: IPv4/IPv6/IPv4&IPv6
  • IP Configuration: Static / DHCP / PPPoE
  • Network access authority authentication: 802.1x
  • VPN: L2TP / OpenVPN
  • VLAN
  • LLDP
  • QoS

Protocols

  • SIP2.0 over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • LLDP
  • PPPoE
  • 802.1x
  • L2TP
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069

Physical Specifications

  • i10/i10V :1 DSS button (speed dial button)；i10D:2 DSS button
  • 1 RJ45 port
  • 1 short circuit input interface
  • 1 relay: NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
  • Power: DC12V/1A or POE
  • Housing material: ABS
  • Installation: Indoor installation
  • working temperature: -20 ~50 °C
  • Storage temperature: -20 ~ 50 °C
  • Relative humidity: 10% – 90%
  • Equipment Dimension: 88 x 88 x 31mm
  • Packing Dimension: 95x108x40mm
  • Outer CTN Dimension: 241x225x215mm (20 PCS)
  • Equipment weight: 135g
