Fanvil i10D Dubai

Fanvil i10D Dubai

The Fanvil i10D Dubai SIP mini Intercom is a compact and robust device designed for communication and access control applications in indoor or outdoor settings. The device also has a built-in relay output and light sensor.

Category:

Description

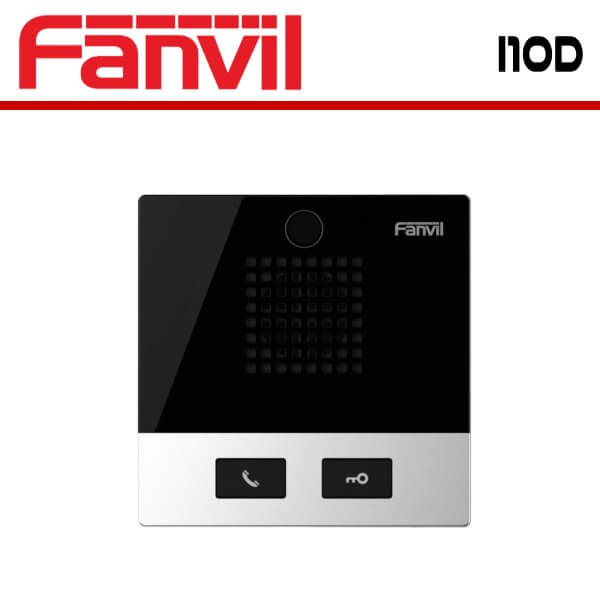

Fanvil i10D Dubai

The Fanvil i10D Dubai SIP mini Intercom is a compact and robust device designed for communication and access control applications in indoor or outdoor settings. It features a durable and weather-resistant design, making it ideal for areas with harsh weather conditions or high vandalism.

The Fanvil i10D Dubai supports the Session Initiation Protocol (SIP) and can integrate seamlessly with most IP phone systems, making it easy to incorporate into existing communication systems. This feature allows the device to be used for various applications, including door entry systems, intercom systems, and security systems.

The Fanvil i10D Dubai SIP mini Intercom comes equipped with an HD audio system that ensures clear and high-quality communication. The device also features a built-in microphone and speaker, providing an excellent audio experience for both the caller and the recipient.

One of the key advantages of the Fanvil i10D Dubai SIP mini Intercom is its built-in camera, which enables video calling and monitoring. The camera has a resolution of up to 720p, ensuring that images are clear and detailed. This feature makes the Fanvil i10D Dubai ideal for applications where visual identification is required, such as access control or visitor management systems.

The device also features a built-in RFID card reader, providing secure and convenient access control. This feature means that the device can be used to control access to restricted areas, ensuring that only authorized individuals are allowed entry.

In addition to its communication and access control capabilities, the Fanvil i10D SIP mini Intercom also has a range of additional features that make it a highly versatile device. For instance, it has a built-in relay output that can be used to control an electronic lock or gate. It also has a built-in light sensor that can be used to control the device’s brightness, ensuring that it is always visible in different lighting conditions.

The device can also be integrated with third-party software and hardware, allowing for even greater flexibility and customization. This feature means that the Fanvil i10D Dubai SIP mini Intercom can be used in a wide range of applications, such as hotel room access control, visitor management systems, and office intercom systems.

In summary, the Fanvil i10D Dubai SIP mini Intercom is a highly versatile and robust device that offers a range of features designed to meet the needs of communication and access control applications in harsh environments. Its built-in camera, RFID card reader, and additional features, such as its built-in relay output and light sensor, make it an ideal choice for various applications, including indoor and outdoor settings.



Fanvil i10D Specifications

Generic

  • 2 SIP Lines
  • Auto answer
  • Intercom function
  • Intercom Function
  • Support customized DSS keys
  • Network Time Synchronization
  • Action URL / Active URL

Audio

  • Narrowband Codec: G.711a/u, G.729AB, iLBC
  • Wideband Codec: G.722, Opus
  • Duplex intercom with Acoustic Echo Canceller (AEC)
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer up to 300ms
  • DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Video (i10V)

  • Sensor: 1/4” color CMOS
  • 1 MegaPixel
  • Video coding: H.264
  • Resolution: 720P
  • Minimum illumination: 0.1Lux

Networking

  • Physical: 10/100 Mbps Ethernet
  • IP Mode: IPv4/IPv6/IPv4&IPv6
  • IP Configuration: Static / DHCP / PPPoE
  • Network access authority authentication: 802.1x
  • VPN: L2TP / OpenVPN
  • VLAN
  • LLDP
  • QoS

Protocols

  • SIP2.0 over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • LLDP
  • PPPoE
  • 802.1x
  • L2TP
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069

Physical Specifications

  • i10/i10V :1 DSS button (speed dial button)；i10D:2 DSS button
  • 1 RJ45 port
  • 1 short circuit input interface
  • 1 relay: NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
  • Power: DC12V/1A or POE
  • Housing material: ABS
  • Installation: Indoor installation
  • working temperature: -20 ~50 °C
  • Storage temperature: -20 ~ 50 °C
  • Relative humidity: 10% – 90%
  • Equipment Dimension: 88 x 88 x 31mm
  • Packing Dimension: 95x108x40mm
  • Outer CTN Dimension: 241x225x215mm (20 PCS)
  • Equipment weight: 135g
