Description
Fanvil i20S Dubai

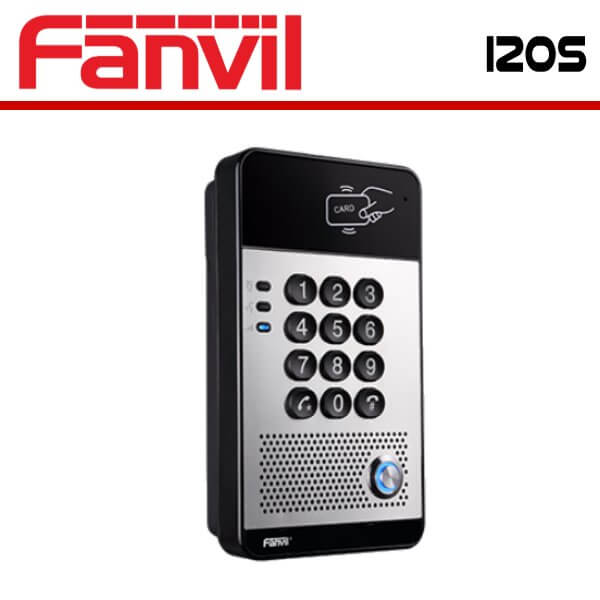

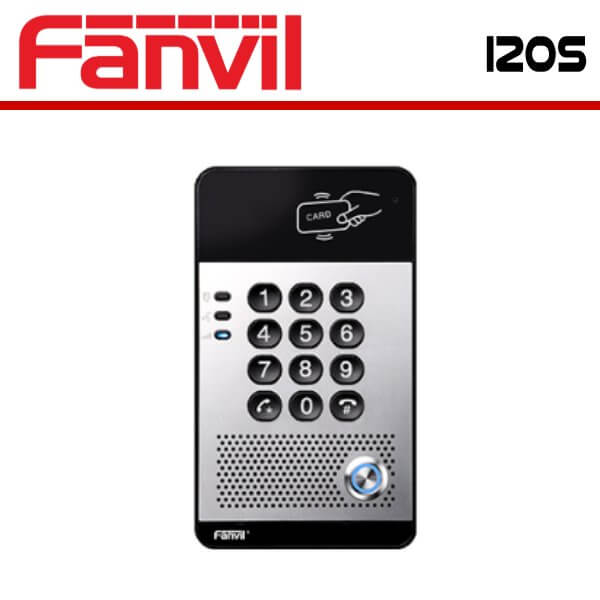

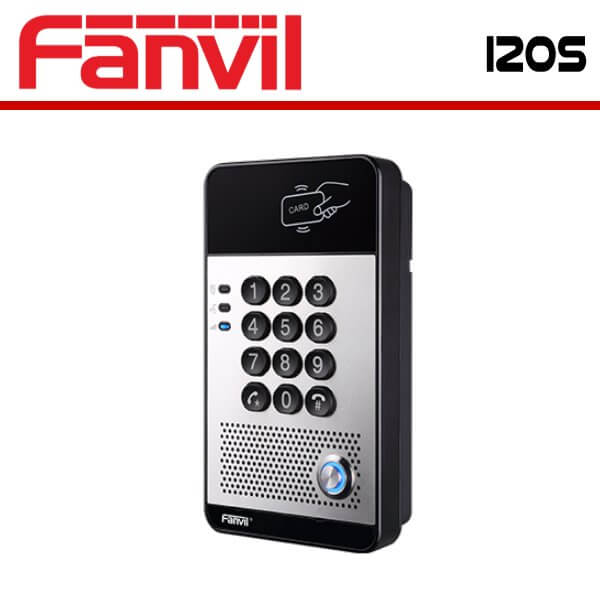

The Fanvil i20S Dubai Audio Door Phone is an entry-level communication device designed for secure access control in indoor and outdoor applications. Fanvil i20S is an ideal solution for small businesses or residential buildings looking to enhance their security measures.
The Fanvil i20S features a built-in speaker and microphone, which allows for clear two-way communication between the user and visitors. This means that users can communicate with visitors from a safe and secure location, without the need to physically open the door. The Fanvil i20S has a simple and easy-to-use interface, making Fanvil i20S suitable for users of all technical abilities.
In addition, the Fanvil i20S Dubai Audio Door Phone has an optional RFID card reader, which allows for secure access control. Users can grant access to authorized personnel or visitors, while restricting access to unauthorized individuals. The Fanvil i20S supports up to 5,000 RFID cards, providing flexibility and scalability for a wide range of applications.
The Fanvil i20S has a durable and weatherproof design, making it suitable for use in a wide range of environments. Fanvil i20S is resistant to dust, water, and other environmental factors, ensuring reliable operation even in harsh conditions. The Fanvil i20S can be easily mounted on a wall or flush-mounted, making installation quick and easy.
The Fanvil i20S Dubai Audio Door Phone is designed to work with a variety of IP phone systems, allowing for seamless communication with a wide range of devices. It supports the SIP protocol, which means Fanvil i20S can be easily integrated with most VoIP phone systems. This allows users to answer the door and communicate with visitors from anywhere, using a variety of devices, such as smartphones, tablets, and computers.
The Fanvil i20S is also easy to set up and configure, thanks to its intuitive web interface. It can be powered through PoE (Power over Ethernet) or an external power supply, making installation quick and easy. The Fanvil i20S also supports multiple languages, making it a suitable solution for a wide range of users around the world.
Overall, the Fanvil i20S Dubai Audio Door Phone is an affordable and reliable solution for secure access control in indoor and outdoor applications. Its durable and weatherproof design, two-way communication, and optional RFID card reader make it a versatile solution for a variety of environments.
Fanvil i20S Specifications
Generic
2 SIP Lines
POE Enabled
Full-duplex speakerphone (HF)
Intelligent DSS Keys (Speed Dial)
Wall-mount installation
Integrated RFID Card reader
Integrated indoor switchgear
Integrated one Relay
External Power Supply
All-in-One: Access Control, Intercom and Broadcasting
Access control-by call, code, RFID card
Industrial Standard Certifications: IP54, CE/FCC
Call Features
Intercom
Speed Dial
Auto-Answering (per line)
Voice Message (on server)
Local 3-way Conference
Hot Line
Phone Features
Open Door Log
Access Table (500 entries)
Support RFID Card issues (500 entries)
Programmable DSS/Soft keys
Network Time Synchronization
Action URL / Active URI
Audio
Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
Wideband CODEC: G.722
Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /Background Noise Estimation (BNE)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer up to 300ms
DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO
Networking
802.3af PoE
IP Configuration: Static / DHCP / PPPoE
Network Access Control: 802.1x
VPN: L2TP / PPTP / IPSec
VLAN: 802.1p/q
QoS: DSCP
Protocols
SIP2.0 over UDP / TCP /TLS
RTP / RTCP /SRTP
STUN
DHCP
PPPoE
802.1x
Open VPN
SNTP
FTP / TFTP
HTTP / HTTPS
TR069
Physical Specifications
1 DSS Key
Numeric keypad
WAN: 10/100BASE-Tx, Auto-MDIX，RJ-45
PoE: 802.3af(Class 3 – 6.49~12.95W)
Passive Switch(short-circuit output): NC/NO Contacts, MAX 30V/1A AC/DC
Active Switch output: 12V/700mA DC
RFID/IC Card: EM4100 (125KHz)—-Standard MIFARE ONE (13.56MHz) —-Custom-made
1 Indoor door interface
Main Chipset: Broadcom
Speaker: 4Ω/3W
Cables: CAT5 or better
Power Supply: 12V/1A DC or PoE
Shell material: Metal panel, ABS sump
Protection level: IP54
Working Temperature: -10~60℃
Storage Temperature: -40~70℃
Working Humidity: 10~90%
Device Dimension: 160 x 93 x 35mm
Package size: 178 x 104 x 55mm
Device Weight: 300g
Gross weight: 420g
