Description

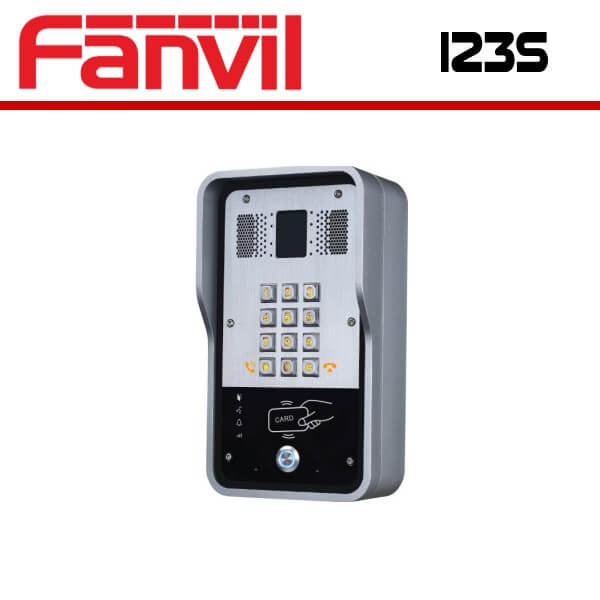

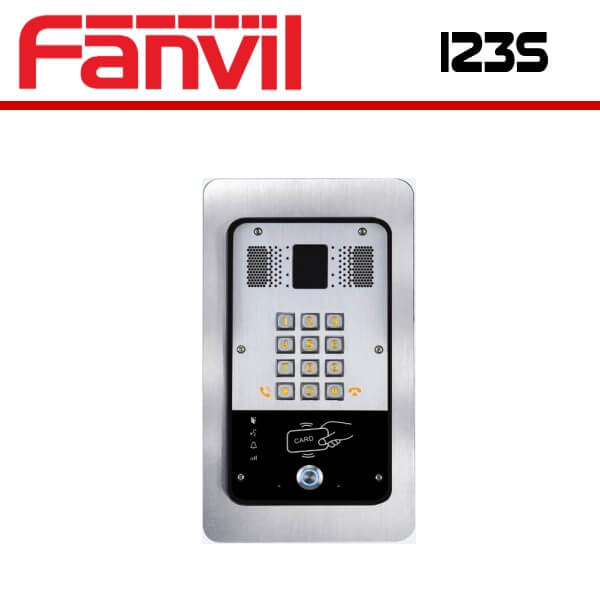

Fanvil i23S Dubai

The Fanvil i23S Dubai Audio Door Phone is a communication device designed for secure access control in indoor and outdoor applications. This device is equipped with a built-in speaker and microphone, allowing for clear two-way communication with visitors. This means that users can communicate with visitors from a safe and secure location, without the need to physically open the door.

The device has a durable and weatherproof design, making it suitable for use in a wide range of environments. It is resistant to dust, water, and other environmental factors, ensuring reliable operation even in harsh conditions. The device can be easily mounted on a wall or flush-mounted, making installation quick and easy.

The Fanvil i23S Dubai Audio Door Phone also features an optional RFID card reader, allowing for secure access control. This means that users can grant access to authorized personnel or visitors, while restricting access to unauthorized individuals. The device supports up to 5,000 RFID cards, providing flexibility and scalability for a wide range of applications.

The device is designed to work with a variety of IP phone systems, allowing for seamless communication with a wide range of devices. It supports the SIP protocol, which means it can be easily integrated with most VoIP phone systems. This allows users to answer the door and communicate with visitors from anywhere, using a variety of devices, such as smartphones, tablets, and computers.

In addition, the Fanvil i23S Dubai Audio Door Phone is easy to set up and configure, thanks to its intuitive web interface. It can be powered through PoE (Power over Ethernet) or an external power supply, making installation quick and easy. The device also supports multiple languages, making it a suitable solution for a wide range of users around the world.

Overall, the Fanvil i23S Dubai Audio Door Phone is an ideal solution for secure access control in indoor and outdoor applications. Its durable and weatherproof design, two-way communication, and optional RFID card reader make it a reliable and efficient solution for any environment.

Fanvil i23S Specifications

Access control function

• Two SIP lines, support SIP 2.0 (RFC3261) and related RFC
• POE Enabled
• Duplex hands-free (HF)
• Default Auto Answer
• Open the door operation: DTMF, password, RFID/IC card, Indoor

Switch

• Support 200,000 door open records
• Support 5000 remote access list
• Support 5000 RFID/IC cards
• Support electric lock internal or external power supply options
• Support customized DSS keys
• Network Time Synchronization
• Action URL / Active URI remote control

Audio

• Narrowband speech codec: G711a/u, G723. 1. G.726-32K,G. 729AB
• Broadband speech codec: G. 722
• Duplex intercom with Acoustic Echo Canceller (AEC)-96MS tail-length
• DTMF: In-band, out-of-band DTMF(RFC2833)/SIP Info

Networking/Protocols

• Support POE
• Primary and secondary DNS servers are supported
• Support RTSP
• Support SNTP client
• Support VPN L2TP/ OpenVPN
• Support SRTP
• Support HTTP/HTTPS web pages
• Support Qos: 802. 1p/q, DSCP
• Support MD5 authentication
• Support Web Filter
• DHCP/static/PPPOE
• Support STUN

Physical Specifications

• 1 DSS button (speed dial button)
• 5 indicator lights (including hot-key backlight)
• 12 Numeric keypad (with backlight)
• 1 indoor switch
• 1 relay: MAX DC30V / 1A, AC125V / 0.5A
• Active switching output: 12V / 500mA DC
• RFID/IC Card: ID (EM4100,125KHz) & IC(MIFARE ONE,13.56MHz)
• Microphone: -38dB
• Speaker: 4Ω / 3W
• WAN port: RJ-45, 10 / 100M adaptive
• Power supply: 12V ± 15% / 1A DC or POE
• Network cable: CAT5 or better
• Shell Material: Aluminum Cover and Cast-Aluminum back case
• Installation method: Wall-mounting or Flush-mounting
• Storage Temperature:-40~70℃
• Working Humidity: 10~90%
• Protection level: IP65 and IK10
• Overall Dimension: 223 x 130 x 74mm (W x H x L)
• Gift Box Dimensions: 310 x 175 x 115mm
• Outer CTN Dimensions: 370 x 370 x 330mm(6 PCS)
• Package Weight:1800g
