Description

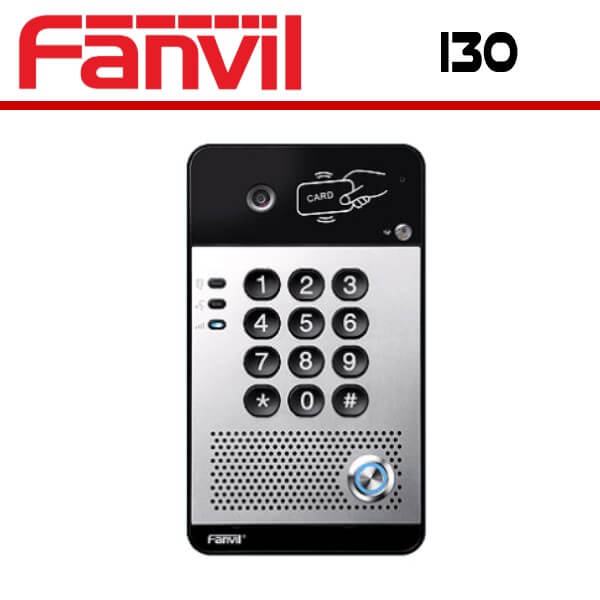

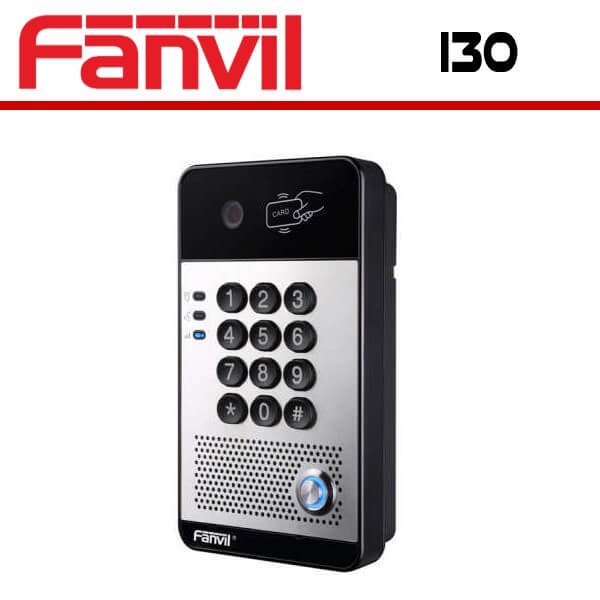

Fanvil i30 Dubai
The Fanvil i30 Dubai SIP Video Door Phone is a durable and reliable communication device designed for secure access control and remote monitoring in outdoor applications. This device features a high-definition camera that captures clear video and images, allowing for accurate identification of visitors or intruders.
The Fanvil i30 Dubai SIP Video Door Phone is designed for integration with a variety of IP phone systems, allowing for seamless communication with a wide range of devices. The device supports the SIP protocol, which means it can be easily integrated with most VoIP phone systems. This allows users to answer the door and communicate with visitors from anywhere, using a variety of devices, such as smartphones, tablets, and computers.
The Fanvil i30 Dubai SIP Video Door Phone is equipped with a built-in speaker and microphone, allowing for clear and efficient communication with visitors. This means that users can communicate with visitors from a safe and secure location, without the need to physically open the door.
The device also has additional security features, such as an RFID card reader and tamper switch. The RFID card reader allows users to grant access to authorized personnel or visitors, while the tamper switch provides added security against unauthorized access or vandalism.
The Fanvil i30 SIP Video Door Phone is built to withstand outdoor conditions, with a durable aluminum alloy casing and an IP65 weatherproof rating. This means that it is resistant to dust, water, and other environmental factors, making it a reliable solution for any outdoor application.
The device can be powered through PoE (Power over Ethernet) or an external power supply, making installation quick and easy. The device is also easy to set up and configure, thanks to its intuitive web interface.
In addition, the Fanvil i30 Dubai SIP Video Door Phone supports multiple languages, making it a suitable solution for a wide range of users around the world. The device also has a small footprint, making it easy to install in small spaces or in locations where space is limited.
Overall, the Fanvil i30 Dubai SIP Video Door Phone is an ideal solution for secure access control and remote monitoring in outdoor applications. Its high-quality camera, two-way communication, and additional security features make it a reliable and efficient solution for any environment.
Fanvil i30 Specifications
Access control function
- Two SIP lines, support SIP 2.0 (RFC3261) and related RFC
- Full-duplex handsfree (HF)
- Default Auto Answer
- Open the door operation: DTMF,password, RFID card, switch
- Support 200,000 door open records
- Support 2000 remote access list
- Support2000 RFID cards
- Support electric lock internal or external power supply options
- Support customized DSS keys
- Network Time Synchronization
- Action URL / Active URI remote control
Audio
- Narrowband speech codec: G.711a / u,G.723.1, G.726-32K, G.729AB
- Broadband speech codec: G.722
- Full Duplex Echo Cancellation (AEC)
- DTMF: In-band, out-of-band DTMF (RFC2833) / SIP Info
Video
- Sensor: 1/4 “color CMOS
- Pixels: 1 million
- Video codec: H.264
- Resolution: The main stream1280 *720 Sub-stream 640*360, 352*288, 32*240
- Viewing angle: 110 ° (H), 95 ° (V)
- Minimum illumination: 1Lux, temporarily does not support infrared lighting
Networking/ Protocols
- Support PoE (802.3af)
- Primary and secondary DNS servers are supported
- Support VLAN
- Support SNTP client
- Support VPN L2TP / openVPN
- Support SRTP
- Support HTTP / HTTPS web pages
- Support Qos: 802.1p / q, DSCP
- Support MD5 authentication
- Support Web Filter
- DHCP / static / PPPoE
- Support STUN
Physical Specifications
- 1 DSS button (speed dial button)
- 4 indicator lights (including hot-key backlight)
- Numeric keypad
- 1 indoor switch
- 1 relay: MAX DC30V / 1A, AC125V / 0.5A
- Active switching output: 12V / 700mA DC
- RFID reader: ID (EM4100) standard type IC(MIFARE ONE) custom type
- RFID card number output: positive sequence output 8H10D
- Microphone: -38dB
- Speaker: 4Ω / 3W
- WAN port: RJ-45, 10 / 100M adaptive
- Power supply: 12V ± 15% / 1A DC or POE
- PoE: 802.3af (Class 3 – 6.49 to 12.95W)
- Standby power: 2.76W, 12V / 230mA
- Network cable: CAT5 or better
- Shell material: metal surface, ABS bottom shell
- Installation: wall-mounted installation
- Operating temperature: -20 ~ 60 ℃
- Storage temperature: -40 ~ 70 ℃
- Relative humidity: 10 ~ 90%
- Protection class: IP65
- Equipment size: 160x93x35mm
- Packing size: 178x104x55mm
- Equipment weight: 330g
- Package weight: 450g
