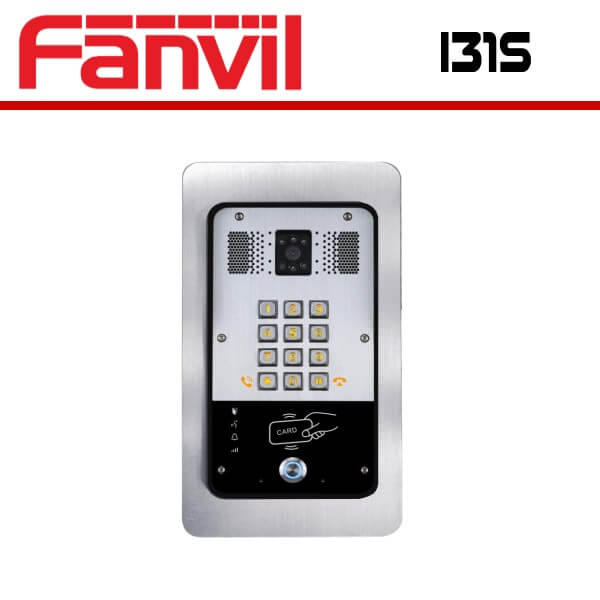

Fanvil i31s Dubai

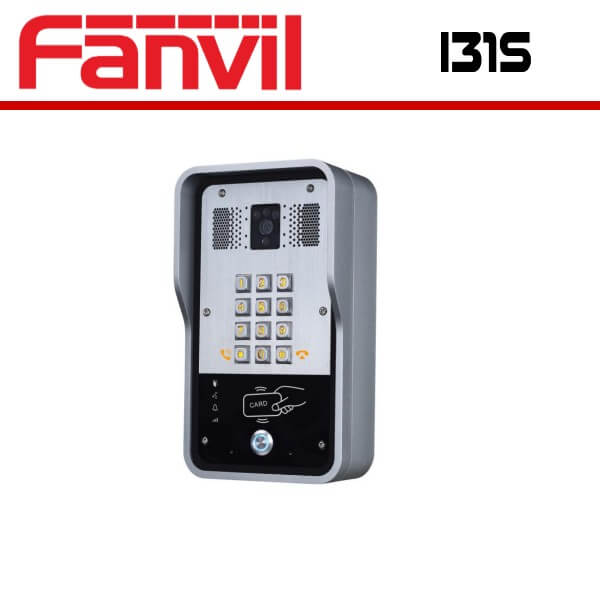

Fanvil i31s Dubai - Image 2

Fanvil i31s Dubai

Fanvil i31s Dubai

Til i31s SIP Video Door Phone is a communication device designed for secure access control and remote monitoring.The Fanv a built-in speaker and microphone for two-way communication, and supports SIP protocol for integration with a variety of IP phone systems.

Category:

Description

Fanvil i31s Dubai

The Fanvil i31s Dubai SIP Video Door Phone is a compact and reliable communication device designed for secure access control and remote monitoring in indoor applications. This device features a high-definition camera that captures clear video and images, allowing for accurate identification of visitors or intruders.

The Fanvil i31s Dubai SIP Video Door Phone is designed for integration with a variety of IP phone systems, allowing for seamless communication with a wide range of devices. The device supports the SIP protocol, which means it can be easily integrated with most VoIP phone systems. This allows users to answer the door and communicate with visitors from anywhere, using a variety of devices, such as smartphones, tablets, and computers.

The Fanvil i31s Dubai SIP Video Door Phone is equipped with a built-in speaker and microphone, allowing for clear and efficient communication with visitors. This means that users can communicate with visitors from a safe and secure location, without the need to physically open the door.

The device also has additional security features, such as an RFID card reader and tamper switch. The RFID card reader allows users to grant access to authorized personnel or visitors, while the tamper switch provides added security against unauthorized access or vandalism.

The Fanvil i31s Dubai SIP Video Door Phone can be powered through PoE (Power over Ethernet) or an external power supply, making installation quick and easy. The device is also easy to set up and configure, thanks to its intuitive web interface.

In addition, the Fanvil i31s Dubai SIP Video Door Phone supports multiple languages, making it a suitable solution for a wide range of users around the world. The device also has a small footprint, making it easy to install in small spaces or in locations where space is limited.

Overall, the Fanvil i31s Dubai SIP Video Door Phone is an ideal solution for secure access control and remote monitoring in indoor applications. Its high-quality camera, two-way communication, and additional security features make it a reliable and efficient solution for any environment.

Fanvil i31s Specifications

Access control function

  • Two SIP lines, support SIP 2.0 (RFC3261) and related RFC
  • POE Enabled
  • Full-duplex handsfree (HF)
  • Default Auto Answer
  • Open the door operation: DTMF, password, RFID card, switch
  • Support 200,000 door open records
  • Support 1000 remote access list
  • Support 1000 RFID cards
  • Support electric lock internal or external power supply options
  • Support customized DSS keys
  • Network Time Synchronization
  • Action URL / Active URI remote control

Audio

  • Narrowband speech codec: G.711a / u, G.723.1, G.726-32K, G.729AB
  • Broadband speech codec: G.722
  • Full Duplex Echo Cancellation (AEC) – 96ms tail-length
  • DTMF: In-band, out-of-band DTMF (RFC2833) / SIP Info

Video

  •  Sensor: 1/3 “color CMOS
  • Pixels: CIF,QCIF,VGA,4CIF,960P(HD)
  • Video codec: H.264
  • Resolution: The main stream 1280 *920,1280 *720 Sub-stream: 704*576(D1)
  • Viewing angle: 115°(H), 87°(V)
  • Minimum illumination: color 0.01Lux,black and white 0.001Lux

Networking/ Protocols

  • Support PoE (802.3af)
  • Primary and secondary DNS servers are supported
  • Support RTSP
  • Support SNTP client
  • Support VPN L2TP / openVPN
  • Support SRTP
  • Support HTTP / HTTPS web pages
  • Support Qos: 802.1p / q, DSCP
  • Support MD5 authentication
  • Support Web Filter
  • DHCP / static / PPPoE
  • Support STUN

Physical Specifications

  • 1 DSS button (speed dial button)
  • 5 indicator lights (including hot-key backlight)
  • Numeric keypad
  • 1 indoor switch
  • 1 relay: MAX DC30V / 1A, AC125V / 0.5A
  • Active switching output: 12V / 650mA DC
  • Camera: 130W CMOS /IR-CUT
  • RFID reader: ID (EM4100) ,IC(MIFARE ONE)
  • Microphone: -38dB
  • Speaker: 4Ω / 3W
  • WAN port: RJ-45, 10 / 100M adaptive
  • Power supply: 12V ± 15% / 1A DC or POE
  • PoE: 802.3af (Class 3 – 6.49 to 12.95W)
  • Network cable: CAT5 or better
  • Shell Material: Aluminum Cover and Cast-Aluminum back case
  • Installation method: Wall-mountting or Flush-mounting
  • Storage Temperature:-40~70℃
  • Working Humidity: 10~90%
  • Protection level: IP65 and IK10
  • Overall Dimension: 223 x 130 x 74mm (W x H x L)
  • Gift Box Dimensions: 310 x 175 x 115mm
  • Outer CTN Dimensions: 370 x 370 x 330mm(6 PCS)
  • Package Weight:1800g
