Description

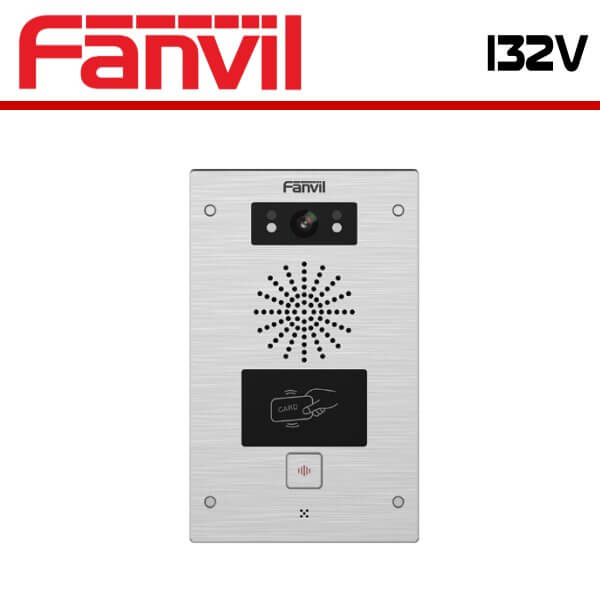

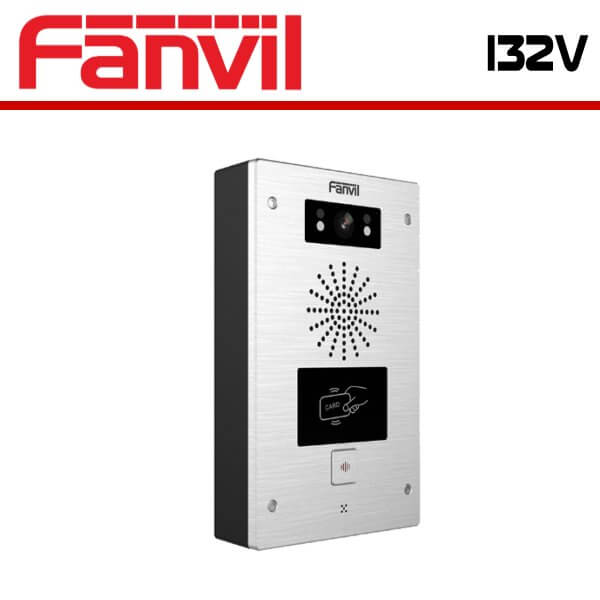

Fanvil i32V Dubai

The Fanvil i32V Dubai SIP Video Door Phone is a compact yet powerful communication device designed for secure access control and remote monitoring in indoor applications. This device features a high-definition camera that captures clear video and images, allowing for accurate identification of visitors or intruders.

The Fanvil i32V Dubai SIP Video Door Phone is designed for integration with a variety of IP phone systems, allowing for seamless communication with a wide range of devices. The device supports the SIP protocol, which means it can be easily integrated with most VoIP phone systems. This allows users to answer the door and communicate with visitors from anywhere, using a variety of devices, such as smartphones, tablets, and computers.

The Fanvil i32V Dubai SIP Video Door Phone is equipped with a built-in speaker and microphone, allowing for clear and efficient communication with visitors. This means that users can communicate with visitors from a safe and secure location, without the need to physically open the door.

The Fanvil i32V Dubai SIP Video Door Phone also comes with additional security features, such as an RFID card reader and tamper switch. The RFID card reader allows users to grant access to authorized personnel or visitors, while the tamper switch provides added security against unauthorized access or vandalism.

The device can be powered through PoE (Power over Ethernet) or an external power supply, making installation quick and easy. The device is also easy to set up and configure, thanks to its intuitive web interface.

In addition, the Fanvil i32V Dubai SIP Video Door Phone supports multiple languages, making it a suitable solution for a wide range of users around the world. The device also has a small footprint, making it easy to install in small spaces or in locations where space is limited.

Overall, the Fanvil i32V Dubai SIP Video Door Phone is an ideal solution for secure access control and remote monitoring in indoor applications. Its high-quality camera, two-way communication, and additional security features make it a reliable and efficient solution for any environment.

Fanvil i32V Dubai Specifications

Generic

2 SIP Lines
Duplex hands-free
Intelligent DSS Keys (Speed Dial/intercom etc)
Auto answer
Intercom function
Industrial Standard Certifications: IP65&IK10, CE/FCC

Access Control Function

Unlock door method: DTMF, RFID/IC card, indoor switch, WEB page
Support 5000 Remote access list
Support 5000 RFID/IC cards
Support 200,000 door open records
Support electric lock internal or external power supply options
Dynamic multicast function
Support ONVIF
Support customized DSS keys
Network Time Synchronization
Action URL / Active URI

Audio

Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB
Wideband Codec: G.722
Duplex intercom with Acoustic Echo Canceller (AEC) – Hands-free Mode,96ms tail-length
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /Background Noise Estimation (BNE)
Packet Loss Concealment (PLC)
Dynamic Adaptive litter Buffer up to 300ms
DTMF: In-band, Out of Band DTMF (RFC2833) / SIP INFO

Video

Sensor: 1/2.7” color CMOS
2 Megapixels
Video Code: H.264
Resolution: main stream 1280×720@25fps Sub-stream 704×576(D1)@25fps
Viewing angle: 112° (H), 84° (V)
Minimum illumination: 0.1Lux, support for infrared illumination

Networking

10/100 Mbps
IP Configuration: Static / DHCP / PPPoE
Network access authority authentication: 802.1x
VPN: L2TP / OpenVPN
LLDP

Protocols

SIP2.0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
LLDP
PPPoE
802.1x
L2TP
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069

Physical Specifications

1 DSS button (speed dial button)
1 RJ45 port
1 Wiegand port
1 audio output interface
1 recording output interface
2 embedded short circuit input interface
2 relays: MAX DC30V / 2A, AC125V / 0.5A
Active switching output: 12V / 500mA DC(only 1 relay support)
2 door magnetic detection interface
1 tamper alarm switch
RFID reader: ID (EM4100,125KHz) & IC(MIFARE ONE,13.56MHz)
Power: DC12V/1A or PoE
Housing material: aluminum alloy shell
Protection level:IP65 and IK10
Installation: Wall-mounting
Working temperature: -40 ~ 70 °C
Storage temperature: -40 ~ 70 °C
Relative humidity: 10% – 90%
Equipment Dimension: 195x120x34mm
Packing Dimension: 260x165x62mm
Outer CTN Dimension: 348x328x280mm(10 PCS)
Equipment weight: 1015g
