Fanvil i33VF Dubai
Fanvil i33VF Dubai - Image 2
Fanvil i33VF Dubai - Image 3

Fanvil i33VF Dubai

Fanvil i33VF Dubai

The Fanvil i33VF Dubai SIP Video Door Phone is a communication device designed for secure access control and remote monitoring. It features a high-definition camera that captures video and images, a built-in speaker and microphone for two-way communication.

Category:

Description

Fanvil i33VF Dubai

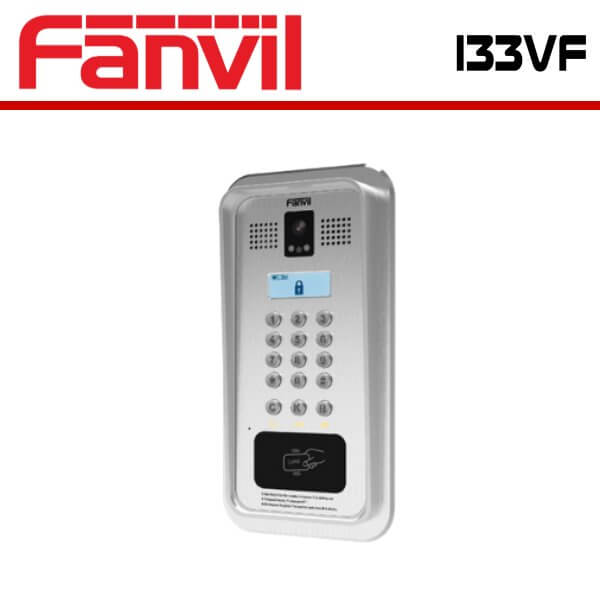

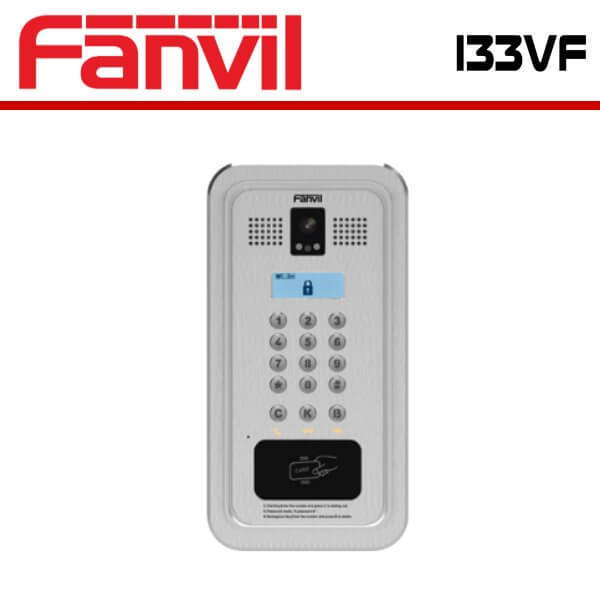

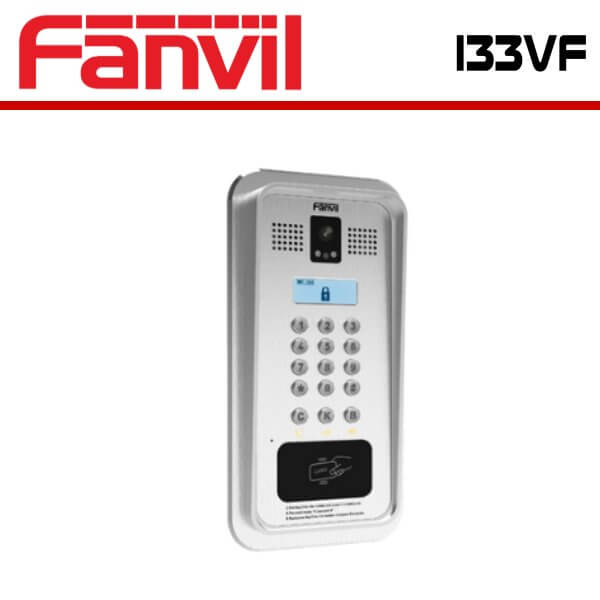

The Fanvil i33VF Dubai SIP Video Door Phone is a high-quality communication device that is designed to provide secure access control and remote monitoring for both residential and commercial applications. This device features a high-definition camera that captures high-quality video and images, allowing for accurate identification of visitors or intruders.

The Fanvil i33VF Dubai SIP Video Door Phone is designed for integration with a variety of IP phone systems, allowing for seamless communication with a wide range of devices. The device supports the SIP protocol, which means it can be easily integrated with most VoIP phone systems. This allows users to answer the door and communicate with visitors from anywhere, using a variety of devices, such as smartphones, tablets, and computers.

The Fanvil i33VF Dubai SIP Video Door Phone is rated IP65, which means it is suitable for outdoor use, even in harsh weather conditions. The device is built to withstand rain, dust, and extreme temperatures, ensuring that it operates reliably in all environments. This makes it an ideal solution for outdoor applications such as gated communities, apartment buildings, and commercial buildings.

One of the key features of the Fanvil i33VF Dubai SIP Video Door Phone is its ability to provide two-way communication. The device is equipped with a built-in speaker and microphone, allowing for clear and efficient communication with visitors. This means that users can communicate with visitors from a safe and secure location, without the need to physically open the door.

The Fanvil i33VF Dubai SIP Video Door Phone also comes with additional security features, such as an RFID card reader, alarm input, and tamper switch. The RFID card reader allows users to grant access to authorized personnel or visitors, while the alarm input and tamper switch provide added security against unauthorized access or vandalism.

The device can be powered through PoE (Power over Ethernet) or an external power supply, making installation quick and easy. The device is also easy to set up and configure, thanks to its intuitive web interface.

In summary, the Fanvil i33VF Dubai SIP Video Door Phone is an ideal solution for secure access control and remote monitoring in both residential and commercial applications. Its high-quality camera, two-way communication, and additional security features make it a reliable and efficient solution for any environment.

Fanvil i33VF Specifications

Generic

  • 2 SIP Lines, support SIP 2.0 (RFC3261) and related RFC
  • Duplex handsfree
  • Default auto answer
  • Intercom function
  • Industrial Standard Certifications: IP65&IK10, CE/FCC

Access Control Function

  • Unlock door method: DTMF, password, RFID/IC card, indoor switch, WEB page
  • Support 5000 Remote access list
  • Support 5000 RFID/IC cards
  • Support 200,000 door open records
  • Support electric lock internal or external power supply options
  • Auto multicast function
  • Support ONVIF
  • Network Time Synchronization
  • Action URL / Active URI

Audio

  • Wideband ADC/DAC 16KHz Sampling
  • Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
  • Wideband CODEC: G.722
  • Duplex intercom with Acoustic Echo Canceller (AEC) – Hands-free Mode,96ms tail-length
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /Background Noise Estimation (BNE)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive litter Buffer up to 300ms
  • DTMF: In-band, Out of Band DTMF (RFC2833) / SIP INFO

Video

  • Sensor: 1/2.7” color CMOS
  • 2 megapixels
  • Video code: H.264
  • Resolution: main stream 1280×720@25fps Sub-stream 704×576(D1)@25fps
  • Viewing angle: 112° (H), 84° (V)
  • Minimum illumination: 0.1Lux, support for infrared illumination

Networking

  • Support PoE
  • Primary and secondary DNS servers are supported
  • Support RTSP
  • Support SNTP client
  • Support VPN L2TP / openVPN
  • Support SRTP
  • Support HTTP / HTTPS web pages
  • Support Qos: 802.1p / q, DSCP
  • DHCP / static / PPPoE
  • Support STUN

Protocols

  • SIP2.0 over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • LLDP
  • PPPoE
  • 802.1x
  • L2TP
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069

Physical Specifications

  • LCD Pixel: 128×48 dots
  • LCD Dimension: 64×30.5×5.2 mm
  • Keypad: 15 keys(with backlight)
  • 1 RJ45 port, 10/100M adaptive
  • 1Wiegandport
  • 1 audio output interface
  • 1 recording output interface
  • 2 relays: MAX DC30V / 2A, AC125V / 0.5A for door opener
  • Active switching output: 12V / 500mA DC(only 1 relay support)
  • 2 indoor switch
  • 2 door magnetic detection
  • 1 tamper alarm switch
  • Temperature controller power:12V/1A(external PSU)
  • RFID reader: ID (EM4100,125KHz) &IC(MIFARE ONE,13.56MHz)
  • Power: DC12V/1A or PoE
  • Housing material: aluminum alloy shell
  • Protection level:IP65 and IK10
  • Installation: Wall-mounting(i33V); Embedded in the door (i33VF)
  • Working temperature: -40 ~ 70 °C
  • Storage temperature: -40 ~ 70 °C
  • Relative humidity: 10% – 90%
  • Equipment Dimension: 295x142x62mm
  • Packing Dimension: 370x194x111mm
  • Outer CTN Dimension: 413x360x392mm(6 PCS)
  • Equipment weight: i33V : 2281g i33VF: 2193g
