Description

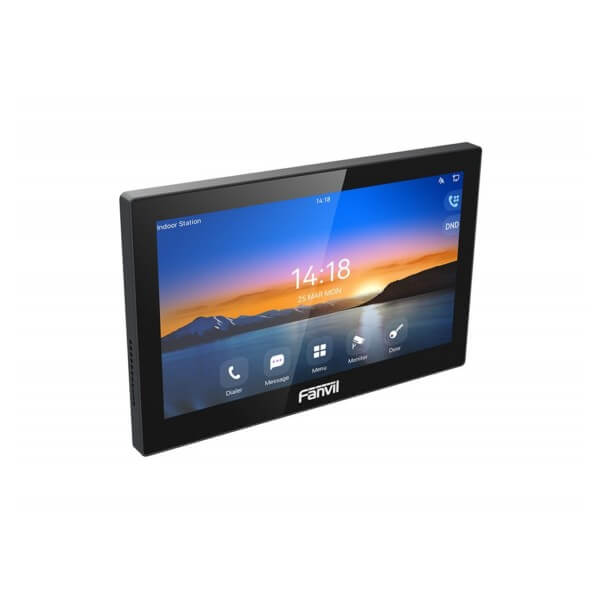

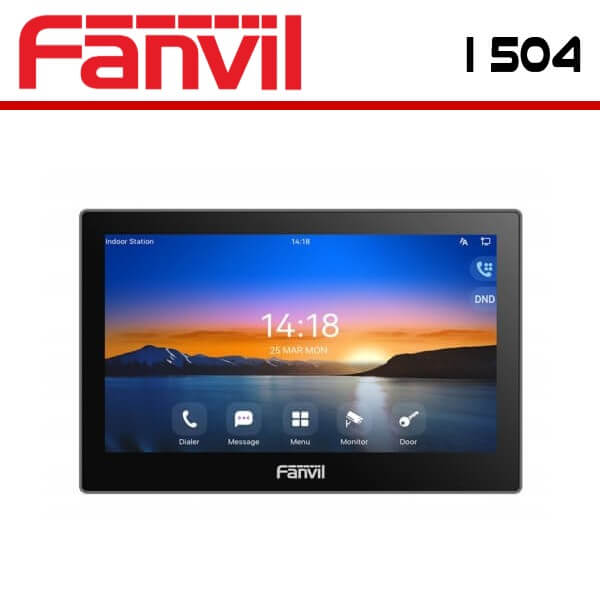

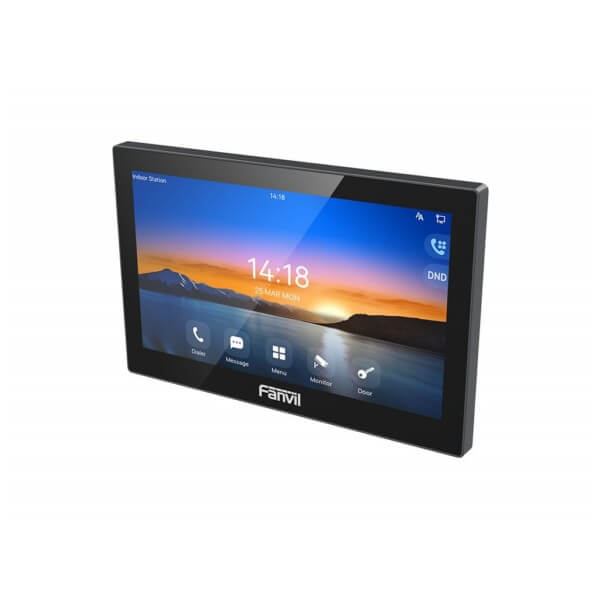

Fanvil i504 Intercom Dubai
The Fanvil i504 Dubai is a sophisticated 7-inch color touchscreen intercom system tailored to provide a dependable and user-friendly communication experience. With its industrial-grade power socket interface and eight alarm inputs, it serves as a versatile solution for various settings, including residential communities, villas, office buildings, and other environments requiring efficient visitor management and enhanced security. Its intuitive touchscreen interface allows users to communicate effortlessly with visitors, answer entry-point calls, and control door access remotely—all from a centralized indoor unit. This ensures seamless interaction while promoting safety and convenience for residents, homeowners, and office staff.
Designed for seamless integration with diverse security and intercom systems, the Fanvil i504 Dubai is an excellent choice for high-security environments such as gated communities, corporate offices, and luxury residential complexes. The system’s alarm inputs connect easily to additional security devices, enabling it to function as a comprehensive communication and control hub. With its advanced intercom and visitor management capabilities, the Fanvil i504 Dubai delivers unmatched security, convenience, and peace of mind, making it a go-to solution for those who demand reliability and ease of use.
Features:
- 7-inch color capacitive touch screen provides a more convenient user experience
- Check real-time video of third-party IP cameras and door phone to ensure security
- Rich interfaces facilitate the integration of various sensors, enabling comprehensive home security monitoring
- Powered by PoE or external source
- Built-in 2W speaker and AEC algorithm, it achieves high-quality two-way hands-free calling
Specification:
| System | Linux |
| Screen | 7-inch 1024×600 capacitive color touch screen |
| HD Audio | √ |
| Wideband Codecs | G.722, Opus |
| Speaker Power | 2W |
| Video Resolution | 1080P |
| Video Codec | H.264，H.265 (Optional) |
| ONVIF | √ |
| SIP Lines | 6 |
| Bluetooth | × |
| WiFi | Support 2.4G/5G WiFi(i504W) |
| Buttons | × |
| Alarm Input Interface | 8 |
| Short Circuit Output | 1 |
| Door Bell Interface | 1 |
| RS-485 Interface | 1 |
| TF Interface | × |
| USB Port | × |
| Network | 10/100 Mbps |
| PoE | √ |
| Installation Mode | Wall-mounted |
