Description

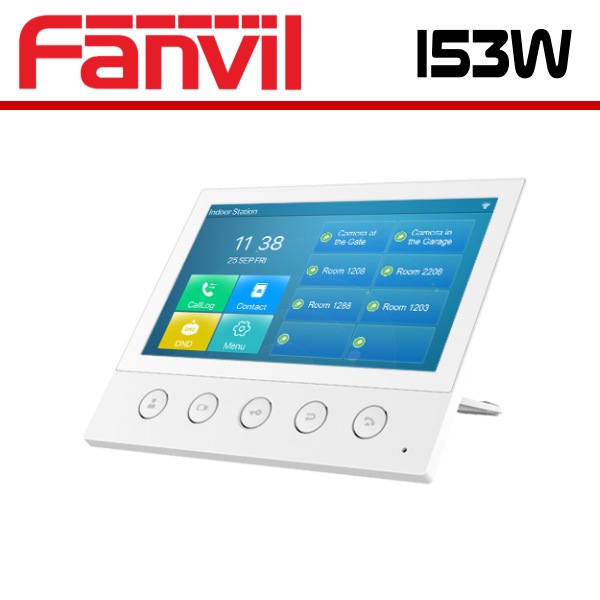

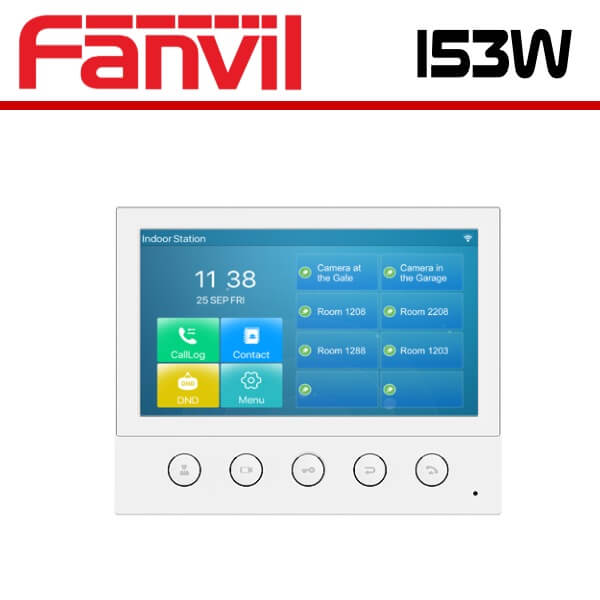

Fanvil i53w Dubai
The Fanvil i53w Dubai SIP Indoor Station is a compact and cost-effective intercom designed for indoor communication and access control applications. The device features an intuitive keypad and a 2.8-inch color display that provides an excellent visual experience, making it easy to use and navigate for users of all levels.
The Fanvil i53w Dubai supports the Session Initiation Protocol (SIP) and can integrate seamlessly with most IP phone systems, making it an ideal choice for various indoor access control and intercom applications. The device can be used in offices, hotels, residential buildings, and other similar settings.
One of the key features of the Fanvil i53w Dubai SIP Indoor Station is its ability to provide high-quality audio communication. The device is equipped with a high-quality speaker and a noise-reducing microphone that ensures clear and crisp audio during conversations. This feature is particularly useful in noisy environments where clear audio is critical to effective communication.
In addition to audio communication, the Fanvil i53w Dubai also has a built-in camera that allows for visual identification. The camera has a resolution of up to 720p, ensuring that images are clear and detailed. This feature makes the i53w ideal for applications where visual identification is required, such as access control or visitor management systems.
The device also features a built-in RFID card reader, providing secure and convenient access control. This feature means that the device can be used to control access to restricted areas, ensuring that only authorized individuals are allowed entry.
The Fanvil i53w Dubai SIP Indoor Station is designed with a sleek and modern design that blends well with most indoor environments. The device is built with a high-quality plastic body that ensures durability and reliability, making it ideal for indoor applications that require regular use.
The device also has a range of additional features that make it a highly versatile device. For instance, it has a built-in relay output that can be used to control an electronic lock or gate. It also has a built-in light sensor that can be used to control the device’s brightness, ensuring that it is always visible in different lighting conditions.
In summary, the Fanvil i53w Dubai SIP Indoor Station is a compact and cost-effective intercom that offers a range of features designed to meet the needs of indoor communication and access control applications. Its intuitive keypad, 2.8-inch color display, and built-in camera with face recognition technology make it an ideal choice for various applications, including offices, hotels, and residential buildings. Additionally, its built-in RFID card reader, relay output, and light sensor add to its versatility and make it an excellent choice for indoor access control and intercom applications.
Fanvil i53w Specifications
Generic
- 6 SIP Lines
- HD Voice
- PoE
- External Power Supply(Optional)
Display
- 1 x LCD: 7-inch 800×480 Color Touch Screen
Audio
- Wideband ADC/DAC 16KHz sampling
- Narrowband codec: G.711A/U, G.723.1,G.726-32K,G.729AB, iLBC
- Wideband codec: G.722,Opus
- Full-duplex hands-free speakerphone with AEC
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive Jitter Buffer
- DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO
- VQM voice quality monitoring
Video
- Hardware video decoding: H.264
- Video call resolution: QVGA / CIF / VGA / 4CIF / 720P / 1080P
Network
- 10/100 Mbps Ethernet
- IP Mode:IPv4/IPv6/IPv4&IPv6
- IP Configuration: Static / DHCP / PPPoE
- VPN: L2TP / OpenVPN
- VLAN
- QoS
- RTCP-XR (RFC3611), VQ-RTCPXR(RFC6035)
- Wi-Fi
Protocols
- SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCP
- IPv6
- PPPoE
- L2TP
- OpenVPN
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
Physical Specifications
- 5 Function keys (Management Center, Monitor, Unlock,Return/Hang up, Answer)
- 10 Pin Cable x1
- 4 Pin Cable x1
- 2 Pin Cable x1

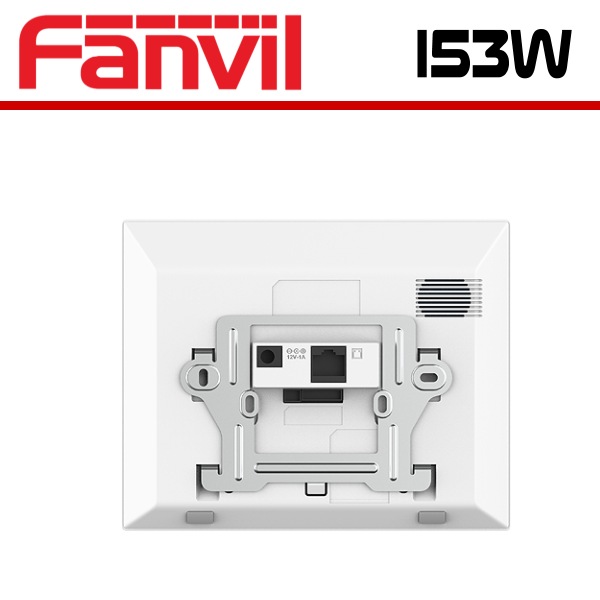

- Wall-mount Bracket x1
- Screws Kit x1
- RJ45 Interface x1
- RS485 Interface x1
- Alarm Input Interface x8
- DC Power Input: 12V/1A
- Power Consumption (PoE): 1.44W~4.76W
- Power Consumption (Adapter): 1.25W~4.09W
- Working Temperature: 0~45℃
- Working Humidity: 10~90%
- Color: White
- Device Dimensions: 176x104x26.5 mm
- Gift Box Dimensions: 193x152x39 mm
- Outer CTN Dimensions: (20 PCS) 413x220x322 mm
