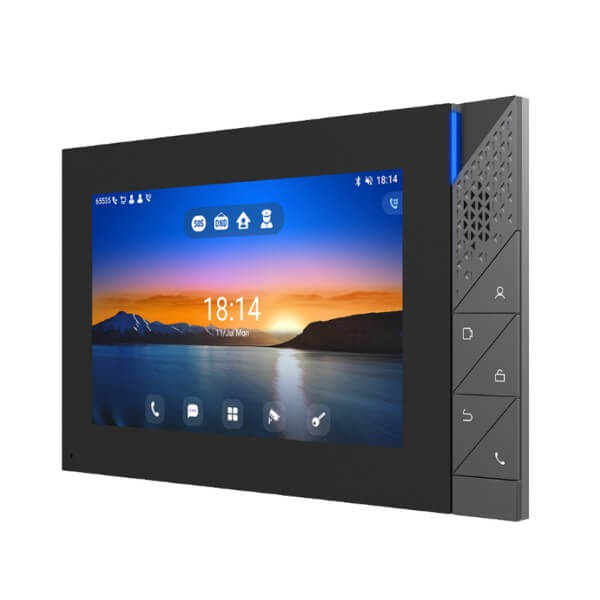

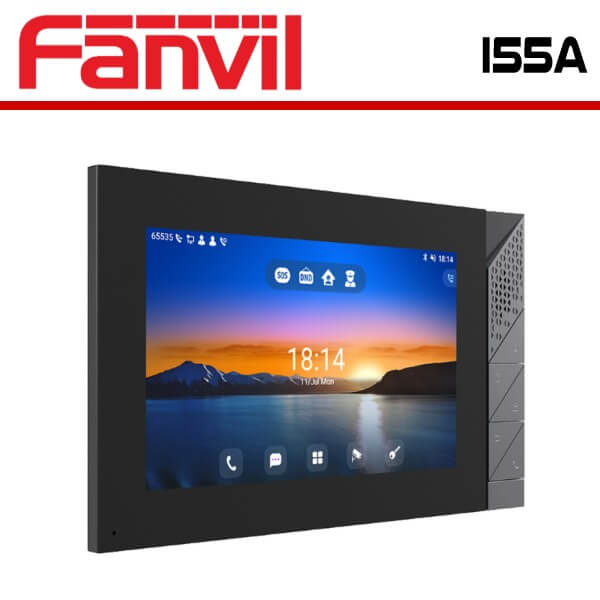

The Fanvil i55A Dubai SIP Indoor Station is a high-end intercom device designed for indoor use in office buildings, apartments, hotels, and other similar environments.

Category:

Description

Fanvil i55A Dubai

The Fanvil i55A Dubai SIP Indoor Station is a powerful and feature-rich intercom device designed for indoor use in a variety of settings. From office buildings to hotels to apartments, the Fanvil i55A Dubai is built to provide reliable and efficient communication, security, and access control.

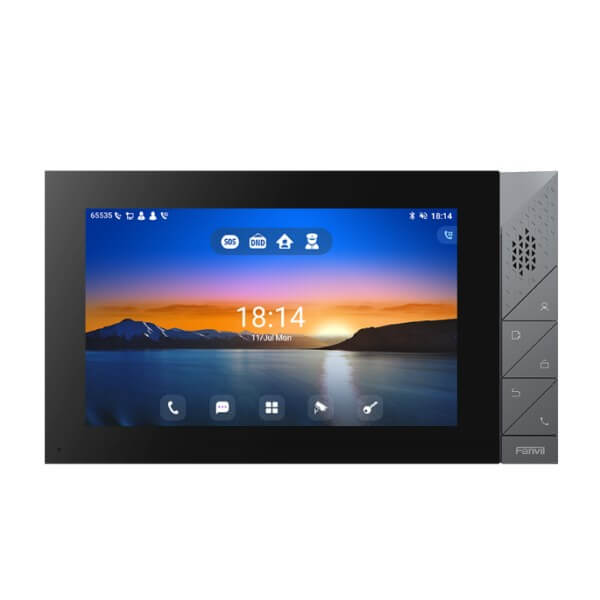

One of the standout features of the Fanvil i55A is its large, 7-inch color touch screen display. The high-resolution screen allows users to easily navigate through the device’s various features and functions, including video intercom, door control, and alarm integration. The touch screen also supports third-party software applications, making it a versatile solution for a wide range of indoor environments.

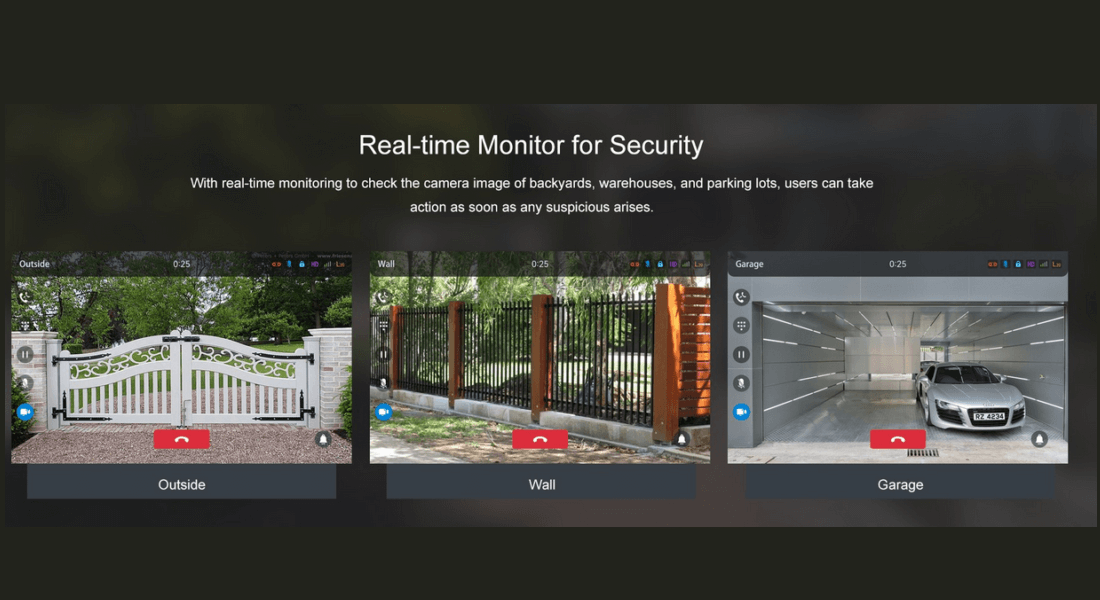

In addition to its touch screen display, the Fanvil i55A Dubai also includes a built-in HD camera. This camera provides high-quality video and images, making it easy to identify visitors and monitor activity in and around the building. The camera also supports night vision, ensuring that users have clear visibility even in low-light conditions.

The Fanvil i55A Dubai is built on the SIP protocol, which makes it compatible with most VoIP systems. This allows for easy integration with existing communication systems, as well as the ability to make and receive calls and messages directly from the device. The Fanvil i55A also supports PoE (Power over Ethernet) for easy installation and setup.

Another key feature of the Fanvil i55A Dubai is its support for door control. The device includes a built-in relay, which allows users to control access to the building directly from the intercom. This can be done through the touch screen display, as well as through the device’s physical buttons.

Overall, the Fanvil i55A Dubai SIP Indoor Station is a versatile and reliable solution for enhancing communication and security in a variety of indoor environments. Its advanced features, high-quality display and camera, and compatibility with most VoIP systems make it an ideal choice for businesses, hotels, apartments, and other indoor settings.





Fanvil i55A Specifications

Generic

  • 2 SIP Lines
  • HD Voice
  • PoE
  • 1 x LCD: 7-inch 1024*600 Color Touch Screen
  • External Power Supply(Optional)
  • RAM/ROM：2G/16G

Operation System

  • Android 9.0 OS with higher security and better compatibility
  • Support 3rd Party Applications
  • Secondary Development of API





Device Features

  • Local Phonebook (1000 entries)
  • Remote Phonebook
  • Call logs (In/out/missed, 1000 entries)
  • Blocked List/Allowed List
  • Screen saver
  • Voice Message Waiting Indication (VMWI)
  • Programmable DSS/Soft keys
  • Network Time Synchronization
  • Built-in Bluetooth 5.0
  • Built-in Wi-Fi
  • Miracast
  • Action URL / Active URI
  • SIP Hotspot
  • Custom Ringtone
  • Multicast
  • Action Plan





Call Features

  • Call out / Answer / Reject
  • Mute / Unmute (Microphone)
  • Call Hold / Resume
  • Call Waiting
  • Intercom
  • Caller ID Display
  • Speed Dial
  • Anonymous Call (Hide Caller ID)
  • Call Forwarding (Always/Busy/No Answer)
  • Do-Not-Disturb
  • Auto-Answering
  • Hot Line





Audio

  • Wideband ADC/DAC 16KHz sampling
  • Narrowband Codec: G.711a/u, G.729AB, iLBc
  • Wideband Codec: G.722, opus
  • Acoustic Echo Canceller (AEC)
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/Background Noise Estimation (BNE)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive litter Buffer up to 300ms
  • DTMF: In-band, Out of Band DTMF (RFC2833) / SIP INFO

Video

  • Hardware video decoding: H.264
  • Video call resolution: QVGA / CIF / VGA / 4CIF / 720P / 1080P

Network

  • 10/100 Mbps Ethernet
  • IP Mode: IPv4
  • IP Configuration: Static / DHCP
  • VPN: OpenVPN (Requires third-party app support)
  • WI-FI Security Mode：WPA /WPA2-PSK/802.X EAP

Protocols

  • SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
  • DNS A/SRV/NAPTR
  • RTP/RTCP/SRTP
  • RTSP
  • STUN
  • DHCP
  • OpenVPN (Requires third-party app support)
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069

Physical Specifications

  • 5 keys (Manager center key/Monitor key/Unlock key/Return(Hang up key)/Answer key)
  • 10 Pin Cable x1
  • 2Pin Cable x1
  • Wall-mount Bracket x1
  • Screws Kit x1
  • RJ45 interface x1
  • Micro USB interface x1
  • TF Slot x1

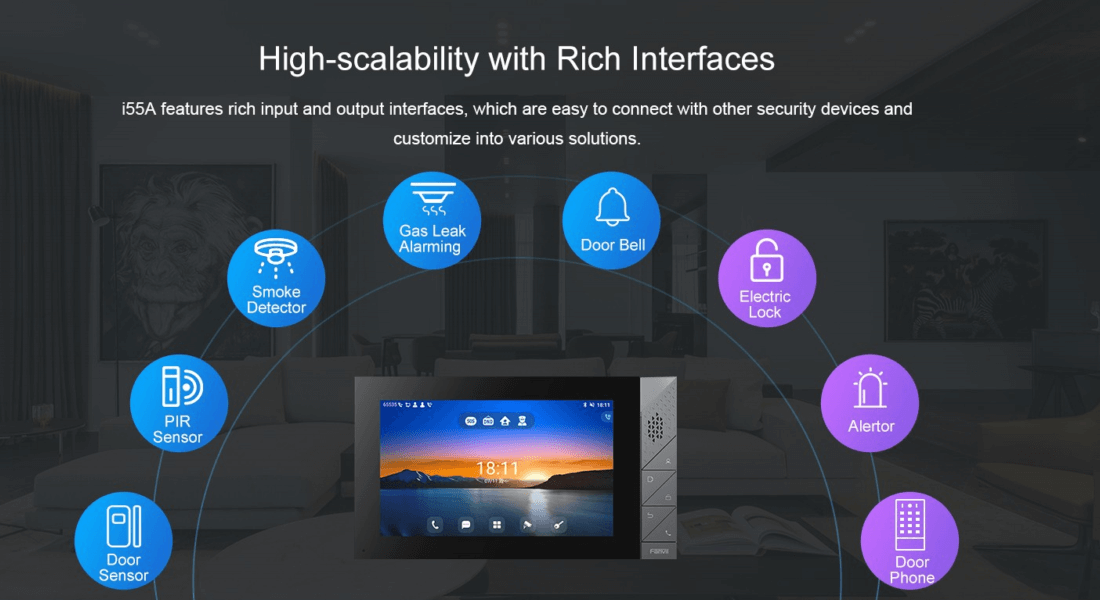

  • RS-485 interface x1
  • 2 embedded short circuit output interface
  • 2 relays: MAX DC30V / 2A, AC125V / 0.5A
  • Alarm input interface x8
  • Doorbell input interface x1
  • Power: DC12V/1A or PoE
  • Power Consumption (PoE)：2.04~6.58W
  • Power Consumption (Adapter)：1.48~5.53W
  • Housing material: ABS & aluminum alloy
  • Working temperature: -10 ~ 50℃
  • Relative humidity: 10% – 90%
  • Qty/CTN：10 pcs
  • N.W/CTN：7.4kg
  • G.W/CTN：8.22kg
  • Equipment Dimension: 217x124x21mm
  • Packing Dimension: 257x175x76mm
  • Outer CTN Dimension: 405*377*277mm
