Description

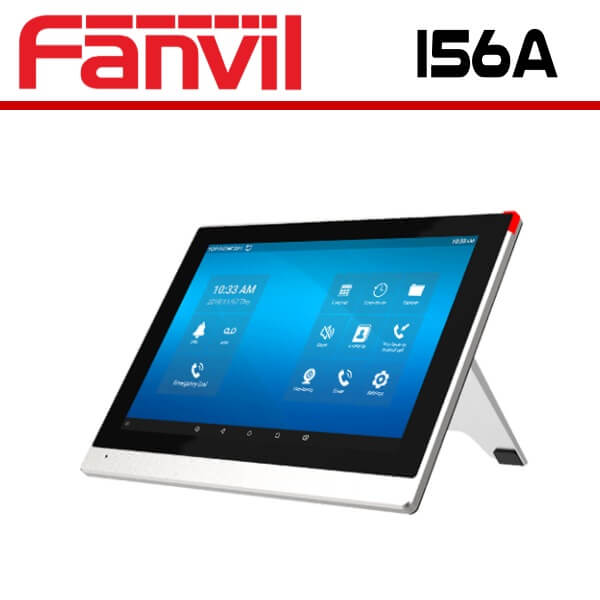

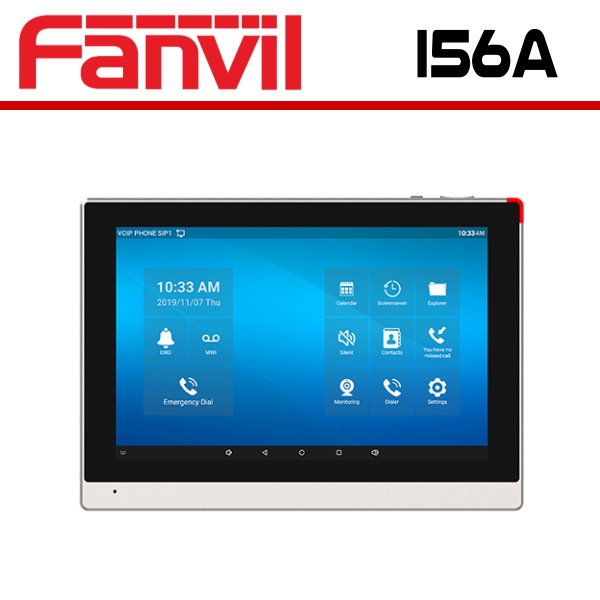

Fanvil i56A Dubai
The Fanvil i56A Dubai SIP Indoor Station is a high-end intercom designed for indoor communication and access control applications. It features an intuitive touchscreen display that makes it easy to use and navigate, even for first-time users. The device is built with a sleek and modern design that blends well with most indoor environments, making it an excellent choice for various applications such as offices, hotels, and residential buildings.
The Fanvil i56A Dubai supports the Session Initiation Protocol (SIP) and can integrate seamlessly with most IP phone systems, making it easy to incorporate into existing communication systems. This feature allows the device to be used for various applications, including door entry systems, intercom systems, and security systems.
The Fanvil i56A Dubai SIP Indoor Station comes equipped with an HD audio system that ensures clear and high-quality communication. The device also features a built-in microphone and speaker, providing an excellent audio experience for both the caller and the recipient.
One of the key advantages of the Fanvil i56A Dubai SIP Indoor Station is its built-in camera with face recognition technology, which enables video calling and monitoring. The camera has a resolution of up to 1080p, ensuring that images are clear and detailed. This feature makes the Fanvil i56A Dubai ideal for applications where visual identification is required, such as access control or visitor management systems.
The device also features a built-in RFID card reader, providing secure and convenient access control. This feature means that the device can be used to control access to restricted areas, ensuring that only authorized individuals are allowed entry. Additionally, the device supports Wi-Fi connectivity, making it easy to connect to the internet and access cloud-based applications.
In addition to its communication and access control capabilities, the Fanvil i56A Dubai SIP Indoor Station also has a range of additional features that make it a highly versatile device. For instance, it has a built-in relay output that can be used to control an electronic lock or gate. It also has a built-in light sensor that can be used to control the device’s brightness, ensuring that it is always visible in different lighting conditions.
The device can also be integrated with third-party software and hardware, allowing for even greater flexibility and customization. This feature means that the Fanvil i56A Dubai SIP Indoor Station can be used in a wide range of applications, such as hotel room access control, visitor management systems, and office intercom systems.
In summary, the Fanvil i56A Dubai SIP Indoor Station is a high-end intercom that offers a range of features designed to meet the needs of communication and access control applications in indoor settings. Its built-in camera with face recognition technology, RFID card reader, and additional features, such as its built-in relay output and light sensor, make it an ideal choice for various applications, including offices, hotels, and residential buildings.
Fanvil i56A Specifications
Generic
- 6 SIP Lines
- HD Voice
- PoE
- External Power Supply(Optional)
Display
- 1 x LCD: 10.1-inch 1280×800 Color Touch Screen
Audio
- Wideband ADC/DAC 16KHz sampling
- Narrowband Codec: G.711a/u, G.729AB, iLBc
- Wideband Codec: G.722, opus
- Acoustic Echo Canceller (AEC)
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /Background Noise Estimation (BNE)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive litter Buffer up to 300ms
- DTMF: In-band, Out of Band DTMF (RFC2833) / SIP INFO
Video
- Hardware video decoding: H.264
- Video call resolution: QVGA / CIF / VGA / 4CIF / 720P / 1080P
Network
- 10/100 Mbps Ethernet
- IP Mode: IPv4
- IP Configuration: Static / DHCP
- Network Access Control: 802.1x
- VPN: OpenVPN (Requires third-party app support)
- VLAN
- LLDP
- CDP
- QoS
- Wi-Fi
Protocols
- SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
- DNS A/SRV/NAPTR
- RTP/RTCP/SRTP
- RTSP
- STUN
- DHCP
- CDP
- LLDP
- CDP
- 802.1x
- OpenVPN (Requires third-party app support)
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
Physical Specifications
- 2 keys (Power, volume +/-)
- 10 Pin Cable x1
- 6 Pin Cable x1
- 4 Pin Cable x1
- Wall-mount Bracket x1
- Screws Kit x1
- RJ45 interface x1
- Micro USB interface x1
- TF Slot x1
- RS-485 interface x1
- 2 embedded short circuit output interface
- 2 relays: MAX DC30V / 2A, AC125V / 0.5A
- Alarm input interface x8
- Power: DC12V/1A or PoE
- Housing material: ABS
- Working temperature: 0 ~ 45℃
- Relative humidity: 10% – 90%
- Equipment Dimension: 258x183x19mm
- Packing Dimension: 318x217x75mm
- Outer CTN Dimension: 450x393x338mm (10 pcs)
