Fanvil i57A Dubai

Fanvil i57A Dubai

The Fanvil i57A Dubai SIP Indoor Station is an advanced IP phone designed for indoor use in a variety of business and residential settings. It supports the Session Initiation Protocol (SIP) and is compatible with most major IP-PBX and softswitch platforms.

Category:

Description

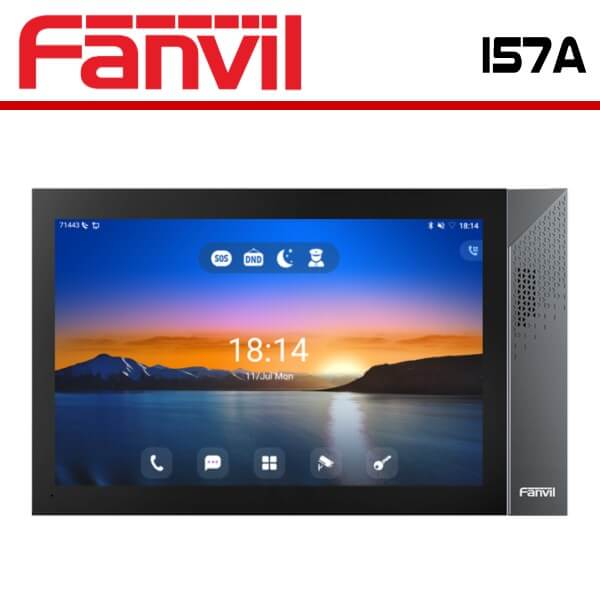

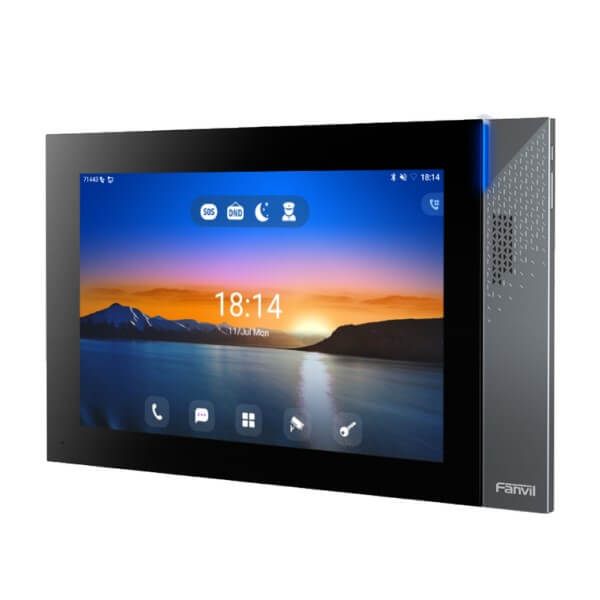

Fanvil i57A Dubai

The Fanvil i57A Dubai SIP Indoor Station is a high-performance intercom device designed for indoor use in a wide range of settings. With its sleek design, advanced features, and ease of use, the Fanvil i57A Dubai is an ideal solution for enhancing communication and security in offices, hotels, apartments, and other similar environments.

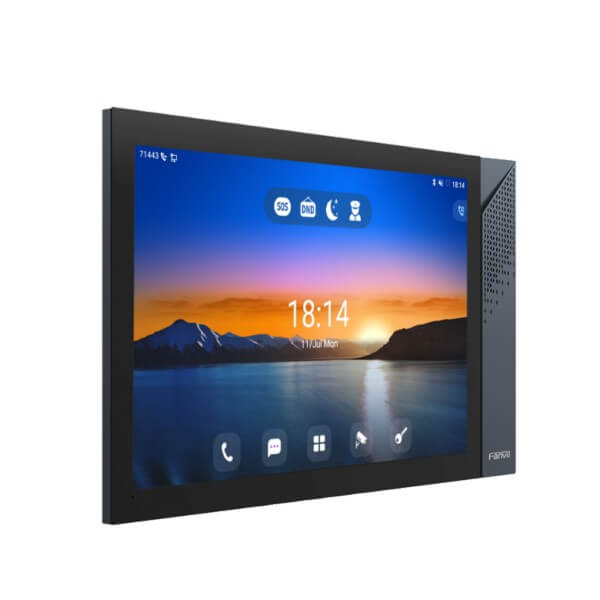

One of the standout features of the Fanvil i57A Dubai is its large, 10.1-inch color touch screen display. This high-resolution display provides users with a clear and intuitive interface for navigating the device’s various features and functions, including video intercom, door control, and alarm integration. The touch screen also supports third-party software applications, making the Fanvil i57A Dubai a versatile solution for a wide range of indoor environments.

The Fanvil i57A Dubai includes a built-in HD camera with a wide-angle lens, providing high-quality video and images. The camera also supports night vision, ensuring that users have clear visibility even in low-light conditions. The Fanvil i57A Dubai also includes a built-in speaker and microphone, allowing for two-way audio communication between users and visitors.

The Fanvil i57A Dubai is built on the SIP protocol, making it compatible with most VoIP systems. This allows for easy integration with existing communication systems, as well as the ability to make and receive calls and messages directly from the device. The Fanvil i57A Dubai also supports PoE (Power over Ethernet) for easy installation and setup.

The Fanvil i57A Dubai SIP Indoor Station is an advanced IP phone designed for indoor use in a variety of business and residential settings. It supports the Session Initiation Protocol (SIP) and is compatible with most major IP-PBX and softswitch platforms.

The Fanvil i57A Dubai features a 7-inch color touchscreen display that allows users to easily navigate through menus and settings. It also includes a high-quality speaker and microphone for clear voice communication, as well as support for Bluetooth and Wi-Fi connectivity.





Fanvil i57A Specifications

Generic

  • 2 SIP Lines
  • HD Voice
  • PoE

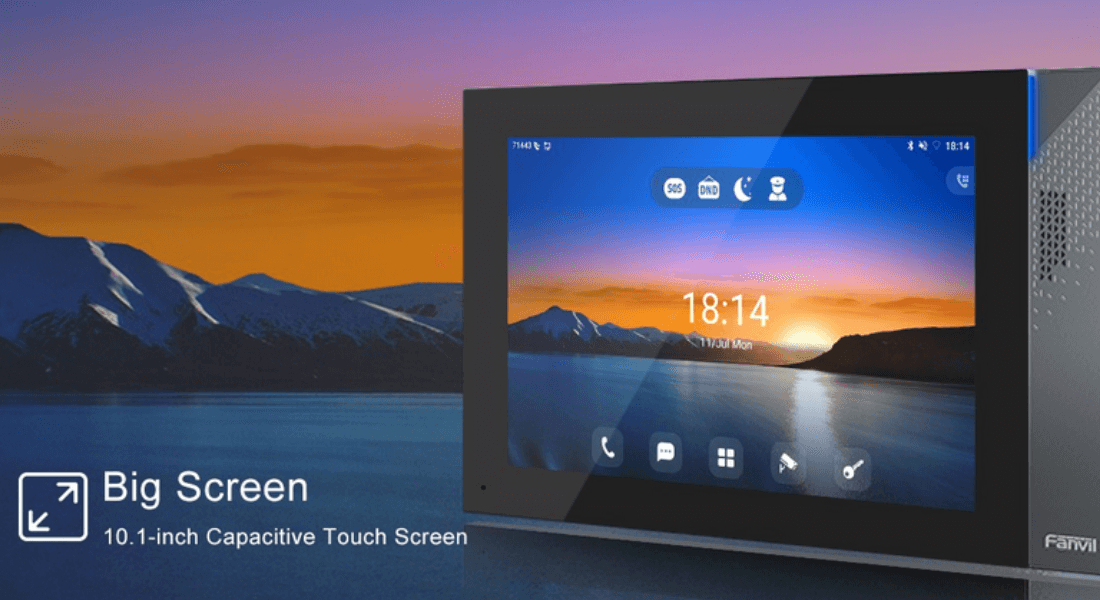

  • 1 x LCD: 10.1-inch 1280×800 Color Touch Screen
  • External Power Supply(Optional)
  • RAM/ROM：2G/16G



Operation System

  • Android 9.0 OS with higher security and better compatibility
  • Support 3rd Party Applications
  • Secondary Development of API



Device Features

  • Local Phonebook (1000 entries)
  • Remote Phonebook
  • Call logs (In/out/missed, 1000 entries)
  • Blocked List/Allowed List
  • Screen saver
  • Voice Message Waiting Indication (VMWI)
  • Programmable DSS/Soft keys
  • Network Time Synchronization
  • Built-in Bluetooth 5.0
  • Built-in Wi-Fi
  • Miracast
  • Action URL / Active URI
  • SIP Hotspot
  • Custom Ringtone
  • Multicast
  • Action Plan



Call Features

  • Call out / Answer / Reject
  • Mute / Unmute (Microphone)
  • Call Hold / Resume
  • Call Waiting
  • Intercom
  • Caller ID Display
  • Speed Dial
  • Anonymous Call (Hide Caller ID)
  • Call Forwarding (Always/Busy/No Answer)
  • Do-Not-Disturb
  • Auto-Answering
  • Hot Line
  • IP call



Audio

  • Wideband ADC/DAC 16KHz sampling
  • Narrowband Codec: G.711a/u, G.729AB, iLBc
  • Wideband Codec: G.722, opus
  • Acoustic Echo Canceller (AEC)
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/Background Noise Estimation (BNE)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive litter Buffer up to 300ms
  • DTMF: In-band, Out of Band DTMF (RFC2833) / SIP INFO



Video

  • Hardware video decoding: H.264
  • Video call resolution: QVGA / CIF / VGA / 4CIF / 720P / 1080P



Network

  • 10/100 Mbps Ethernet
  • IP Mode: IPv4
  • IP Configuration: Static / DHCP
  • VPN: OpenVPN (Requires third-party app support)
  • Wi-Fi



Protocols

  • SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
  • DNS A/SRV/NAPTR
  • RTP/RTCP/SRTP
  • RTSP
  • STUN
  • DHCP
  • OpenVPN (Requires third-party app support)
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS

Physical Specifications

  • 2 keys (Power, volume +/-)
  • TF card interface (MAX:256G) x1
  • 10 Pin Cable x1
  • 2Pin Cable x1
  • Wall-mount Bracket x1
  • Screws Kit x1
  • RJ45 interface x1
  • Micro USB interface x1
  • RS-485 interface x1
  • 2 embedded short circuit output interface
  • 2 relays: MAX DC30V / 2A, AC125V / 0.5A
  • Alarm input interface x8
  • Doorbell input interface x1
  • Power: DC12V/1A or PoE

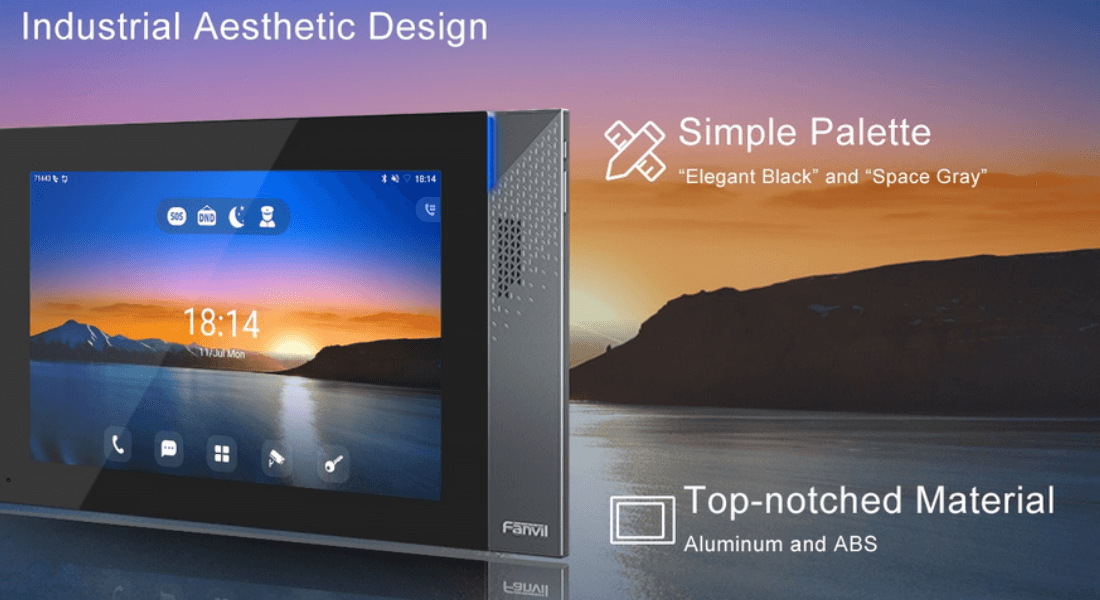

  • Housing material: ABS & aluminum alloy
  • Working temperature: -10 ~ 50℃
  • Relative humidity: 10% – 90%
  • Equipment Dimension: 295x181x24mm
  • Packing Dimension: 342x227x76mm
  • Outer CTN Dimension: 474x405x362mm (10 pcs)
