Description

Fanvil i62 Dubai

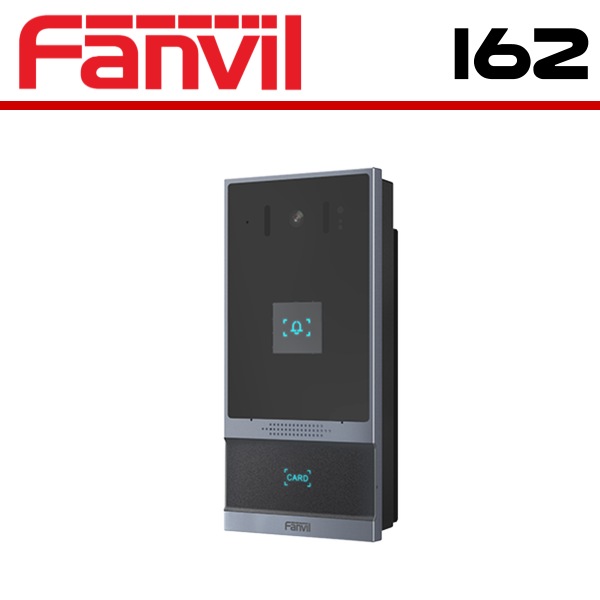

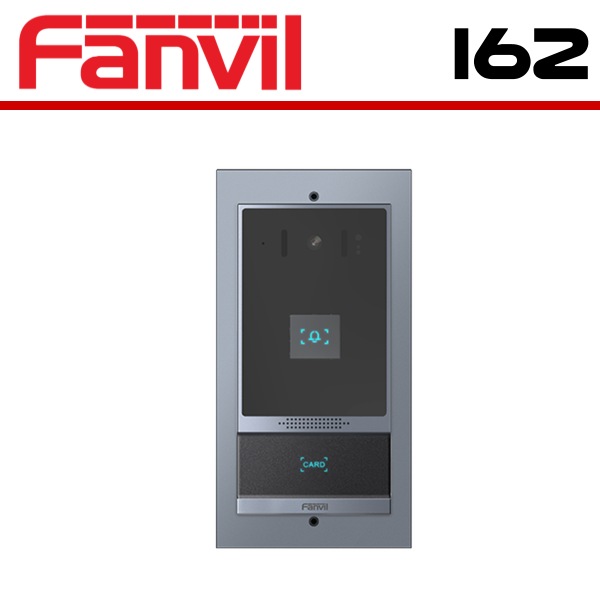

The Fanvil i62 Dubai Video Door Phone is a compact and advanced door entry device designed for homes, apartments, and small businesses. This device comes equipped with a high-definition camera, an intercom system, and an access control feature, making it a highly reliable and convenient security solution for monitoring and controlling access to your property.

The Fanvil i62 Dubai Video Door Phone features a high-quality camera that captures clear and detailed images of visitors at your doorstep. The camera also has infrared night vision, which allows you to see visitors in low light conditions. The intercom feature allows you to speak with your visitors through the built-in speaker and microphone.

The access control feature of the Fanvil i62 Dubai Video Door Phone allows you to remotely control who has access to your property. You can grant access to visitors, such as delivery personnel, even if you are not physically present. The device can also be configured to work with a variety of access control systems and IP phones, giving you the flexibility to choose the equipment that best suits your needs.

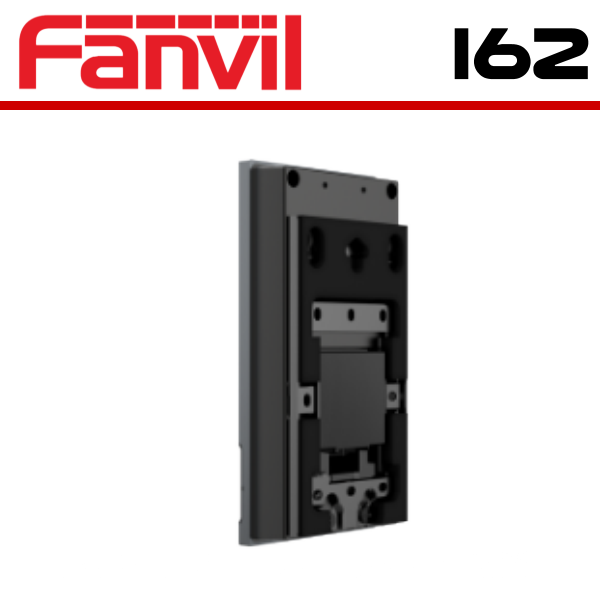

The Fanvil i62 Dubai Video Door Phone is designed to be compact and easy to install. It comes with a mounting bracket that can be easily attached to a wall or surface. The device also has a tamper-resistant design that makes it difficult for intruders to bypass the security system.

The Fanvil i62 Dubai Video Door Phone has a durable construction, making it resistant to harsh weather conditions. It has an IP65 rating, which makes it resistant to dust and water. The device’s touch screen display is made of toughened glass, ensuring it can withstand frequent use.

The Fanvil i62 Dubai Video Door Phone is also designed to be user-friendly. It comes with a mobile app that allows you to remotely control the device and access its features. The app can be easily installed on your smartphone or tablet, giving you the ability to monitor your property from anywhere.

Overall, the Fanvil i62 Dubai Video Door Phone is an excellent security solution for anyone looking to monitor and control access to their property. Its advanced features, compact size, and easy installation make it a reliable and convenient security solution that will help keep your property safe and secure.

Fanvil i62 Dubai Specifications

Generic

• 2 SIP lines
• Video intercom
• IP address announcement in English
• Programmable DSS key
• Wiegand port: Support
• RS485 port: Support
• Open the door operation: DTMF, RFID card, NFC,push button,Timed open door
• door control in and out
• Switch signal input and output
• Line-out for induction loop antenna: Support
• Support TF card
• PoE enabled
• RFID cards (support 10,000)
• Door open records (support 200,000)

Device Functions

• Auto-answering
• Programmable DSS keys
• Through button or web page volume adjustment
• Network time synchronization
• Time Plan (task management)
• Dynamic multicast function
• SIP call multicast function
• HTTP API
• Action URL / Active URI

Call Functions

• Call out / answer / reject
• Call waiting
• Intercom, Multicast
• Speed dial
• Anonymous call (Hide caller ID)

Audio

• Narrowband codec: G.711A/U, G.729A/B,iLBC,G.723.1,G.726-32K
• Wideband codec: G.722, Opus
• Full-duplex hands-free speakerphone with AEC
• DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)

Video

• Sensor: 1/2.9” color CMOS
• Pixels: 2 Mega
• Motion detection
• Video coding: H.264
• Resolution: Main stream 1080P@30fps Sub stream VGA@30fps
• High intensity IR LEDs for picture lighting during dark hours with internal light sensor
• Viewing angle: Diagonal: 141° Horizontal: 120° Vertical: 60°

Network

• Physical: 10/100 Mbps Ethernet
• IP mode:IPv4/IPv6/IPv4&IPv6
• IP configuration: Static IP / DHCP / PPPoE
• VPN: L2TP / OpenVPN
• VLAN

Protocols

• SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS

Physical Specifications

• Speed dial button x 1
• RJ45 port x1: connect the network PoE enabled Short-in detect port x 3 Port: Terminal socket
• Short-out control port x2 (built-in relay) Relay: MAX DC30V / 2A, AC125V / 0.5A Port: Terminal socket
• Tamper switch x1
• TF card slot x1: connect TF card,up to 128GB
• RF Card Reader:125KHz&13.56MHz
• RS485: Support
• Wiegand Port: In/Out configurable, Wiegand in by default
• Line-out port x1: for induction loop antenna loop
• DC port x1: DC power input DC power input: DC12V/1A Port: Terminal socket
• PoE level: 802.3af Class 3
• Power Consumption (PoE)：1.64~6.57W
• Power Consumption (Adapter)：1.58~6.11W
• Protection level:IP66 and IK07
• Housing material: Aluminum

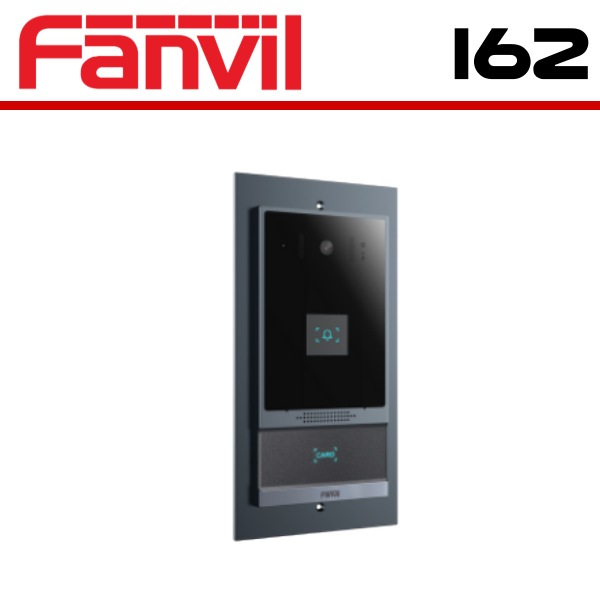

• Installation: Wall-mounted, Flush-mounted(Need to purchase separately, model：EX102)
• Working temperature: -40℃ ~ 70℃
• Storage temperature: – 40℃ ~ 70℃
• Working humidity: 10~95%
• Qty/CTN：20pcs
• N.W/CTN:14.25kg
• G.W/CTN:14.88kg
• Device dimensions: 177.4x88x36.15 mm
• Gift box dimensions: 220x123x65 mm
• Outer CTN dimensions: 463x350x266 mm (20 PCS)
