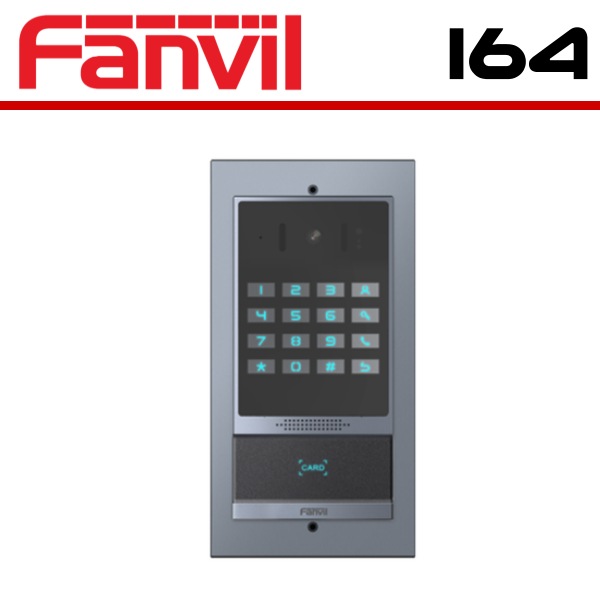

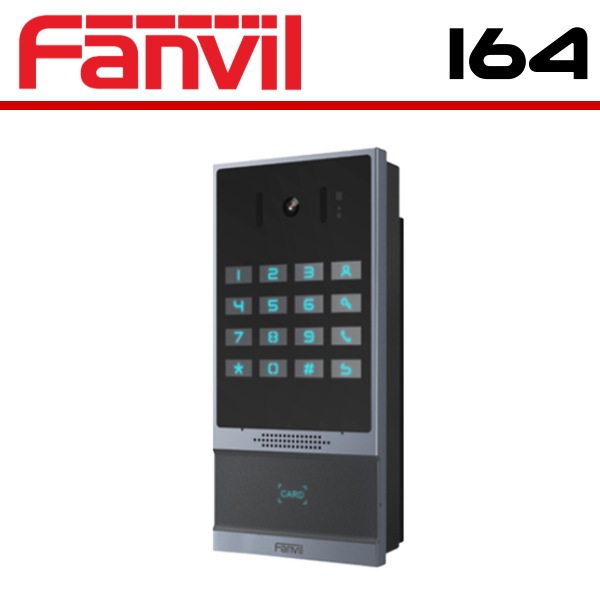

Fanvil i64 Dubai

Fanvil i64 Dubai

The Fanvil i64 Dubai Video Door Phone is a high-quality door entry device that features a built-in camera, intercom, and access control. It is designed for use in homes, apartments, and small offices, and allows users to remotely monitor and control access to their property.

Category:

Description

Fanvil i64 Dubai

The Fanvil i64 Dubai Video Door Phone is a modern and high-quality door entry device designed for homes, apartments, and small offices. It offers users the ability to remotely monitor and control access to their property through its built-in camera, intercom, and access control features.

The Fanvil i64 Dubai Video Door Phone has a high-definition camera that allows users to see and communicate with visitors at their doorstep, even when they’re not home. It also features a wide-angle lens and infrared night vision, ensuring clear and crisp images in any lighting condition. The intercom function allows users to talk to visitors, giving them the ability to verify their identity before granting access.

In addition to its visual and audio capabilities, the Fanvil i64 Dubai Video Door Phone also features an access control system. This allows users to unlock their doors remotely, giving visitors access to their property without the need for physical keys. The system can be easily configured and controlled via a mobile app, making it convenient for users to manage access to their property from anywhere.

The Fanvil i64 Dubai Video Door Phone has a modern and sleek design that is both aesthetically pleasing and functional. Its touch screen display provides an intuitive user interface that is easy to navigate, while its durable construction ensures that it can withstand harsh weather conditions and frequent use.

Installation of the Fanvil i64 Dubai Video Door Phone is straightforward and can be completed without the need for professional help. It can be installed on any surface or flush-mounted for a more streamlined look. The device is also compatible with a wide range of third-party access control systems and IP phones, providing users with flexibility in their choice of equipment.

Overall, the Fanvil i64 Dubai Video Door Phone is an excellent choice for anyone looking for a reliable and secure door entry system. Its advanced features, easy installation, and modern design make it an excellent choice for homeowners, apartment dwellers, and small business owners who want to monitor and control access to their property.

Fanvil i64 Specifications

Generic

  • 2 SIP lines
  • Video intercom
  • IP address announcement in English
  • Programmable DSS key
  • RS485 port: Support
  • Wiegand port: Support
  • Switch signal input and output
  • Door control in and out
  • Line-out for induction loop antenna: Support
  • Support TF card
  • PoE enabled
  • Open the door operation: password, DTMF, RFID card, NFC,indoor switch, Time open door
  • RFID cards (support 10,000)
  • Door open records (support 200,000)

Device Functions

  • Auto-answering
  • Programmable DSS keys
  • Through button or web page volume adjustment
  • Network time synchronization
  • Time Plan (task management)
  • Dynamic multicast function
  • SIP call multicast function
  • HTTP API
  • Action URL / Active URI

Call Functions

  • Call out / answer / reject
  • Call waiting
  • Intercom, Multicast
  • Speed dial
  • Anonymous call (Hide caller ID)

Audio

  • Narrowband codec: G.711A/U, G.729A/B,iLBC,G.723.1,G.726-32K
  • Wideband codec: G.722, Opus
  • Full-duplex hands-free speakerphone with AEC
  • DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
  • Sensor: 1/2.9” color CMOS
  • Pixels: 2 Mega
  • Video coding: H.264
  • Motion detection
  • Resolution:Main stream 1080P@30fps  Sub stream VGA@30fps
  • High intensity IR LEDs for picture lighting during dark hours with internal light sensor
  • Viewing angle: Diagonal: 141°  Horizontal: 120°  Vertical: 60°

Network

  • Physical: 10/100 Mbps Ethernet
  • IP mode:IPv4/IPv6/IPv4&IPv6
  • IP configuration: Static IP / DHCP / PPPoE
  • VPN: L2TP / OpenVPN
  • VLAN

Protocols

  • SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • IPv6
  • PPPoE
  • L2TP
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069

Physical Specifications

  • Keypad: 16 keys,including
  • 12 number keys
  • 4 function keys (Management Center /Password Mode/Dial/Backspace)
  • RJ45 port x1: connect the network
  • PoE enabled
  • Short-in detect port x 3
  • Port: Terminal socket
  • Short-out control port x2 (built-in relay)
  • Relay: MAX DC30V / 2A, AC125V / 0.5A
  • Port: Terminal socket
  • Tamper switch x1
  • TF card slot x1: connect TF card,up to 128GB
  • RF Card Reader:125KHz&13.56MHz
  • RS485:Support
  • Wiegand Port: In/Out configurable, Wiegand in by default
  • Line-out:support, for induction loop antenna
  • DC port x1: DC power input
  • DC power input: DC12V/1A
  • Port: Terminal socket
  • PoE level: 802.3af Class 3
  • Protection level:IP66 and IK07
  • Housing material: Aluminum

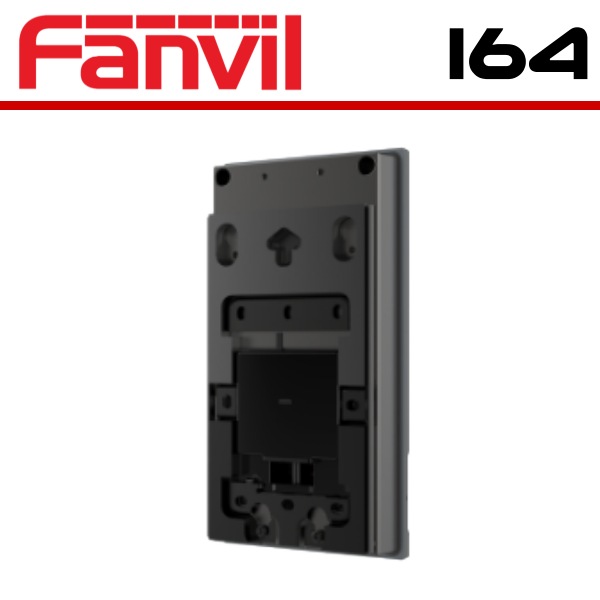

  • Installation: Wall-mounted &Flush-mounted
  • Working temperature: -20℃ ~ 50℃
  • Storage temperature: – 40℃ ~ 70℃
  • Working humidity: 10~95%
  • Device dimensions: 177.4x88x36.15 mm
  • Gift box dimensions: 220x123x65 mm
  • Outer CTN dimensions: 463x350x266 mm (20 PCS)
