Fanvil PA3 Dubai

Fanvil PA3 Dubai

Fanvil PA3 Dubai

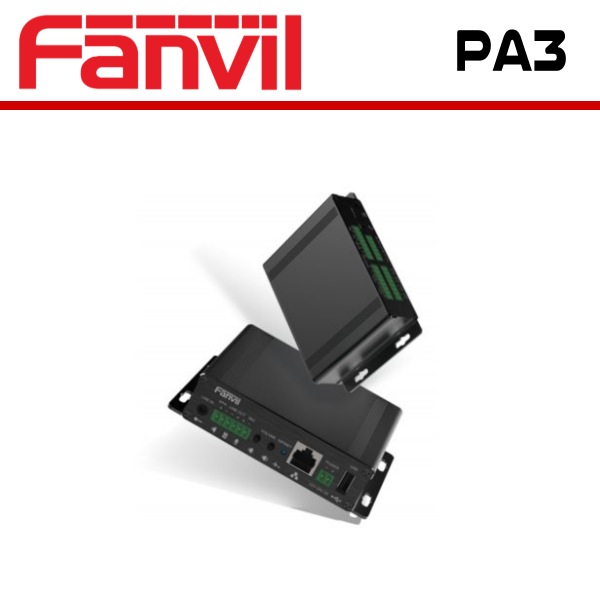

The Fanvil PA3 Dubai SIP Paging Gateway is a versatile and cost-effective solution for businesses looking to implement a paging and intercom system. Fanvil PA3 Dubai supports multiple SIP accounts, has a built-in amplifier, and can be easily integrated with existing paging systems.

Category:

Description

Fanvil PA3 Dubai

The Fanvil PA3 Dubai SIP Paging Gateway is a powerful and flexible paging and intercom system designed for businesses of all sizes. This device supports multiple SIP accounts and can be integrated with existing paging systems, making it an ideal solution for large facilities, warehouses, hospitals, schools, and more.

The Fanvil PA3 SIP Paging Gateway comes with a built-in amplifier that can provide up to 15 watts of output power. This ensures that your paging messages are loud and clear, even in noisy environments. The device also supports multiple audio codecs, including G.711, G.722, and G.729, ensuring that your audio quality is always of the highest standard.

The Fanvil PA3 SIP Paging Gateway can be easily integrated with a variety of SIP-based PBX systems, making it a cost-effective solution for businesses that are looking to upgrade their existing paging systems. It supports SIP 2.0, and is compatible with most SIP-based PBX systems, including Asterisk, FreePBX, and 3CX.

The Fanvil PA3 SIP Paging Gateway has a user-friendly web-based interface, which allows you to configure and manage the device remotely. The interface is easy to use and can be accessed from any web browser, making it a convenient solution for businesses that are looking to manage their paging systems from a central location.

The Fanvil PA3 SIP Paging Gateway also has a variety of advanced features, including support for multiple multicast groups, automatic gain control, and noise reduction. These features ensure that your paging messages are clear and easy to understand, even in noisy environments.

The Fanvil PA3 Dubai SIP Paging Gateway has a durable design that can withstand harsh environmental conditions. It has an aluminum casing and is designed to be both dustproof and waterproof, making it ideal for use in industrial environments.

In conclusion, the Fanvil PA3 Dubai SIP Paging Gateway is a versatile and reliable solution for businesses that are looking to implement a paging and intercom system. Its powerful amplifier, advanced features, and easy integration with existing systems make it an excellent choice for businesses of all sizes.

Fanvil PA3 Specifications

Generic

  • 2 SIP lines
  • Speed dial
  • Linkage with IP camera to realize video intercom
  • Oral announcement of the IP address(in English)
  • MP3 broadcasting
  • Support programmable DSS key ports
  • Support mono active speaker
  • Support audio line in
  • Support TF card and USB flash drive
  • PoE enabled

Device Functions

  • Auto-answering
  • Programmable DSS keys
  • Through button or web page volume adjustment
  • Network time synchronization
  • Dynamic multicast function
  • Support recording (through USB flash drive or server)
  • Action URL / Active URI

Call Functions

  • Call out / answer / reject
  • Call waiting
  • Intercom, Multicast
  • Speed dial
  • Anonymous call (Hide caller ID)
  • Call parking/pick-up (depending on server)

Audio

  • Narrowband codec: G.711A/U, G.729A/B
  • Wideband codec: G.722, Opus
  • Full-duplex hands-free speakerphone with AEC
  • DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)

Network

  • Physical: 10/100 Mbps Ethernet
  • IP mode:IPv4/IPv6/IPv4&IPv6
  • IP configuration: Static IP / DHCP / PPPoE
  • VPN: L2TP / OpenVPN

Protocols

  • SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • IPv6
  • PPPoE
  • L2TP
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069

Physical Specifications

  • Keypad: 3 keys, including 2 volume control keys (Up/Down) 1 reset key (soft reset)
  • DC port x1: DC power input Port: 2 Pin terminal socket
  • RJ45 port x1: connect the network PoE enabled
  • Blue LED x1: (SIP status and network status)
  • Line in port x1: connect audio line input Port: 3.5mm standard audio port
  • Line out port x1: connect the active speaker Out: adjustable by volume, max up to1.2Vpp. Port: terminal socket
  • MIC in port x1: connect the MIC
  • DC power input: DC12V~24V/2A
  • PoE level: Class 4
  • Working temperature: -20℃ ~ 50℃
  • Storage temperature: – 30℃ ~ 60℃
  • Working humidity: 10~95%
  • Installation: Desktop stand / Wall-mounted
  • Color: black
  • Device dimensions: 125×84.2×31 mm
  • Gift box dimensions: 147x114x58 mm
  • Outer CTN dimensions: 310x248x322 mm (20 PCS)
