Fanvil V62 Dubai
Fanvil V62 Dubai - Image 2
Fanvil V62 Dubai - Image 3

Fanvil V62 Dubai

Fanvil V62 Dubai

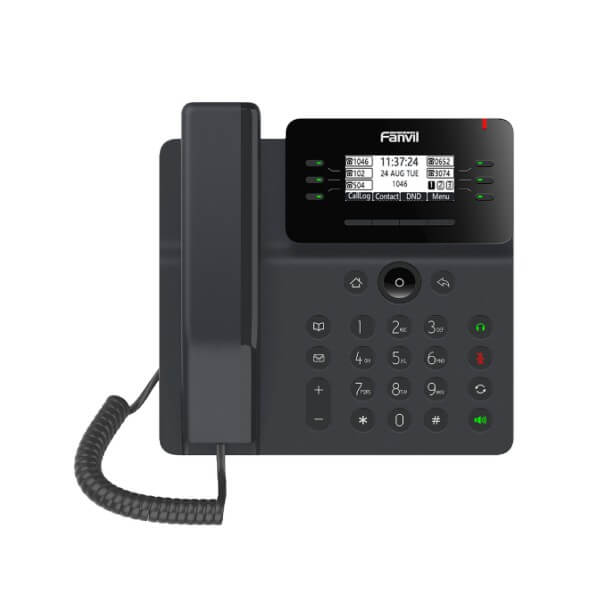

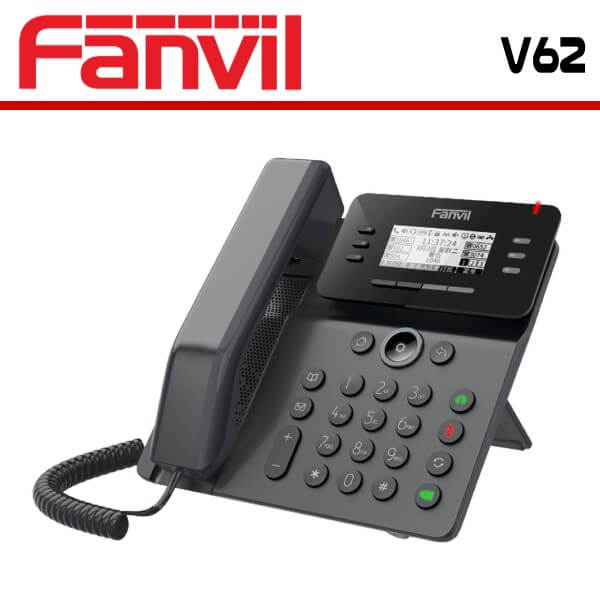

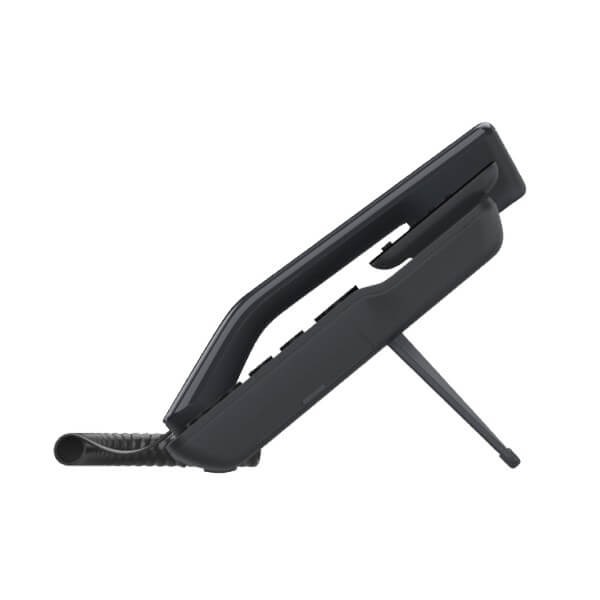

The Fanvil V62 is a desktop IP phone designed for business communication. It has a 2.8 inch color display and supports up to 2 SIP lines. The phone features HD audio with wideband codec G.722 and supports EHS wireless headsets.

Category:

Description

Fanvil V62 Dubai

The Fanvil V62 Dubai is a versatile video phone designed for business users who require reliable and efficient communication tools. The phone features a compact and stylish design, with a range of advanced features and functionalities that make it an ideal solution for small to medium-sized businesses.

One of the standout features of the Fanvil V62 Dubai is its high-quality video capability. The phone comes equipped with a 2-megapixel camera and a 4.3-inch color display, which enables high-definition video calling and conferencing. The camera can be adjusted to a variety of angles, providing users with the flexibility to adjust the camera to suit their needs.

The Fanvil V62 Dubai supports up to two SIP accounts, which can be configured with a range of features such as call waiting, call forwarding, and three-way conferencing. The phone supports a range of audio and video codecs, including G.711a/u, G.722, G.723, G.726, G.729, H.264, and H.265, ensuring that audio and video quality are always clear and reliable.

The phone also comes equipped with advanced security features, including support for Transport Layer Security (TLS) and Secure Real-time Transport Protocol (SRTP) encryption, as well as HTTPS and SRTP verification. This helps ensure that all communication is secure and protected from unauthorized access or interception.

In addition to its video capabilities, the Fanvil V62 Dubai also comes with a full-duplex speakerphone, support for EHS wireless headsets, and an integrated 10/100 Mbps Ethernet switch with dual Ethernet ports. The phone also supports customization options, including a range of ringtones and wallpapers, as well as the ability to configure the phone’s LED lights and display settings.

Fanvil V62 Specifications

Generic

  • 6 SIP lines
  • HD voice
  • PoE enabled
  • Intelligent DSS keys
  • 2.7-inch (192×64) graphical LCD
  • Handset / hands-free / headset mode
  • Desktop Stand / Wall-mounted (need an additional wall hanging parts)
  • Optional external power supply

Phone Features

  • Local Phonebook (1000 entries)
  • Remote Phonebook (XML/LDAP, 1000 entries)
  • Call logs (In/out/missed, 1000 entries)
  • Blocked List/Allowed List
  • Screen saver
  • Voice Message Waiting Indication (VMWI)
  • Programmable DSS/Soft keys
  • Network Time Synchronization
  • Support Bluetooth headset (Via BT dongle BT20)
  • Support Wi-Fi Dongle (Via WF20)
  • Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
  • Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
  • Support Recording(through server)
  • Action URL / Active URI
  • uaCSTA
  • Dial Plan
  • SIP Hotspot
  • Multicast
  • Action Plan
  • Group listening

Call Features

  • Call out / Answer / Reject
  • Mute / Unmute (Microphone)
  • Call Hold / Resume
  • Call Waiting
  • Intercom
  • Caller ID Display
  • Speed Dial
  • Anonymous Call (Hide Caller ID)
  • Call Forwarding (Always/Busy/No Answer)
  • Call Transfer (Attended/Unattended)
  • BLF
  • Call Parking/Pick-up (Depending on server)
  • Redial
  • Do-Not-Disturb
  • Auto-Answering
  • Voice Message (With server)
  • 6-way Conference
  • Hot Line
  • Hotdesking

Audio

  • HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
  • HAC handset
  • Wideband ADC/DAC 16KHz Sampling
  • Narrowband Codec: G.711a/u, G.723.1, G.726, G.729A/B, iLBC
  • Wideband Codec: G.722, Opus
  • Full-duplex Acoustic Echo Canceller (AEC)
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction
  • (NR) / Automatic Gain Control (AGC)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer
  • DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
  • VQM voice quality monitoring

Network

  • Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
  • IP Mode:IPv4/IPv6/IPv4&IPv6
  • IP Configuration: Static IP / DHCP / PPPoE
  • Network Access Control: 802.1x
  • VPN: L2TP / OpenVPN
  • VLAN
  • LLDP
  • CDP
  • QoS
  • RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols

  • SIP2.0 over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • CDP
  • LLDP
  • PPPoE
  • 802.1x
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069
  • AES128 & AES256

Physical Specifications

  • LCD:2.7-inch (192×64) graphical LCD with backlight
  • HD Handset (RJ9) x1
  • Standard RJ9 Handset Wire x1
  • 1.5M CAT5.E Ethernet Cable x1
  • Desk Stand x1
  • Status Indicator Light x1 (Red)
  • RJ9 Port x2: Handset x1, Headset x1
  • RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
  • USB2.0 Port x1: Standard A, Connect with Flash Driver&USB headset and USB dongle Security lock port x1
  • Power: DC5V/1A or PoE
  • Working Temperature: 0~45℃
  • Working Humidity: 10~95%
  • Color: Gunmetal
  • Device Dimensions:204x202x31mm
  • Gift Box Dimensions: 307x258x71 mm
  • Outer CTN Dimensions: 5536x380x327 mm (10 PCS)
