Description

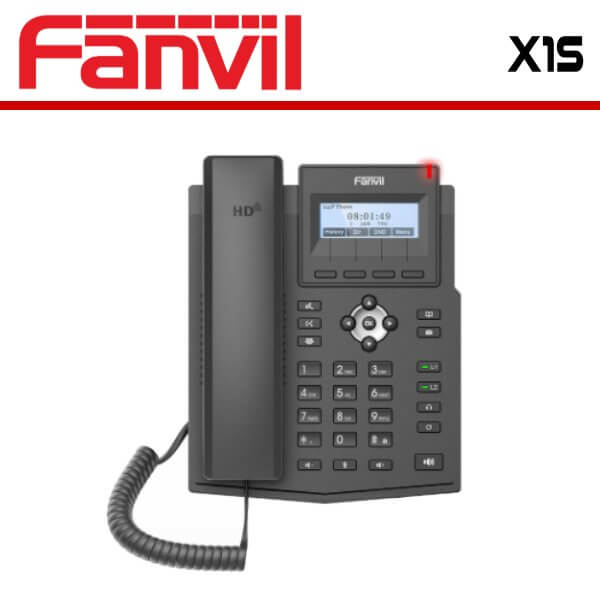

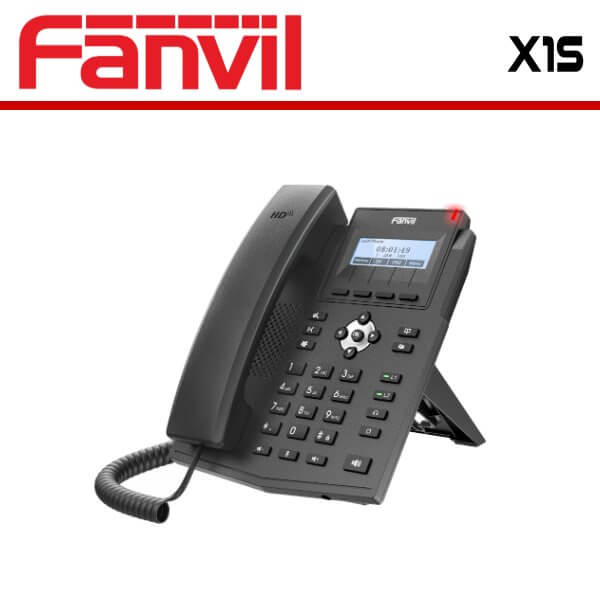

The Fanvil X1S Dubai is an entry-level IP phone designed for small businesses or home offices. It offers a range of features and functionality that make it a reliable and affordable option for businesses with simple communication needs.

The phone includes a 2.8-inch color display that provides easy navigation and access to phone features. The screen is customizable, allowing users to personalize the phone with their preferred wallpaper or logo.

The Fanvil X1S Dubai supports one SIP line, making it suitable for businesses that only need to manage a small number of calls. The phone includes a range of basic call features, such as call hold, call transfer, and three-way conference, which allow users to manage their calls effectively.

One of the benefits of the Fanvil X1S Dubai is its Power over Ethernet (PoE) support. This means that the phone can be powered through an Ethernet cable, eliminating the need for a separate power supply. This can be particularly useful for businesses that want to reduce clutter and simplify their cabling infrastructure.

In terms of connectivity, the Fanvil X1S Dubai includes a single 10/100 Mbps Ethernet port, which provides reliable network connectivity for high-quality voice calls. The phone also includes an integrated headset jack, which allows users to connect a headset for private calls.

The Fanvil X1S Dubai is designed with security in mind. The phone supports Secure Real-Time Transport Protocol (SRTP), which provides end-to-end encryption for voice and video calls. The phone also includes support for Transport Layer Security (TLS), which provides secure communication over the internet. Additionally, the phone includes features such as blacklist/whitelist filtering, which allow users to block or allow incoming calls from specific numbers.

One of the key features of the Fanvil X1S Dubai is its high-quality audio. The phone includes a full-duplex speakerphone, which allows users to conduct hands-free calls without sacrificing audio quality. The phone also supports a range of audio codecs, including G.722, G.711, and Opus, which ensure high-quality audio for both voice and video calls.

The Fanvil X1S Dubai is also designed to be easy to use and manage. The phone includes a web interface that allows users to configure and manage the phone settings. The interface is intuitive and user-friendly, making it easy for users to set up and use the phone.

Overall, the Fanvil X1S Dubai is a reliable and affordable IP phone that is designed for small businesses or home offices. With its range of basic features, PoE support, and high-quality audio, it is a good option for businesses that need a cost-effective phone solution. Its compact design and easy-to-use interface make it ideal for small workspaces or areas where space is limited.

Fanvil X1S Specifications

Generic

• 2 SIP Lines
• HD Voice
• PoE Enabled (Only X1SP)
• 128×48 Dot-matrix display screen
• Handset / Hands-free / Headset mode
• Desktop Stand / Wall-mounted (need an additional wall hanging parts)
• Optional External Power Supply

Phone Functions

• Local Phonebook (1000 entries)
• Remote Phonebook (XML/LDAP, 1000 entries)
• Call logs (In/Out/Missed, 600 entries)
• Black/White List Call Filter
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft keys
• Network Time Synchronization
• Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
• Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
• Support Recording (Through Server)
• Action URL / Active URI
• uaCSTA

Call Functions

• Call out / Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forward (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (Depending on server)
• Redial
• Do-Not-Disturb
• Auto-Answering
• Voice Message (With server)
• 3-way Conference
• Hot Line
• Hot desking

Audio

• HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
• HAC handset
• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec: G.711a/u, G.726-32K, G.729A/B, iLBC,G723.1(Optional)
• Wideband Codec: G.722, Opus
• Full-duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction
• (NR) /Automatic Gain Control (AGC)
• Packet Loss Concealment (PLC)

Network

• Physical: 10/100 Mbps Ethernet, dual bridged port for PC bypass
• IP Mode: IPv4/IPv6/IPv4&IPv6
• IP Configuration: Static IP / DHCP / PPPoE
• Network Access Control: 802.1x
• VPN: L2TP / OpenVPN
• VLAN
• LLDP
• QoS
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• LLDP
• PPPoE
• 802.1x
• L2TP
• OpenVPN
• SNTP/NTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069
• AES128 & AES256

Physical Specifications

• Main LCD x1: 128×48 Dot-matrix screen with backlight
• Keypad: 34 keys
• HD Handset (RJ9) x1
• Standard RJ9 Handset Wire x1
• 1.5M CAT5 Ethernet Cable x1
• Back Rack x1
• Status Indicator Light x1 (Red)
• RJ9 Port x2: Handset x1, Headset x1
• RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
• Safety Keyhole x1
• DC Power Input: 5V/0.6A
• Power Consumption: Idle 0.9~1.65W,Peak 1.8~2.95W
• Working Temperature: 0~45℃
• Working Humidity: 10~95%
• Color: Black
• Desktop Stand (Angles 1): 169×186.3×174.5 mm
• Desktop Stand (Angles 2): 169×177.6×183.7 mm
• Wall-mounted: 169×115.6×212.5 mm
• Gift Box Dimensions: 274x215x68 mm
• Outer CTN Dimensions: 450x360x294 mm (10 PCS)
