Description

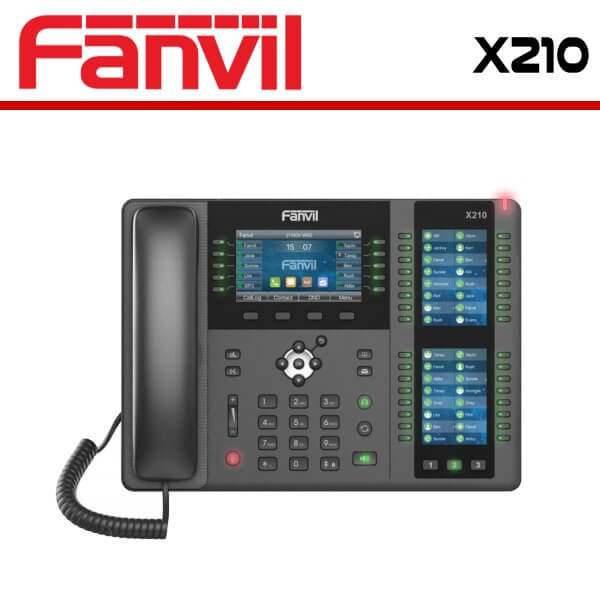

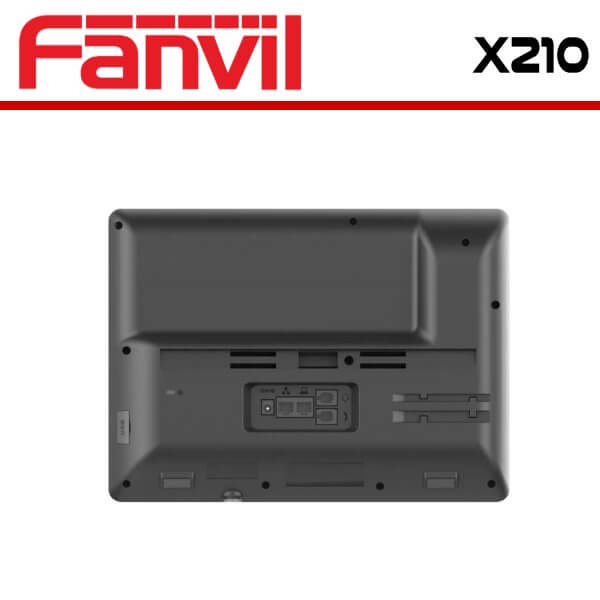

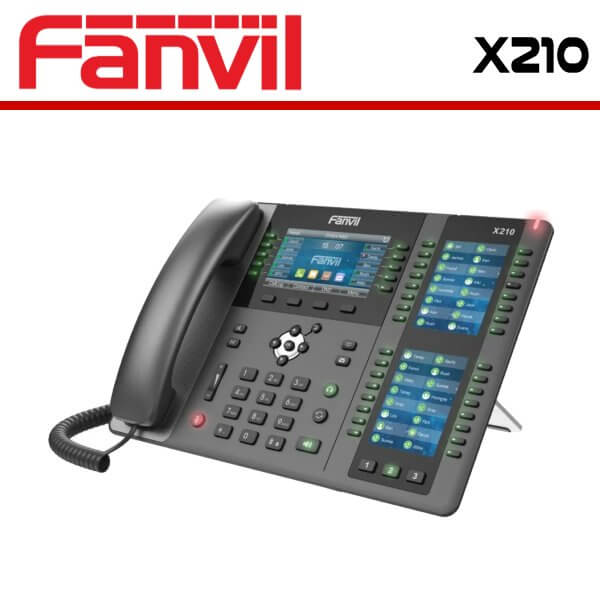

Fanvil X210 Dubai

The Fanvil X210 Dubai is a top-of-the-line IP phone designed for business use. It offers a rich array of features and functions that make it an excellent choice for businesses that require reliable and high-quality communication.

One of the key features of the Fanvil X210 Dubai is its large color touchscreen display. The display measures 4.3 inches and offers a resolution of 480 x 272 pixels, making it easy to read and navigate. The touchscreen interface is intuitive and user-friendly, allowing users to quickly access the phone’s many functions and features.

The Fanvil X210 Dubai is also highly programmable, with support for up to 96 programmable DSS keys. These keys can be programmed with a wide range of functions, including speed dialing, call transfer, and conference calling, among others. The phone also supports up to 60 virtual DSS keys, giving users even more options for customization.

In addition to its advanced programmability, the Fanvil X210 Dubai is also highly compatible with a wide range of VoIP protocols. The phone supports SIP 2.0, IPv6, and various codecs, including G.711a/u, G.723.1, G.726, G.729AB, and iLBC. This makes it an ideal choice for businesses that require interoperability with a variety of different VoIP systems.

Security is also a major priority for the Fanvil X210 Dubai. The phone includes advanced security features such as HTTPS, SRTP, and TLS encryption, which help to ensure the privacy and security of communications. It also includes a built-in VPN client, which allows users to securely connect to a company’s VPN network.

The Fanvil X210 is a highly versatile device, with a range of additional features that make it an excellent choice for business use. The phone includes a built-in Bluetooth module, which allows users to connect a Bluetooth headset for hands-free calling. It also features dual Gigabit Ethernet ports, which support PoE and allow for high-speed data transfer. Additionally, the phone includes a USB port, which can be used to connect peripherals such as a headset or a Wi-Fi dongle.

The Fanvil X210 supports up to 20 SIP lines, making it a powerful and scalable solution for businesses of all sizes. It also includes advanced call management features such as call forwarding, call waiting, and call hold, as well as advanced audio features such as echo cancellation and noise reduction.

In summary, the Fanvil X210 is a high-quality and feature-rich IP phone that is ideally suited for business use. Its large color touchscreen display, advanced programmability, and compatibility with a wide range of VoIP protocols make it an excellent choice for businesses that require reliable and high-quality communication. Its advanced security features, built-in Bluetooth module, dual Gigabit Ethernet ports, and USB port further enhance its versatility and functionality.

Specifications

Generic

20 SIP Lines
HD Voice
Support receiving Video call
PoE Enabled
3 LCDs (Main + DSS)
Handset / Hands-free / Headset mode
Intelligent DSS Keys
Optional External Power Supply

Phone Features

Local Phonebook (2000 entries)
Remote Phonebook (XML/LDAP, 2000 entries)
Call logs (In/out/missed, 1000 entries)
Black/White List Call Filtering
Screen saver
Voice Message Waiting Indication (VMWI)
Programmable DSS/Soft keys
Network Time Synchronization
Built-in Bluetooth 2.1: Support Bluetooth headset
Support Wi-Fi Dongle
Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
Support Recording (Through Flash Drive or Server Recording )
Action URL / Active URI
uaCSTA

Call Features

Call out / Answer / Reject
Mute / Unmute (Microphone)
Call Hold / Resume
Call Waiting
Intercom
Caller ID Display
Speed Dial
Anonymous Call (Hide Caller ID)
Call Forwarding (Always/Busy/No Answer)
Call Transfer (Attended/Unattended)
Call Parking/Pick-up (Depending on server)
Redial
Do-Not-Disturb
Auto-Answering
Voice Message (On server)
3-way Conference
Hot Line
Hot desking

Video

Video codec: H.264
Video call resolution: QCIF / CIF / VGA

Audio

HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
HAC handset
Wideband ADC/DAC 16KHz Sampling
Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB,AMR, iLBC
Wideband Codec: G.722, AMR-WB, Opus
Full-duplex Acoustic Echo Canceller (AEC)
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer up to 300ms
DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Networking

Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
IP Mode:IPv4/IPv6/IPv4&IPv6
IP Configuration: Static / DHCP / PPPoE
Network Access Control: 802.1x
VPN: L2TP / OpenVPN
VLAN
LLDP
QoS
RTCP-XR(RFC3611),VQ-RTCPXR(RFC6035)

Protocols

SIP2.0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
IPv6
LLDP
PPPoE
802.1x
L2TP
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069

Physical Specifications

Main LCD x1: 4.3 inch (480×272) color-screen LCD
DSS Key-mapping LCD x2: 3.5 inch (320×480) color-screen LCD
Keypad: 77 keys
HD Handset (RJ9) x1
Standard RJ9 Handset Wire x1
1.5M CAT5 Ethernet Cable x1
Back Rack x1
RJ9 Port x2: Handset x1, Headset x1
RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
USB2.0 Port x1: Standard A, Connect with Wi-Fi USB dongle or Flash Driver
DC Power Input: 5V/2A
Power Consumption (PoE): 2.6~ 9W
Power Consumption (Adapter): 2.4~8W
Working Temperature: 0~45℃
Working Humidity: 10~95%
Installation: Desktop Stand
Color: Dark gray
 Desktop Stand (Angles 1): 309 x 214 x 187mm
 Desktop Stand (Angles 2): 309 x 226 x 167mm
Gift Box Dimensions: 323 x 301 x 71mm
Outer CTN Dimensions: 624 x 383 x 348mm (10 PCS)
