Description

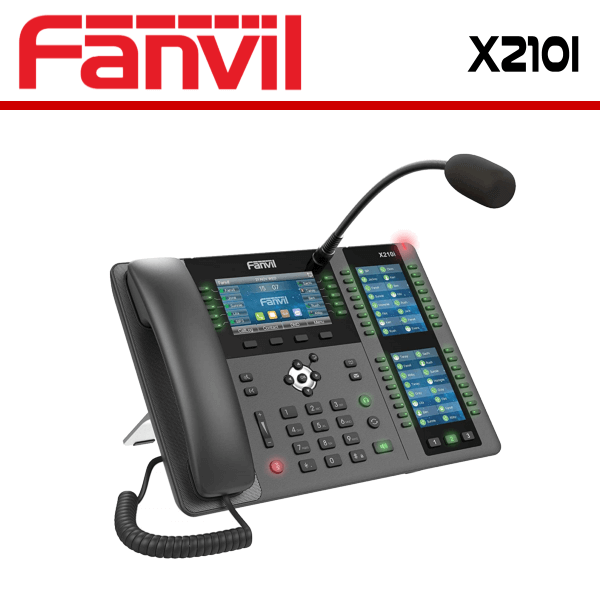

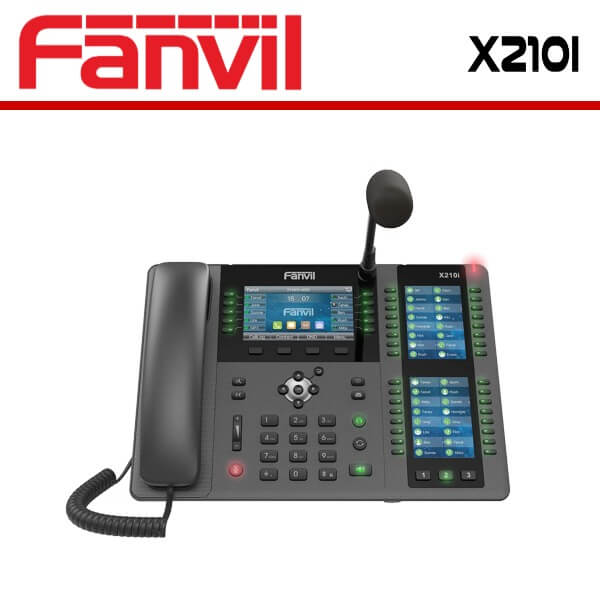

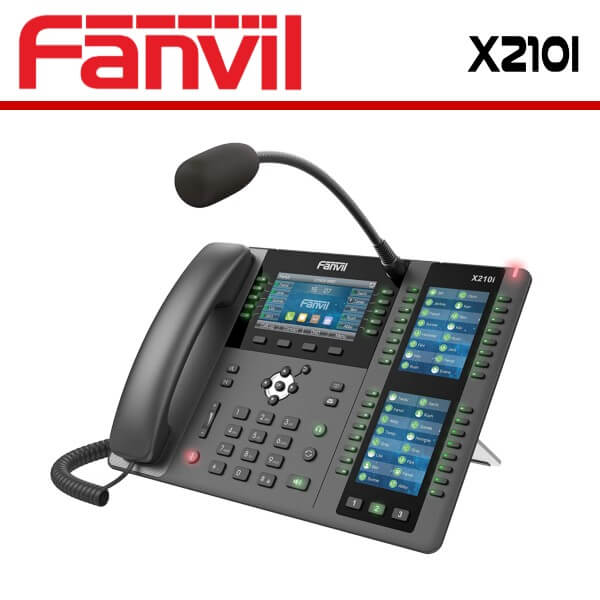

Fanvil X210i Dubai

The Fanvil X210i Dubai Paging Console Phone is a high-performance communication device designed for use in paging and broadcasting applications. The Fanvil X210i Dubai features a durable design, high-quality audio, and support for a wide range of codecs and protocols, making it an ideal solution for organizations seeking a reliable and versatile paging system.

The Fanvil X210i Dubai features a robust and durable construction, with a metal housing and industrial-grade components. The phone is designed to withstand heavy use and operate in demanding environments, making it an excellent choice for industrial facilities, warehouses, and other rugged settings.

The Fanvil X210i Dubai also features high-quality audio, with support for G.722 and HD voice codecs, providing crystal-clear sound quality for communication and broadcasting. This feature is particularly useful for organizations that rely on clear communication, such as emergency response teams, security personnel, and manufacturing plants.

The Fanvil X210i Dubai supports a wide range of codecs and protocols, including SIP, TCP/IP, and DHCP, ensuring seamless integration with existing communication systems. This compatibility allows organizations to incorporate the Fanvil X210i Dubai into their existing infrastructure, without the need for costly upgrades or additional hardware.

The Fanvil X210i Dubai includes advanced features such as PoE support, which allows it to receive power and data over a single Ethernet cable. This feature simplifies installation and reduces cable clutter, making it an excellent choice for organizations seeking a streamlined and efficient paging system.

The Fanvil X210i Dubai also includes two-color LEDs, which provide visual indications of incoming calls, message waiting, and other status notifications. These LEDs are particularly useful for noisy or crowded environments, where audible alerts may be difficult to hear.

The Fanvil X210i Dubai features programmable keys, which can be customized to provide quick access to frequently used features and settings. This feature makes it easy for users to navigate the phone and perform common tasks with ease.

In addition, the Fanvil X210i Dubai includes various security features, including TLS, SRTP, and HTTPS, which help to ensure the privacy and security of communication and broadcasting. These features protect sensitive information and build trust and confidence among users.

Overall, the Fanvil Fanvil X210i Dubai Paging Console Phone is an excellent choice for organizations seeking a reliable and versatile paging system. With its durable construction, high-quality audio, and advanced features, the Fanvil X210i Dubai can help organizations to enhance communication, improve efficiency, and increase safety and security.

Fanvil X210i Specifications

Generic

• 20 SIP Lines
• HD Voice
• Support receiving Video call
• POE Enabled
• 3 LCDs (Main + DSS)
• Handset / Hands-free / Headset mode
• Intelligent DSS Keys
• Optional External Power Supply

Phone Features

• Local Phonebook (2000 entries)
• Remote Phonebook (XML/LDAP, 2000 entries)
• Call logs (In/out/missed, 1000 entries)
• Black/White List Call Filtering
• Screen saver
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft keys
• Network Time Synchronization
• Built-in Bluetooth 2.1: Support Bluetooth headset
• Support Wi-Fi Dongle
• Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
• Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
• Support Recording (Through Flash Drive or Server Recording )
• Action URL / Active URI
• uaCSTA

Call Features

• Call out / Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (Depending on server)
• Redial
• Do-Not-Disturb
• Auto-Answering
• Voice Message (On server)
• 3-way Conference
• Hot Line
• Hot desking

Video

• Video codec: H.264
• Video call resolution: QCIF / CIF / VGA

Audio

• HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHFrequency Response)
• HAC handset
• Wideband ADC/DAC 16KHSampling
• Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB,AMR, iLBC
• Wideband Codec: G.722, AMR-WB, Opus
• Full-duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction  (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Networking

• Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
• IP Mode:IPv4/IPv6/IPv4&IPv6
• IP Configuration: Static / DHCP / PPPoE
• Network Access Control: 802.1x
• VPN: L2TP / OpenVPN
• VLAN
• LLDP
• QoS
• RTCP-XR(RFC3611),VQ-RTCPXR(RFC6035)

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• 802.1x
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• Main LCD x1: 4.3 inch (480×272) color-screen LCD
• DSS Key-mapping LCD x2: 3.5 inch (320×480) color-screen LCD
• Keypad: 77 key
• HD Handset (RJ9) x1
• Standard RJ9 Handset Wire x1
• 1.5M CAT5 Ethernet Cable x1
• Gooseneck Microphone x1 Directional microphone Frequency response: 20Hz~20KHSNR: ı60 dB.1kHat 1 Pa

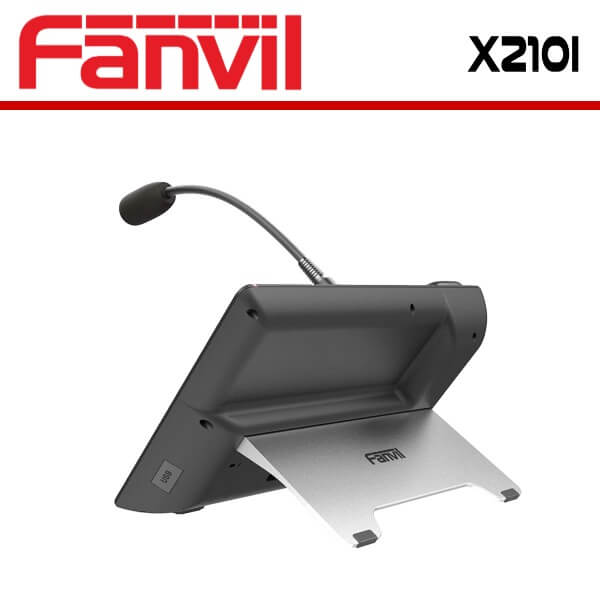

• Back Rack x1
• Gooseneck MIC Port x1: Gooseneck Microphone x1
• RJ9 Port x2: Handset x1, Headset x1
• RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
• USB2.0 Port x1: Standard A, Connect with Wi-Fi USB dongle or Flash Driver
• DC Power Input: 5V/2A
• Power Consumption (PoE): 2.6~ 9W
• Power Consumption (Adapter): 2.4~8W
• Working Temperature: 0~45ć
• Working Humidity: 10~95%
• Installation: Desktop Stand
• Color: Dark gray
• Gift Box Dimensions: 323 x 301 x 71mm
• Outer CTN Dimensions: 624 x 383 x 348mm (10 PCS)
