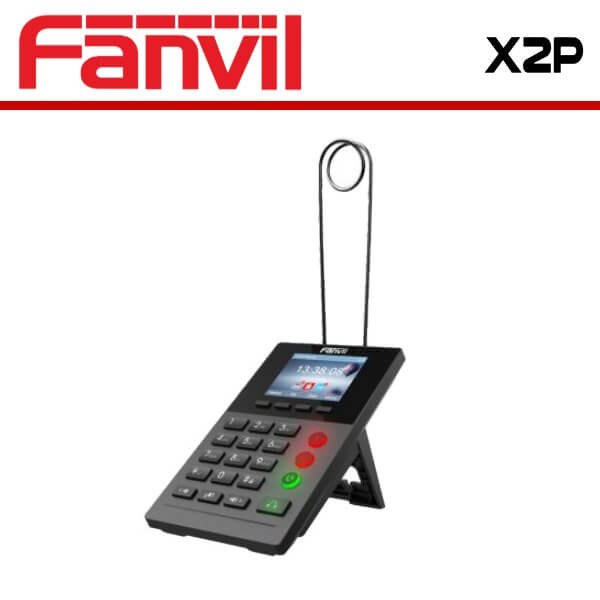

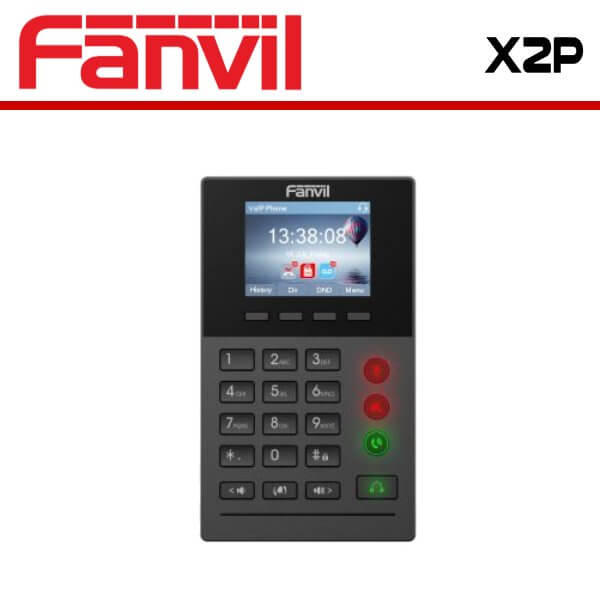

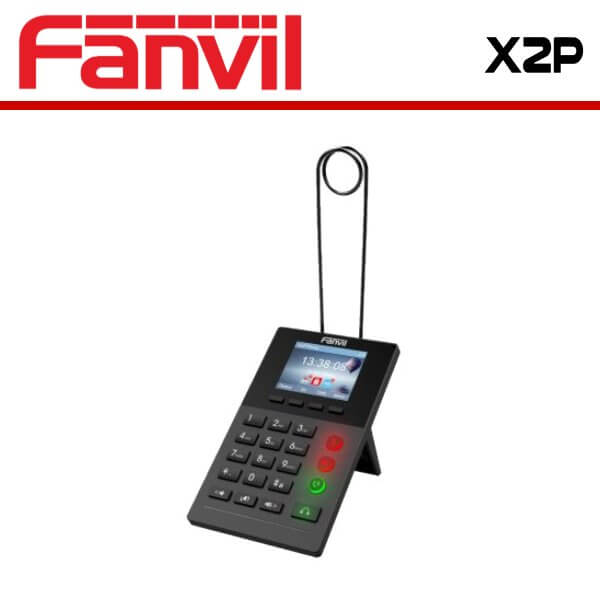

The Fanvil X2p Dubai is an entry-level IP phone designed for use in small to medium-sized businesses. It features a 2.8-inch color screen, support for up to two SIP lines, and a range of basic features such as call hold, call transfer, and three-way conference.

Category:

Description

Fanvil X2p Dubai

The Fanvil X2p Dubai is an entry-level IP phone designed for small to medium-sized businesses. It is a cost-effective phone that offers a range of basic features and capabilities.

The Fanvil X2p Dubai features a 2.8-inch color screen that makes it easy to navigate menus and access phone features. The screen is also customizable, so users can choose to display their preferred wallpaper or logo.

The phone supports up to two SIP lines, which makes it suitable for businesses that only need to manage a small number of calls. The Fanvil X2p Dubai also includes a range of basic call features, such as call hold, call transfer, and three-way conference, which allow users to manage their calls effectively.

One of the benefits of the Fanvil X2p Dubai is its Power over Ethernet (PoE) support. This means that the phone can be powered through an Ethernet cable, eliminating the need for a separate power supply. This can be particularly useful for businesses that want to reduce clutter and simplify their cabling infrastructure.

In terms of connectivity, the Fanvil X2p Dubai includes dual 10/100 Mbps Ethernet ports, which provide reliable network connectivity for high-quality voice calls. The phone also includes an integrated headset jack, which allows users to connect a headset for private calls.

The Fanvil X2p Dubai is also designed with security in mind. The phone supports Secure Real-Time Transport Protocol (SRTP), which provides end-to-end encryption for voice and video calls. The phone also includes support for Transport Layer Security (TLS), which provides secure communication over the internet. Additionally, the phone includes features such as blacklist/whitelist filtering, which allow users to block or allow incoming calls from specific numbers.

Another key feature of the Fanvil X2p Dubai is its high-quality audio. The phone includes a full-duplex speakerphone, which allows users to conduct hands-free calls without sacrificing audio quality. The phone also supports a range of audio codecs, including G.722, G.711, and Opus, which ensure high-quality audio for both voice and video calls.

The Fanvil X2p Dubai is a reliable and affordable IP phone that is designed for small to medium-sized businesses. With its basic yet efficient features, PoE support, and high-quality audio, it is a good option for businesses that need a cost-effective phone solution.

Fanvil X2p Specifications

Generic

  • 2 SIP Lines
  • HD Voice
  • PoE Enabled (X2CP/X2P)
  • Headset mode
  • Optional External Power Supply (X2CP and X2P Optional)

Phone Features

  • Local Phonebook (500 entries)
  • Remote Phonebook (XML/LDAP, 500 entries)
  • Call logs (In/out/missed, 600 entries)
  • Black/White List Call Filtering
  • Screen saver(Only X2P)
  • Voice Message Waiting Indication (VMWI)
  • Programmable Soft keys
  • Network Time Synchronization
  • Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
  • Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
  • Support Recording (Through Server Recording )
  • Action URL / Active URI
  • uaCSTA

Call Features

  • Call out / Answer / Reject
  • Mute / Unmute (Microphone)
  • Call Hold / Resume
  • Call Waiting
  • Intercom
  • Caller ID Display
  • Anonymous Call (Hide Caller ID)
  • Call Forwarding (Always/Busy/No Answer)
  • Call Transfer (Attended/Unattended)
  • Call Parking/Pick-up (Depending on server)
  • Redial
  • Do-Not-Disturb
  • Auto-Answering
  • Voice Message (On server)
  • 3-way Conference
  • Hot Line
  • Hot desking

Audio

  • Wideband ADC/DAC 16KHz Sampling
  • Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB
  • Wideband Codec: G.722
  • Full-duplex Acoustic Echo Canceller (AEC)
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer up to 300ms
  • DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Networking

  • Physical: 10/100Mbps Ethernet, dual bridged port for PC bypass
  • IP Configuration: Static / DHCP / PPPoE
  • Network Access Control: 802.1x
  • VPN: L2TP / OpenVPN
  • VLAN
  • LLDP
  • QoS
  • RTCP-XR(RFC3611), VQ-RTCPXR(RFC6035)

Protocols

  • SIP2.0 over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • LLDP
  • PPPoE
  • 802.1x
  • L2TP
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069

Physical Specifications

  • LCD x1
  • Keypad: 23 keys
  • 1.5M CAT5 Ethernet Cable x1
  • Earphone bracket x1
  • Back Rack x1
  • 3.5mm Port x2: Headset x1, Foot pedal x1
  • RJ9 Port x2: Headset x1, Monitor earphone x1
  • RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
  • DC Power Input: 5V/0.6A
  • Power Consumption: Idle 0.9~1.6W, Peak 1.6~2.5W
  • Working Temperature: 0~45℃
  • Working Humidity: 10~95%
  • Installation: Desktop Stand
  • Color: Black
  • Device Dimensions
