Description

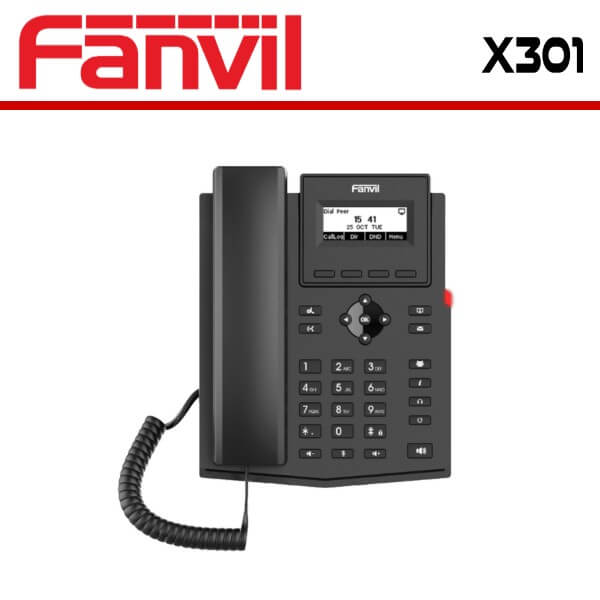

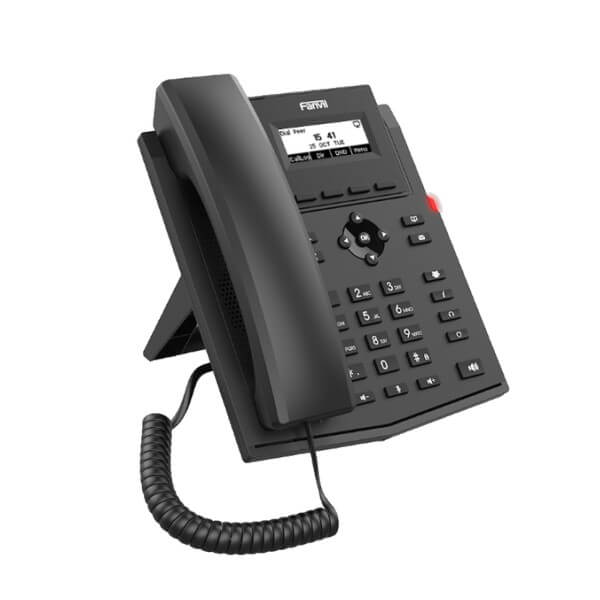

Fanvil X301 Dubai
The Fanvil X301 Dubai is a feature-rich and affordable IP phone designed for small to medium-sized businesses. It is a great choice for businesses that need an affordable phone with basic features and functions.
One of the key features of the Fanvil X301 Dubai is its high-quality audio system. The phone is equipped with a full-duplex speakerphone, which provides clear and natural sound quality for hands-free calls. It also includes advanced audio features such as echo cancellation and noise reduction, which help to ensure that calls are clear and intelligible.
The Fanvil X301 Dubai is highly programmable, with support for up to 2 programmable DSS keys. These keys can be programmed with a variety of functions, including speed dialing, call transfer, and conference calling, among others. The phone also supports up to 5 virtual DSS keys, giving users even more options for customization.
In addition to its advanced programmability, the Fanvil X301 Dubai is also highly compatible with a wide range of VoIP protocols. The phone supports SIP 2.0, IPv6, and various codecs, including G.711a/u, G.723.1, G.726, G.729AB, and iLBC. This makes it an ideal choice for businesses that require interoperability with a variety of different VoIP systems.
Security is also a major priority for the Fanvil X301 Dubai. The phone includes advanced security features such as HTTPS, SRTP, and TLS encryption, which help to ensure the privacy and security of communications. It also includes a built-in VPN client, which allows users to securely connect to a company’s VPN network.
The Fanvil X301 Dubai is a highly versatile device, with a range of additional features that make it an excellent choice for business use. The phone includes a built-in headset port, which allows users to connect a headset for hands-free calling. It also features dual 10/100 Ethernet ports, which support PoE and allow for high-speed data transfer.
The Fanvil X301 Dubai supports up to 2 SIP lines, making it a powerful and scalable solution for small to medium-sized businesses. It also includes advanced call management features such as call forwarding, call waiting, and call hold, as well as advanced audio features such as echo cancellation and noise reduction.
The Fanvil X301 Dubai also includes a range of features that enhance its usability and convenience. For example, it includes a full-duplex speakerphone, which allows users to make hands-free calls with excellent sound quality. It also supports a wide range of ring tones and has a built-in phonebook with a capacity of up to 500 entries.
In summary, the Fanvil X301 Dubai is a high-quality and affordable IP phone that is ideally suited for small to medium-sized businesses. Its high-quality audio system, advanced programmability, and compatibility with a wide range of VoIP protocols make it an excellent choice for businesses that require reliable and high-quality communication. Its advanced security features, built-in headset port, and dual Ethernet ports further enhance its versatility and functionality. With its range of additional features and excellent usability, the Fanvil X301 Dubai is an excellent investment for any business looking to enhance its communication capabilities.
Fanvil X301 Specifications
Generic
2 SIP Lines
HD Voice
PoE Enabled(only X301P)
Dot-matrix display screen
Handset / Hands-free / Headset mode
Desktop Stand / Wall mountable (optional)
Optional External Power Supply
Phone Functions
Local Phonebook (1000 entries)
Remote Phonebook (XML/LDAP, 1000 entries)
Call logs (In/Out/Missed, 600 entries)
Blocked List/Allowed List
Voice Message Waiting Indication (VMWI)
Programmable DSS/Soft keys
Network Time Synchronization
Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
Support Recording (Through Server)
Action URL / Active URI
uaCSTA
Call Functions
Call out / Answer / Reject
Mute / Unmute (Microphone)
Call Hold / Resume
Call Waiting
Intercom
Caller ID Display
Speed Dial
Anonymous Call (Hide Caller ID)
Call Forward(Always/Busy/No Answer)
Call Transfer (Attended/Unattended)
Call Parking/Pick-up (Depending on server)
Redial
Do-Not-Disturb
Auto-Answering
Voice Message (with server)
6-way Conference
Hot Line
Hot desking
Audio
HD Voice Microphone/Speaker
Wideband ADC/DAC 16KHz Sampling
Narrowband Codec: G.711a/u, G.723.1,G.726,G.729A/B, iLBC
Wideband Codec: G.722, Opus
Full-duplex Acoustic Echo Canceller (AEC)
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR) /Automatic Gain Control (AGC)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer
DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
VQM voice quality monitoring
Network
Physical: 10/100 Mbps Ethernet, dual bridged port for PC bypass
IP Mode: IPv4/IPv6
IP Configuration: Static IP / DHCP / PPPoE
Network Access Control: 802.1x
VPN: L2TP / OpenVPN
VLAN
LLDP
QoS
RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
Protocols
SIP2.0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
IPV6
LLDP
PPPoE
802.1x
L2TP
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069
AES128 & AES256
Physical Specifications
LCD: 128×48 pixel graphical LCD with backlight
Keypad: 33 keys
Handset (RJ9) x1
Standard RJ9 Handset Wire x1
1.5M CAT.5E Ethernet Cable x1
Desktop Stand x1
Status Indicator Light x1 (Red)
RJ9 Port x2: Handset x1, Headset x1
RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
Security Slot x1
DC Power Input: 5V/0.6A
Power Consumption(Adapter): 0.8~1.29W
Power Consumption(PoE): 1.25~1.86W
Working Temperature: 0~45℃
Working Humidity: 10~95%
Color: Black
N.W/CTN: 9.05kg(X301), 8.55kg(X301P)
G.W/CTN: 9.76kg(X301), 9.26kg(X301P)
Desktop Stand (45°): 169×201.1×177.4 mm
Desktop Stand (50°): 169×191.9×185.8 mm
Wall mountable: 169×120.1×213.7 mm
Gift Box Dimensions: 250x220x55mm
Outer CTN Dimensions: 460x300x270mm(10 PCS)
