Description

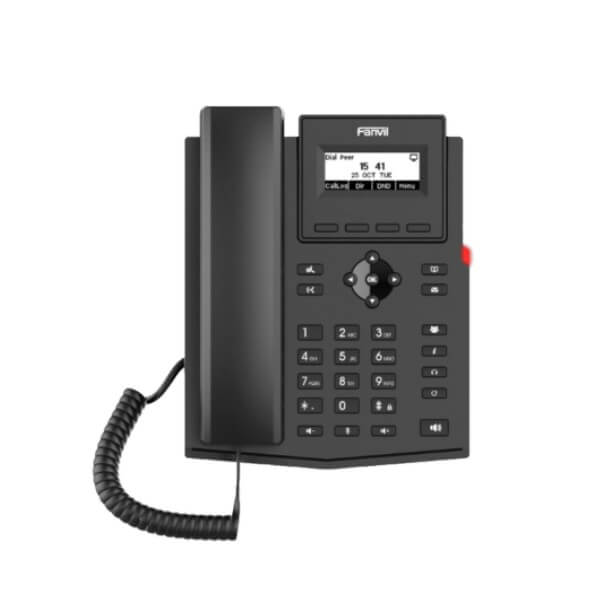

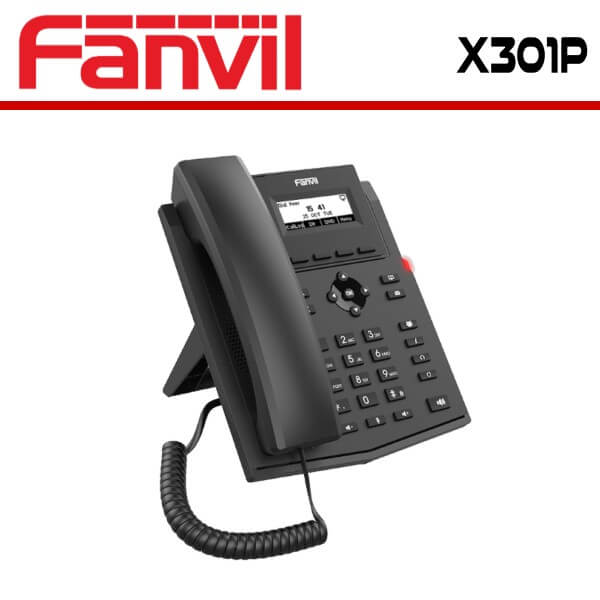

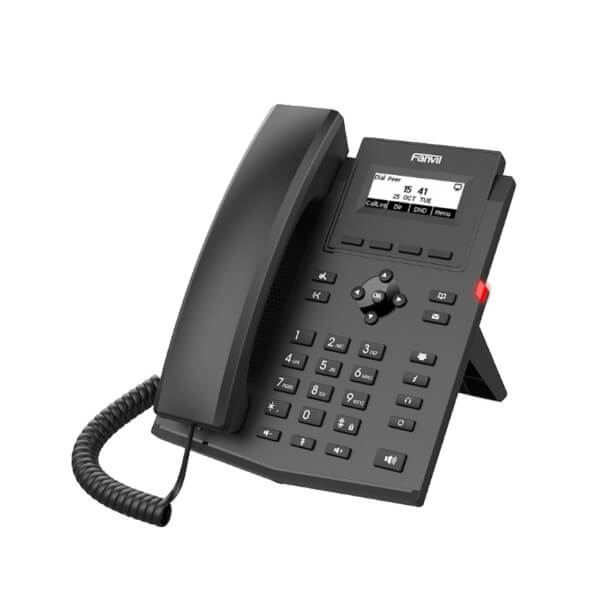

Fanvil X301p Dubai

The Fanvil X301p Dubai is a high-performance, IP-based phone designed for professional use in a wide range of settings, including offices, call centers, and other business environments. This phone offers a range of advanced features and capabilities, including support for multiple lines, high-quality audio, and flexible configuration options.

One of the key features of the Fanvil X301p Dubai is its support for up to three SIP lines, which allows users to manage multiple calls simultaneously without the need for additional hardware. This makes it an ideal choice for businesses that need to handle high call volumes, such as customer service centers or sales teams. The phone also supports a range of call management features, including call forwarding, call transfer, and call waiting, which can help improve efficiency and productivity in the workplace.

In terms of audio quality, the Fanvil X301p Dubai delivers excellent sound performance, thanks to its high-quality speaker and microphone. It also supports a range of audio codecs, including G.711a/u, G.729a/b, G.723.1, and G.722, which ensures compatibility with a wide range of VoIP systems and devices. Additionally, the phone features HD voice technology, which provides crystal-clear voice quality and eliminates background noise, ensuring that every call is easy to hear and understand.

The Fanvil X301p Dubai is also highly configurable, making it easy to set up and customize to meet the specific needs of any business. The phone features a web-based configuration interface, which allows administrators to manage and configure the phone remotely from any computer with an internet connection. It also supports a range of protocols, including HTTP, HTTPS, FTP, TFTP, and DHCP, which ensures easy integration with existing network infrastructure.

Other notable features of the Fanvil X301p Dubai include its support for PoE (Power over Ethernet), which eliminates the need for an external power supply, and its compatibility with a range of third-party devices, including headsets and paging systems. The phone also features a range of security features, including support for TLS, SRTP, and HTTPS, which help ensure that calls and data are always secure and protected.

Overall, the Fanvil X301p Dubai is a powerful and reliable IP phone that offers a range of advanced features and capabilities, making it an ideal choice for businesses of all sizes and industries. With its high-quality audio, flexible configuration options, and advanced call management features, the Fanvil X301p Dubai is a great choice for anyone looking for a top-of-the-line IP phone for professional use.

Specifications

Generic

2 SIP Lines
HD Voice
PoE Enabled(only X301P)
Dot-matrix display screen
Handset / Hands-free / Headset mode
Desktop Stand / Wall mountable (optional)
Optional External Power Supply

Phone Functions

Local Phonebook (1000 entries)
Remote Phonebook (XML/LDAP, 1000 entries)
Call logs (In/Out/Missed, 600 entries)
Blocked List/Allowed List
Voice Message Waiting Indication (VMWI)
Programmable DSS/Soft keys
Network Time Synchronization
Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
Support Recording (Through Server)
Action URL / Active URI
uaCSTA

Call Functions

Call out / Answer / Reject
Mute / Unmute (Microphone)
Call Hold / Resume
Call Waiting
Intercom
Caller ID Display
Speed Dial
Anonymous Call (Hide Caller ID)
Call Forward(Always/Busy/No Answer)
Call Transfer (Attended/Unattended)
Call Parking/Pick-up (Depending on server)
Redial
Do-Not-Disturb
Auto-Answering
Voice Message (with server)
6-way Conference
Hot Line
Hot desking

Audio

HD Voice Microphone/Speaker
Wideband ADC/DAC 16KHz Sampling
Narrowband Codec: G.711a/u, G.723.1,G.726,G.729A/B, iLBC
Wideband Codec: G.722, Opus
Full-duplex Acoustic Echo Canceller (AEC)
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR) /Automatic Gain Control (AGC)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer
DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
VQM voice quality monitoring

Network

Physical: 10/100 Mbps Ethernet, dual bridged port for PC bypass
IP Mode: IPv4/IPv6
IP Configuration: Static IP / DHCP / PPPoE
Network Access Control: 802.1x
VPN: L2TP / OpenVPN
VLAN
LLDP
QoS
RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols

SIP2.0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
IPV6
LLDP
PPPoE
802.1x
L2TP
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069
AES128 & AES256

Physical Specifications

LCD: 128×48 pixel graphical LCD with backlight
Keypad: 33 keys
Handset (RJ9) x1
Standard RJ9 Handset Wire x1
1.5M CAT.5E Ethernet Cable x1
Desktop Stand x1
Status Indicator Light x1 (Red)
RJ9 Port x2: Handset x1, Headset x1
RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
Security Slot x1
DC Power Input: 5V/0.6A
Power Consumption(Adapter): 0.8~1.29W
Power Consumption(PoE): 1.25~1.86W
Working Temperature: 0~45℃
Working Humidity: 10~95%
Color: Black
N.W/CTN: 9.05kg(X301), 8.55kg(X301P)
G.W/CTN: 9.76kg(X301), 9.26kg(X301P)
Desktop Stand (45°): 169×201.1×177.4 mm
Desktop Stand (50°): 169×191.9×185.8 mm
Wall mountable: 169×120.1×213.7 mm
Gift Box Dimensions: 250x220x55mm
Outer CTN Dimensions: 460x300x270mm(10 PCS)
