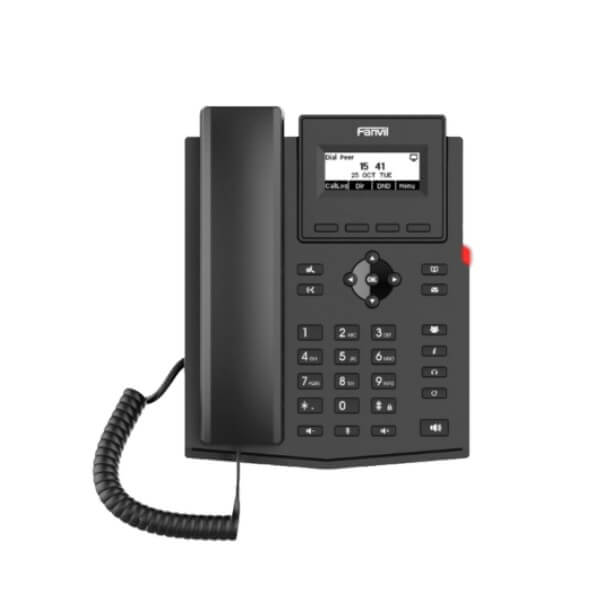

Fanvil X301w Dubai

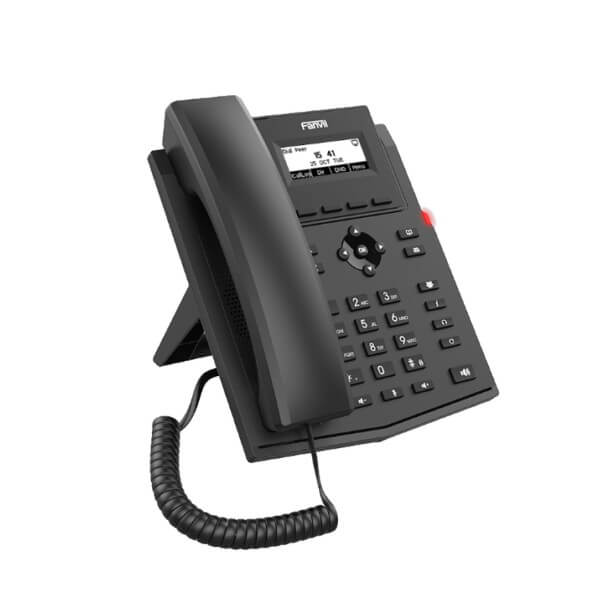

Fanvil X301w Dubai - Image 2

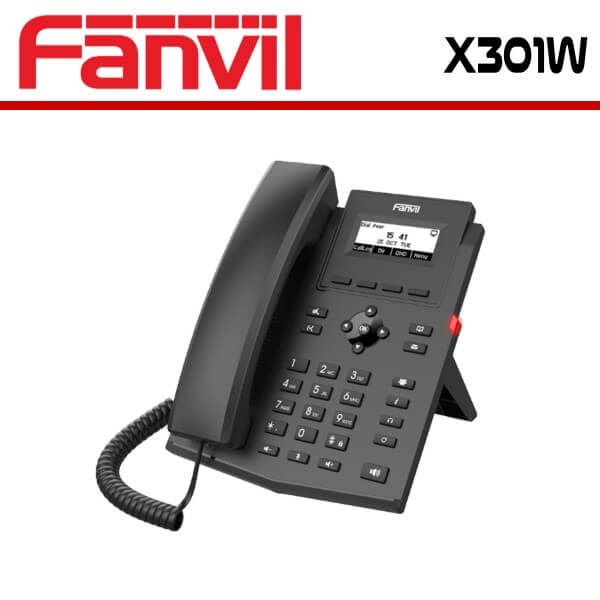

Fanvil X301w Dubai - Image 3

Fanvil X301w Dubai

Fanvil X301w Dubai

The Fanvil X301W Dubai is an IP phone designed for small businesses. It features a 2.4-inch color display, supports up to two SIP accounts, and is built with advanced security protocols like HTTPS, SRTP, and TLS.

Category:

Description

Fanvil X301w Dubai

The Fanvil X301w Dubai is a feature-rich, entry-level IP phone designed for small to medium-sized businesses that need a reliable and cost-effective communication solution. This phone offers a sleek and modern design, with a large LCD display and a user-friendly interface that makes it easy to use and navigate.

One of the standout features of the Fanvil X301w Dubai is its support for Power over Ethernet (PoE), which allows the phone to receive power and data through a single Ethernet cable. This simplifies installation and reduces the need for additional power outlets or wiring.

The phone supports up to two SIP accounts, which can be configured with a variety of features such as call waiting, call forwarding, and three-way conferencing. It also supports a range of codecs, including G.711a/u, G.722, G.723, G.726, and G.729, for high-quality audio and voice transmission.

The Fanvil X301w Dubai also features a number of advanced security features, including support for TLS and SRTP encryption, as well as HTTPS and SRTP verification. This helps ensure that all communication is secure and protected from unauthorized access or interception.

Other notable features of the Fanvil X301w Dubai include a full-duplex speakerphone, support for EHS wireless headsets, and an integrated 10/100 Mbps switch with dual Ethernet ports. The phone also features a variety of customization options, including a range of ringtones and wallpapers, as well as the ability to configure the phone’s LED lights and display settings.

In terms of physical design, the Fanvil X301w Dubai has a compact and ergonomic form factor, with a large 2.8-inch color LCD display and a simple, easy-to-use interface. The phone is constructed from high-quality materials and is designed to be durable and long-lasting.

Overall, the Fanvil X301w Dubai is a reliable and cost-effective IP phone that is packed with features and designed to meet the needs of small to medium-sized businesses. Whether you’re looking for a basic phone for your office or a more advanced solution with advanced security and customization options, the Fanvil X301w Dubai is an excellent choice.

Specifications

Generic

  • 2 SIP Lines
  • HD Voice
  • PoE Enabled
  • Built-in 2.4GHz & 5GHz Wi-Fi
  • Dot-matrix display screen
  • Handset / Hands-free / Headset mode
  • Desktop Stand / Wall mountable (optional)
  • External Power Supply

Phone Functions

  • Local Phonebook (1000 entries)
  • Remote Phonebook (XML/LDAP, 1000 entries)
  • Call logs (In/Out/Missed, 600 entries)
  • Blocked List/Allowed List
  • Voice Message Waiting Indication (VMWI)
  • Programmable DSS/Soft keys
  • Network Time Synchronization
  • Built-in Wi-Fi 2.4GHz, 802.11 b/g/n 5GHz, 802.11 a/n
  • Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
  • Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
  • Support Recording (Through Server)
  • Action URL / Active URI
  • UaCSTA

Call Functions

  • Call out / Answer / Reject
  • Mute / Unmute (Microphone)
  • Call Hold / Resume
  • Call Waiting
  • Intercom
  • Caller ID Display
  • Speed Dial
  • Anonymous Call (Hide Caller ID)
  • Call Forward(Always/Busy/No Answer)
  • Call Transfer (Attended/Unattended)
  • Call Parking/Pick-up (Depending on server)
  • Redial
  • Do-Not-Disturb
  • Auto-Answering
  • Voice Message (with server)
  • 6-way Conference
  • Hot Line
  • Hot desking

Audio

  • HD Voice Microphone/Speaker
  • Wideband ADC/DAC 16KHz Sampling
  • Narrowband Codec: G.711a/u, G.723.1,G.726,G.729A/B, iLBC
  • Wideband Codec: G.722, Opus
  • Full-duplex Acoustic Echo Canceller (AEC)
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) /Automatic Gain Control (AGC)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer
  • DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
  • VQM voice quality monitoring

Network

  • Physical: 10/100 Mbps Ethernet, dual bridged port for PC bypass
  • IP Mode: IPv4/IPv6
  • IP Configuration: Static IP / DHCP / PPPoE
  • Wi-Fi Encryption:WPA /WPA2-PSK /802.X EAP
  • Network Access Control: 802.1x
  • VPN: L2TP / OpenVPN
  • VLAN
  • LLDP
  • QoS
  • RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols

  • SIP2.0 over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • IPV6
  • LLDP
  • PPPoE
  • 802.1x
  • L2TP
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069
  • AES128 & AES256

Physical Specifications

  • LCD: 128×48 pixel graphical LCD with backlight
  • Keypad: 33 keys
  • Handset (RJ9) x1
  • Standard RJ9 Handset Wire x1
  • 1.5M CAT.5E Ethernet Cable x1
  • Desktop stand x1
  • Status Indicator Light x1 (Red)
  • RJ9 Port x2: Handset x1, Headset x1
  • RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
  • Security Slot x1
  • DC Power Input: 5V/ 1A
  • Power Consumption(Adapter): 1.21~2.38W
  • Power Consumption(PoE):2.11~3.47W
  • Working Temperature: 0~45℃
  • Working Humidity: 10~95%
  • Color: Black
  • N.W/CTN: 9kg
  • G.W/CTN: 9.72kg
  • Desktop Stand (45°): 169×201.1×177.4 mm
  • Desktop Stand (50°): 169×191.9×185.8 mm
  • Wall mountable: 169×120.1×213.7 mm
  • Gift Box Dimensions: 250x220x55mm
  • Outer CTN Dimensions: 460x300x270mm(10 PCS)
