Description

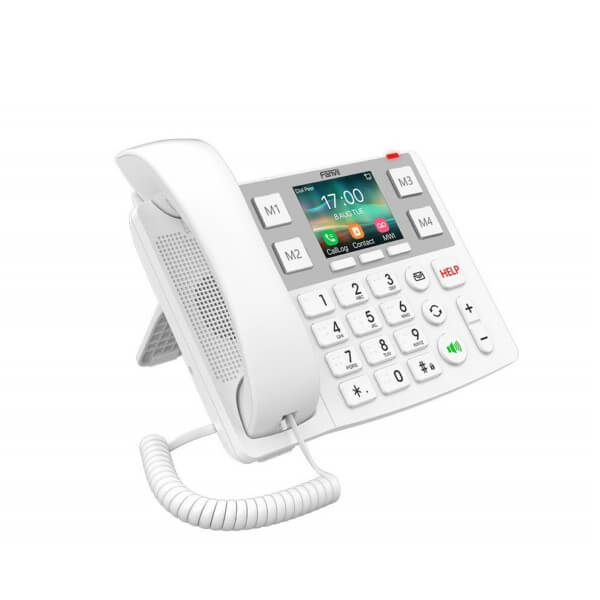

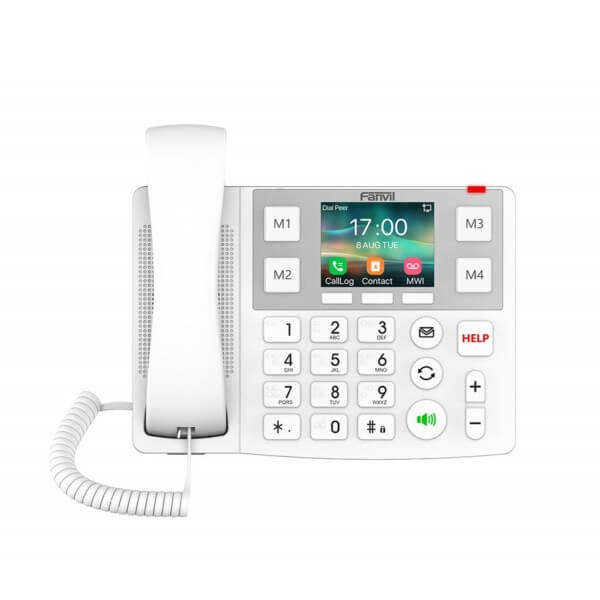

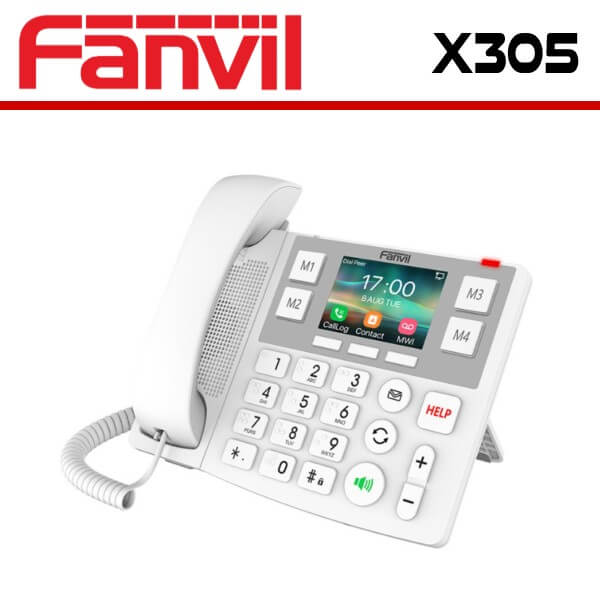

Fanvil X305 Dubai

The Fanvil X305 Dubai is an IP phone with large buttons, specifically created for nursing homes, hospitals, and similar environments. It includes a 3.5-inch color screen and large buttons, supports 2 SIP lines, and comes with PoE power supply to ensure a user-friendly experience. The Fanvil X305 Dubai also has built-in 2.4GHz & 5GHz Wi-Fi and supports 433MHz wireless buttons, delivering an effective and high-quality communication experience for seniors.

Highlights

• 3.5-inch（320×240）color screen
•  10-digit keys with Braille dots to meet special needs
• Support 433 MHz wireless buttons (Fanvil KT 1x/2x/3x Series)
• Four speed dial buttons, support image customization
• Support HD audio, with adjustable volume key
• Built-in bluetooth 4.2 and 2.4GHz/5GHz Wi-Fi
• Hearing Aid compatible (HAC)
• Dual Gigabit ports, integrated PoE
• Desktop / wall-mounted installation

Generic

• 2 SIP Lines
• HD Voice
• PoE Enabled
• 3.5-inch color screen
• DSS keys (support image customization)
• Handset / Hands-free / Headset mode
• Optional External Power Supply

Phone Functions

• Local Phonebook (1000 entries)
• Remote Phonebook (XML/LDAP, 1000 entries)
• Call logs (In/Out/Missed, 600 entries)
• Black/White List Call Filter
• Screen saver
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft keys
• Network Time Synchronization
• Support Bluetooth 4.2
• Built-in Wi-Fi
•  2.4G, 802.11 b/g/n
•  5G, 802.11 a/n
• Support Plantronics wireless headset (Through Plantronics
• APD-80 EHS Cable)
• Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
• Support 433MHz wireless buttons (Fanvil KT 1x/2x/3x Series)
• Support Recording (Through Server & Flash Driver)
• Action URL / Active URI
• uaCSTA

Call Functions

• Call out / Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Anonymous Call (Hide Caller ID)
• Call Forward (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (Depending on server)
• Redial
• Do-Not-Disturb
• Auto-Answering
• Voice Message (With server or flash driver)
• Hot Line
• Hot desking

Audio

• HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
• HAC handset
• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec: G.711a/u, G.723.1, G.726, G.729A/B, iLBC
• Wideband Codec: G.722, Opus
• Full-duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) /Automatic Gain Control (AGC)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
• VQM: voice quality monitoring
• Support sidetone

Network

• Physical: 10/100/1000Mbps Ethernet, dual bridged port for PC bypass
• IP Mode: IPv4/IPv6/IPv4&IPv6
• IP Configuration: Static IP / DHCP / PPPoE
• Network Access Control: 802.1x
• Wi-Fi Encryption: WPA/WPA2-PSK /802.X EAP
• VPN: L2TP / OpenVPN
• VLAN
• LLDP
• QoS
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• 802.1x
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069
• AES128 & AES256

Deployment & Management

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP
• PNP/TR-069
• Web Management Portal
• Web-based Packet Dump
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog

Physical Specifications

• LCD: 3.5-inch (320×240) Color Screen
• Up to 10 wireless emergency buttons supported
• 433 wireless emergency buttons specification：
•  communication mode：FSK
•  working frequency：433MHZ
•  communication protocol：Ebelong1.1
• Keypad:
•  4 DSS keys
•  3 Soft-keys
•  3 Function keys (MWI, Redial, HELP)
•  10 Standard Phone Digit keys
•  2 Volume Control keys (Up/Down)
•  1 Hands-free key
• HD Handset (RJ9) x1
• Standard RJ9 Handset cord x1
• 1.5M CAT.5E Ethernet cable x1
• Back Rack x1
• Status Indicator Light x1 (Red)
• RJ9 Port x2: Handset x1, Headset x1
• RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
• USB2.0 Port x1: Standard A, connect with flash driver & USB headset
• Security Slot x1
• DC Power Input: DC5V / 2A
• Power Consumption (PoE):1.65W~9.07W
• Power Consumption (Adapter):1.09W~6.76W
• Working Temperature: 0~45℃
• Working Humidity: 10~95%
• Installation:
•  Desktop Stand
•  Wall-mounted (optional)
• Color: white
• N.W/CTN: 12.1 kg
• G.W/CTN: 12.7 kg
• Device Dimensions:
•  Desktop Stand (Angles 1: 45 degree): 236×157.4×162.4mm
•  Desktop Stand (Angles 2: 55 degree): 236×142.3x179mm
•  Wall-mounted: 236×98.9×204.2mm
• Gift Box Dimensions: 340x195x72mm
• Outer CTN Dimensions: 410x385x360mm (10 PCS)
