Fanvil X4 Dubai
Fanvil X4 Dubai - Image 2

Fanvil X4 Dubai

Fanvil X4 Dubai

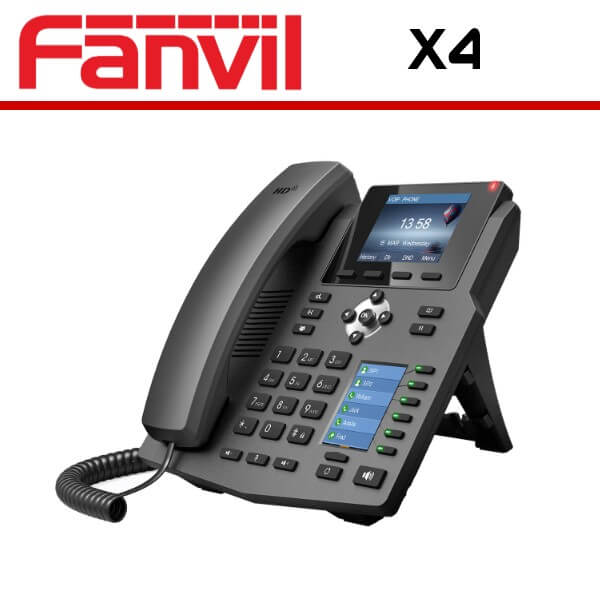

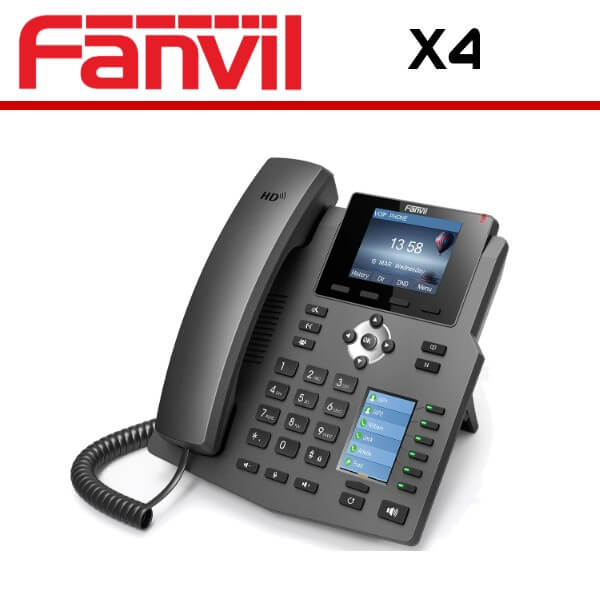

The Fanvil X4 Dubai is an IP phone that is designed for business use. It features a 2.8-inch color screen, HD audio, and support for up to 4 SIP lines. The phone has a built-in RJ9 headset jack, and it supports the EHS wireless headset.

Category:

Description

Fanvil X4 Dubai

The Fanvil X4 Dubai is an advanced IP phone designed for business use. It is a reliable and cost-effective solution for businesses that require a high-quality phone system. The X4 has a range of features that make it an ideal choice for businesses of all sizes.

One of the key features of the Fanvil X4 Dubai is its 2.8-inch color screen, which provides users with an intuitive and easy-to-use interface. The screen is easy to read, and it displays a range of information, including caller ID, call history, and phone status.

The Fanvil X4 Dubai also features HD audio, which provides crystal-clear sound quality. This is ideal for businesses that need to communicate with clients or colleagues on a regular basis. The phone also supports up to 4 SIP lines, which enables users to manage multiple calls simultaneously.

The Fanvil X4 Dubai also has a built-in RJ9 headset jack, which makes it easy to use with a headset. Additionally, the phone supports the EHS wireless headset, which provides users with even greater flexibility.

The Fanvil X4 Dubai has two Ethernet ports, which enable users to connect their computer to the phone. This is ideal for businesses that need to transfer files or access the internet while on a call. The phone also supports PoE, which means that it can be powered using an AC adapter or through the Ethernet cable.

The Fanvil X4 Dubai has a sleek and modern design, which is sure to complement any workspace. The phone is easy to use, and it comes with a range of customization options, including programmable keys and wallpaper.

The Fanvil X4 Dubai also has a range of advanced features, including call forwarding, call waiting, and call transfer. These features make it easy for users to manage their calls and ensure that they never miss an important call.

Overall, the Fanvil X4 Dubai is a reliable and cost-effective solution for businesses that require a high-quality phone system. Its advanced features, HD audio, and sleek design make it an ideal choice for businesses of all sizes. Additionally, the phone is easy to use and comes with a range of customization options, making it a versatile and flexible solution.

Fanvil X4 Specifications

Generic

  •  4 SIP Lines
  •  HD Voice
  •  POE Enabled
  •  2 LCDs (Main + DSS)
  •  Handset / Hands-free / Headset mode
  •  Intelligent DSS Keys
  •  Desktop / Wall-mount installation
  •  Optional External Power Supply

Call Features

  •  Call out / Answer / Reject
  •  Mute / Unmute (microphone)
  •  Call Hold / Resume
  •  Call Waiting
  •  Intercom
  •  Caller ID Display
  •  Speed Dial
  •  Anonymous Call (Hide Caller ID)
  •  Call Forwarding (Always/Busy/No Answer)
  •  Call Transfer (Attended/Unattended)
  •  Call Parking/Pick-up (depending on server)
  •  Redial/Auto-Redial
  •  Do-Not-Disturb
  •  Auto-Answering
  •  Voice Message (on server)
  •  3-way Conference
  •  Hot Line
  •  Hot desking

Phone Features

  •  Local Phonebook (500 entries)
  •  Remote Phonebook (XML/LDAP, 500 entries)
  •  Call logs ( in/out/missed, 600 entries)
  •  Black/White List Call Filtering
  •  Screen saver
  •  Voice Message Waiting Indication (VMWI)
  •  Programmable DSS/Soft keys
  •  Network Time Synchronization
  •  Support Plantronics wireless headset (Through Plantronics APD-80
  • EHS Cable)
  •  Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
  •  Support Recording (Through Server Recording )
  •  Action URL / Active URI
  •  uaCSTA

Audio

  •  HD Voice Microphone/Speaker (Handset/Hands-free, 0~7KHz
  • Frequency Response)
  •  Wideband ADC/DAC16KHz Sampling
  •  Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
  •  Wideband CODEC: G.722
  •  Full-duplex Acoustic Echo Canceller (AEC)
  •  Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /
  • Background Noise Estimation (BNE) / Noise Reduction (NR)
  •  Packet Loss Concealment (PLC)
  •  Dynamic Adaptive Jitter Buffer up to 300ms
  •  DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Networking

  •  Physical: 10/100Mbps(X4), 10/100/1000Mbps(X4G) Ethernet, dual bridged port for PC bypass
  •  IP Configuration: Static / DHCP / PPPoE
  •  Network Access Control: 802.1x
  •  VPN: L2TP / OpenVPN
  •  LLDP
  •  QoS
  •  RTCP-XR(RFC3611), VQ-RTCPXR(RFC6035)

Protocols

  •  SIP2.0 over UDP/TCP/TLS
  •  RTP/RTCP/SRTP
  •  STUN
  •  DHCP
  •  PPPoE
  •  LLDP
  •  802.1x
  •  L2TP
  •  OpenVPN
  •  SNTP
  •  FTP/TFTP
  •  HTTP/HTTPS
  •  TR-069

Physical Specifications

  •  Main LCD x1: 2.8 inch (320×240) color-screen LCD
  •  DSS Key-mapping LCD x1: 2.4 inch color-screen LCD
  •  Keypad: 38 keys
  •  HD Handset (RJ9) x1
  •  Standard RJ9 Handset Wire x1
  •  1.5M CAT5 Ethernet Cable x1
  •  Back Rack x1
  •  RJ9 Port x2: Handset x1, Headset x1
  •  RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
  •  DC Power Input: 5V/600mA(X4), 5V/1A(X4G)
  •  Power Consumption (X4): Idle 1.2W~1.9W, Peak 2.4W~3.5W
  •  Power Consumption (X4G): Idle 1.8W~2.5W, Peak 3W~4.5W
  •  Working Temperature: 0~40℃
  •  Working Humidity: 10~95%
  •  Installation: Desktop Stand or Wall-mount
  •  Color: Black
  •  Device Dimensions:
    •  Desktop Stand (angles 1): 196x169x172mm
    •  Desktop Stand (angles 2): 196×185.7x153mm
    •  Wall-mount: 196×102.9x218mm
  •  Gift Box Dimensions: 270x270x65mm
  •  Outer CTN Dimensions: 555x340x290mm (10 PCS)
