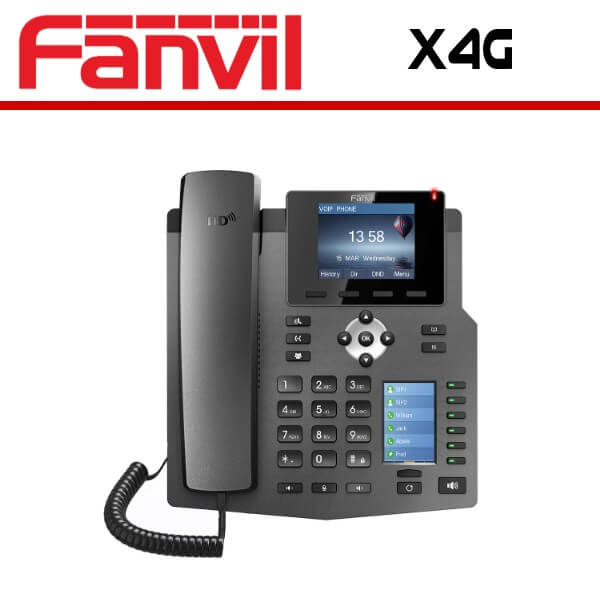

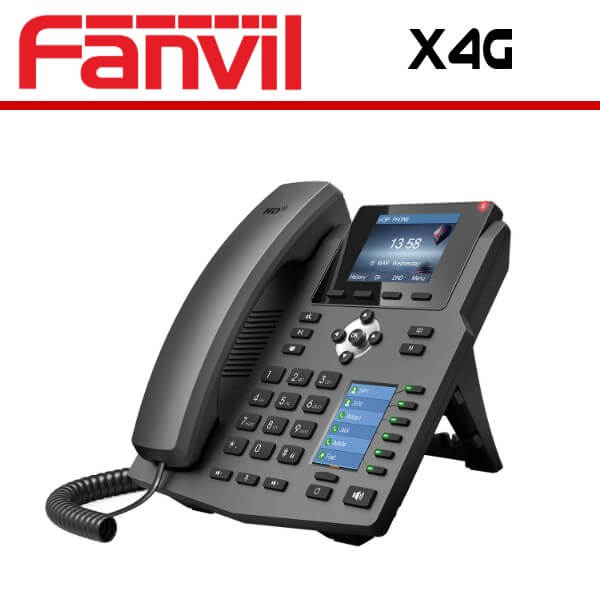

Fanvil X4G Dubai

Fanvil X4G Dubai

The Fanvil X4G Dubai is an IP phone designed for use in professional settings, such as offices, call centers, and other business environments. It features a 2.8-inch color screen, support for up to four SIP lines, and a range of advanced features including call forwarding, call waiting, and call transfer. The phone also supports Power over Ethernet (PoE) and includes Gigabit Ethernet for fast and reliable network connectivity.

Category:

Description

Fanvil X4G Dubai

The Fanvil X4G Dubai is an IP phone designed for professional use in business settings. It is a high-quality, feature-rich phone that offers a range of advanced features and capabilities.

One of the standout features of the Fanvil X4G Dubai is its 2.8-inch color screen. This screen makes it easy to navigate menus, view caller ID information, and access other phone features. The screen is also customizable, so users can choose to display their preferred wallpaper or logo.

The Fanvil X4G Dubai supports up to four SIP lines, which makes it ideal for businesses that need to manage multiple calls simultaneously. This can be particularly useful for call centers, where agents may need to handle incoming and outgoing calls for different departments or customers. The phone also supports a range of call features, such as call forwarding, call waiting, and call transfer, which make it easier for users to manage their calls efficiently.

In terms of connectivity, the Fanvil X4G Dubai supports Power over Ethernet (PoE), which means it can be powered through an Ethernet cable rather than requiring a separate power supply. This can be particularly useful for businesses that want to reduce clutter and simplify their cabling infrastructure. The phone also includes Gigabit Ethernet, which provides fast and reliable network connectivity for high-quality voice calls.

Another key feature of the Fanvil X4G Dubai is its high-quality audio. The phone includes a full-duplex speakerphone, which allows users to conduct hands-free calls without sacrificing audio quality. The phone also includes an integrated headset jack, which allows users to connect a headset for private calls. Additionally, the phone supports a range of audio codecs, including G.722, G.711, and Opus, which ensure high-quality audio for both voice and video calls.

The Fanvil X4G Dubai is also designed with security in mind. It supports Secure Real-Time Transport Protocol (SRTP), which provides end-to-end encryption for voice and video calls. The phone also includes support for Transport Layer Security (TLS), which provides secure communication over the internet. Additionally, the phone includes features such as blacklist/whitelist filtering, which allow users to block or allow incoming calls from specific numbers.

Overall, the Fanvil X4G Dubai is a high-quality, feature-rich IP phone that is designed for use in professional business settings. With its advanced features, high-quality audio, and secure design, it is a popular choice for businesses looking for a reliable and efficient IP phone solution.

Fanvil X4G Specifications

Generic

  •  4 SIP Lines
  •  HD Voice
  •  POE Enabled
  •  2 LCDs (Main + DSS)
  •  Handset / Hands-free / Headset mode
  •  Intelligent DSS Keys
  •  Desktop / Wall-mount installation
  •  Optional External Power Supply

Call Features

  •  Call out / Answer / Reject
  •  Mute / Unmute (microphone)
  •  Call Hold / Resume
  •  Call Waiting
  •  Intercom
  •  Caller ID Display
  •  Speed Dial
  •  Anonymous Call (Hide Caller ID)
  •  Call Forwarding (Always/Busy/No Answer)
  •  Call Transfer (Attended/Unattended)
  •  Call Parking/Pick-up (depending on server)
  •  Redial/Auto-Redial
  •  Do-Not-Disturb
  •  Auto-Answering
  •  Voice Message (on server)
  •  3-way Conference
  •  Hot Line
  •  Hot desking

Phone Features

  •  Local Phonebook (500 entries)
  •  Remote Phonebook (XML/LDAP, 500 entries)
  •  Call logs ( in/out/missed, 600 entries)
  •  Black/White List Call Filtering
  •  Screen saver
  •  Voice Message Waiting Indication (VMWI)
  •  Programmable DSS/Soft keys
  •  Network Time Synchronization
  •  Support Plantronics wireless headset (Through Plantronics APD-80
  • EHS Cable)
  •  Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
  •  Support Recording (Through Server Recording )
  •  Action URL / Active URI
  •  uaCSTA

Audio

  •  HD Voice Microphone/Speaker (Handset/Hands-free, 0~7KHz
  • Frequency Response)
  •  Wideband ADC/DAC16KHz Sampling
  •  Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
  •  Wideband CODEC: G.722
  •  Full-duplex Acoustic Echo Canceller (AEC)
  •  Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /
  • Background Noise Estimation (BNE) / Noise Reduction (NR)
  •  Packet Loss Concealment (PLC)
  •  Dynamic Adaptive Jitter Buffer up to 300ms
  •  DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Networking

  •  Physical: 10/100Mbps(X4), 10/100/1000Mbps(X4G) Ethernet, dual bridged port for PC bypass
  •  IP Configuration: Static / DHCP / PPPoE
  •  Network Access Control: 802.1x
  •  VPN: L2TP / OpenVPN
  •  LLDP
  •  QoS
  •  RTCP-XR(RFC3611), VQ-RTCPXR(RFC6035)

Protocols

  •  SIP2.0 over UDP/TCP/TLS
  •  RTP/RTCP/SRTP
  •  STUN
  •  DHCP
  •  PPPoE
  •  LLDP
  •  802.1x
  •  L2TP
  •  OpenVPN
  •  SNTP
  •  FTP/TFTP
  •  HTTP/HTTPS
  •  TR-069

Physical Specifications

  •  Main LCD x1: 2.8 inch (320×240) color-screen LCD
  •  DSS Key-mapping LCD x1: 2.4 inch color-screen LCD
  •  Keypad: 38 keys
  •  HD Handset (RJ9) x1
  •  Standard RJ9 Handset Wire x1
  •  1.5M CAT5 Ethernet Cable x1
  •  Back Rack x1
  •  RJ9 Port x2: Handset x1, Headset x1
  •  RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
  •  DC Power Input: 5V/600mA(X4), 5V/1A(X4G)
  •  Power Consumption (X4): Idle 1.2W~1.9W, Peak 2.4W~3.5W
  •  Power Consumption (X4G): Idle 1.8W~2.5W, Peak 3W~4.5W
  •  Working Temperature: 0~40℃
  •  Working Humidity: 10~95%
  •  Installation: Desktop Stand or Wall-mount
  •  Color: Black
  •  Device Dimensions:
    •  Desktop Stand (angles 1): 196x169x172mm
    •  Desktop Stand (angles 2): 196×185.7x153mm
    •  Wall-mount: 196×102.9x218mm
  •  Gift Box Dimensions: 270x270x65mm
  •  Outer CTN Dimensions: 555x340x290mm (10 PCS)
