Description

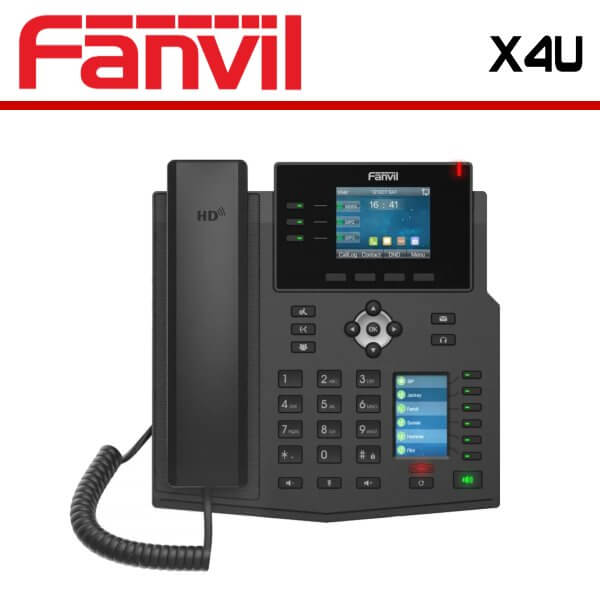

Fanvil X4U Dubai

The Fanvil X4U Dubai IP phone is a sophisticated communication device that is designed for professional use. It offers a range of advanced features and capabilities that make it an excellent choice for businesses of all sizes.

The phone features a 4.3-inch color display with an intuitive menu navigation system that makes it easy to use. The screen is bright and clear, and the resolution is high enough to make reading and typing text easy. The phone also has six programmable buttons, which can be customized to suit your individual needs. These buttons can be used to quickly access frequently used functions or to make calls to specific contacts.

One of the key features of the Fanvil X4U Dubai IP phone is its support for up to 12 SIP lines. This means that it can be used by multiple users within an organization, making it a cost-effective solution for businesses with high call volumes. The phone also supports HD audio quality with wideband codecs, ensuring that conversations are clear and easy to understand. The built-in speakerphone is also of high quality, allowing users to make and receive calls without having to hold the phone to their ear.

In addition to these features, the Fanvil X4U Dubai IP phone also supports EHS-compatible wireless headsets. This allows users to work hands-free and multi-task while on a call. The phone is also compatible with a range of other accessories, such as Bluetooth dongles and Wi-Fi adapters, making it a versatile communication tool.

Security is a major concern for businesses when it comes to communication devices. The Fanvil X4U Dubai IP phone includes advanced security features to help protect your sensitive information. It supports TLS/SRTP encryption, which ensures that all communication is secure and cannot be intercepted by unauthorized parties. The phone also supports 802.1X authentication, which allows you to control access to your network and ensure that only authorized users can use the phone.

The Fanvil X4U Dubai IP phone is also easy to manage and provision. It can be configured and updated using its web interface or through remote management tools. This allows you to quickly deploy the phone across your organization and ensure that all users have access to the latest features and security updates.

Overall, the Fanvil X4U Dubai IP phone is a powerful and feature-rich communication device that is ideally suited to professional use. It offers a range of advanced features and capabilities that make it easy to use, secure, and versatile. Whether you are looking for a communication solution for a small business or a large organization, the Fanvil X4U Dubai IP phone is an excellent choice.

Fanvil X4U Specifications

Generic

• 12 SIP Lines
• HD Voice
• PoE Enabled
• 2 LCDs (Main + DSS)
• Handset / Hands-free / Headset mode
• Intelligent DSS Keys
• Desktop Stand / Wall-mounted (need an additional wall hanging parts)
• Optional External Power Supply

Phone Functions

• Local Phonebook (1000 entries)
• Remote Phonebook (XML/LDAP, 1000 entries)
• Call logs (In/Out/Missed, 1000 entries)
• Black/White List Call Filter
• Screen saver
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft keys
• Network Time Synchronization
• Support Bluetooth headset (Through USB Dongle BT20)
• Support Wi-Fi Dongle
• Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
• Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
• Support Recording (Through Flash Drive or Server)
• Action URL / Active URI
• uaCSTA

Call Functions

• Call out / Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forward (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (Depending on server)
• Redial
• Do-Not-Disturb
• Auto-Answering
• Voice Message (With server)
• 3-way Conference
• Hot Line
• Hot desking

Audio

• HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
• HAC handset
• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB,AMR, iLBC
• Wideband Codec: G.722, AMR-WB, Opus
• Full-duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Network

• Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
• IP Mode:IPv4/IPv6/IPv4&IPv6
• IP Configuration: Static IP / DHCP / PPPoE
• Network Access Control: 802.1x
• VPN: L2TP / OpenVPN
• VLAN
• LLDP
• QoS
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• 802.1x
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• Main LCD x1: 2.8-inch (320×240) Color Screen
• DSS Key-mapping LCD x1: 2.4-inch (240×320) Color Screen
• Keypad: 41 keys
• HD Handset (RJ9) x1
• Standard RJ9 Handset Wire x1
• 1.5M CAT5 Ethernet Cable x1
• Back Rack x1
• Status Indicator Light x1 (Red)
• RJ9 Port x2: Handset x1, Headset x1
• RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
• USB2.0 Port x1: Standard A, Connect with USB dongle(BT or Wi-Fi)or Flash Driver
• Safety Keyhole x1
• DC Power Input: 5V/2A
• Power Consumption (PoE): 1.7W~10.46W
• Power Consumption (Adapter): 1.38W~9.13W
• Working Temperature: 0~45℃
• Working Humidity: 10~95%
• Color: Black
• Gift Box Dimensions: 315x228x84 mm
• Outer CTN Dimensions: 476x440x335 mm (10 PCS)
