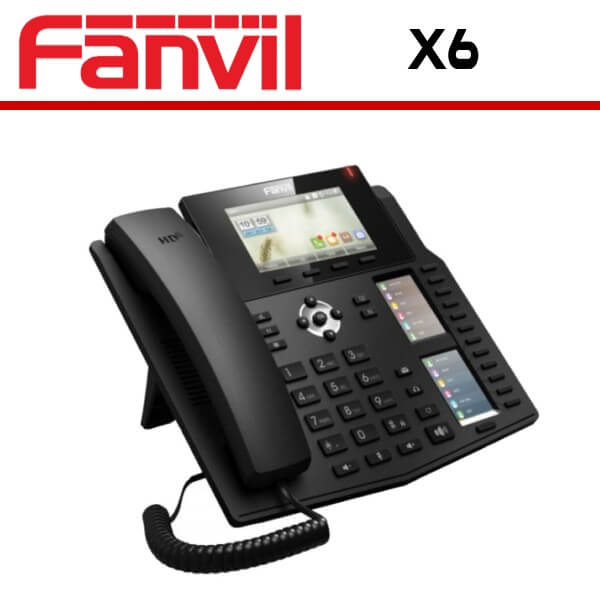

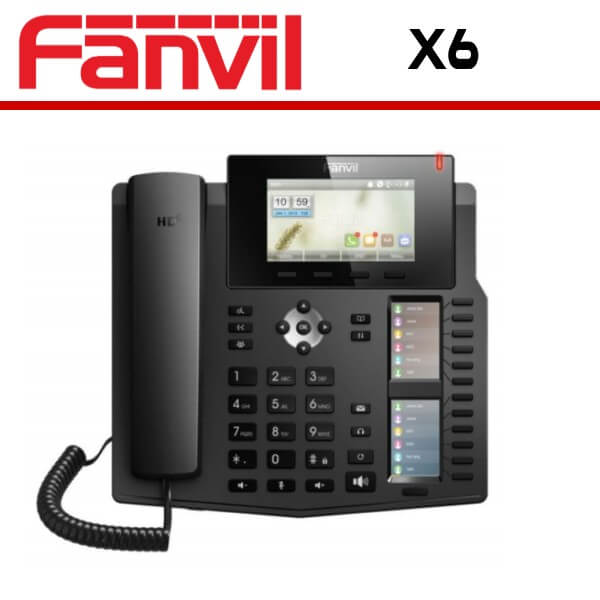

Fanvil X6 Dubai

The Fanvil X6 Dubai is an advanced IP phone designed for business use. It offers a wide range of features that make it highly efficient and versatile, including support for up to six SIP lines, a 4.3-inch color LCD screen, built-in Bluetooth and Wi-Fi connectivity, and advanced audio technologies.

One of the key features of the Fanvil X6 Dubai is its support for up to six SIP lines. This enables users to manage multiple phone numbers and call plans on a single device, making it ideal for businesses with different departments or teams. The device also supports various codecs, including G.711a/u, G.722, G.723, G.726, G.729, and iLBC, ensuring high-quality audio communication.

The Fanvil X6 Dubai features a 4.3-inch color LCD screen with a resolution of 480×272 pixels. The screen displays important information, such as caller ID, call duration, call history, and contacts. The device also supports up to 60 programmable DSS keys, enabling users to customize their phone according to their needs and preferences.

Another notable feature of the Fanvil X6 Dubai is its built-in Bluetooth and Wi-Fi connectivity. This enables users to connect to wireless networks and devices, such as headsets, smartphones, and tablets. The device also supports EHS (Electronic Hook Switch) and supports various types of headsets, including wireless, wired, and Bluetooth.

The Fanvil X6 Dubai also features a full-duplex speakerphone with advanced audio technologies, such as noise reduction and echo cancellation. The device has an adjustable volume control and supports HD audio, ensuring that users can communicate clearly and effectively. It also has a built-in microphone and a 3.5mm audio jack, enabling users to connect external speakers or headphones.

The Fanvil X6 Dubai is highly customizable and configurable. It supports various features, such as LDAP, XML phonebook, and multiple languages, making it suitable for use in various international settings. The device also supports Power over Ethernet (PoE), which means that it can receive power and data over a single Ethernet cable. This feature eliminates the need for additional power cables, making installation easy and cost-effective.

In conclusion, the Fanvil X6 Dubai is an advanced IP phone that is highly suitable for business use. Its support for up to six SIP lines, programmable DSS keys, and advanced audio technologies make it highly efficient and versatile. Its built-in Bluetooth and Wi-Fi connectivity, PoE support, and customizable features make it easy to use and highly adaptable to different settings. Whether for personal or professional use, the Fanvil X6 Dubai is an excellent choice for anyone looking for a reliable, high-performance IP phone.

Fanvil X6 Specifications

Generic

• 6 SIP Lines
• HD Voice
• POE Enabled
• 3 LCDs (Main + DSS)
• Handset(HS) / Hands-free(HF) / Headphone(HP) mode
• Intelligent DSS Keys
• Desktop / Wall-mount installation
• Optional External Power Supply
• Economical and Environmental friendly package
• Industrial Standard Certifications: CE/FCC

Call Features

• Call out / answer / reject
• Mute / Unmute (microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (depending on server)
• Redial
• Do-Not-Disturb (per line / per phone)
• Auto-Answering (per line)
• Voice Message (on server)
• Local 3-way Conference
• Hot Line
• Hot-Desking

Phone Features

• Phonebook (1000 entries)
• Remote Phonebook (XML/LDAP)
• Call log (300 entries, in/out/missed)
• Black/White List Call Filtering
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft keys
• Network Time Synchronization
• Action URL / Active URI

Audio

• HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~7KHz Frequency Response)
• Wideband ADC/DAC 16KHz Sampling
• Narrowband CODEC: G.711a/u, G.723.1, G.726-32K,G.729AB, AMR,iLBC
• Wideband CODEC: G.722, AMR-WB,
• Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Networking

• Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
• IP Configuration: Static / DHCP / PPPoE
• Network Access Control: 802.1x
• VPN: L2TP (Basic Unencrypted) / OpenVPN
• VLAN
• QoS

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• PPPoE
• 802.1x
• L2TP (Basic Unencrypted)
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR069

Physical Specifications

• Main LCD x1: 4.3 inch (480×272) color-screen LCD
• DSS Key-mapping LCD x2: 2.4 inch (240×320) color-screen LCD
• Keypad: 46 keys
• HD Hands-free Speaker (0 ~ 7KHz) x1
• HD Hands-free Microphone (0 ~ 7KHz) x1
• HD Handset (RJ9) x1
• USB Port x1 (Connect with BT USB dongle)
• Support Bluetooth headset (Through USB Dongle)
• Support Plantronics Wireless headset (Through Plantronics APD-80 EHS Cable)
• Standard RJ9 Handset Wire x1
• 1.5M CAT5 Ethernet Cable x1
• RJ9 Phone Jacket x2: Handset x1, Headphone x1
• RJ45 Ethernet Jacket x2: Network x1 , PC x1 (Bridged to Network)
• Main Chipset: Broadcom
• DC Power Input: 12V/1A
• Power Consumption: Idle – ~ W, Peak – ~W
• Working Temperature: 0 ~ 40℃
• Working Humidity: 10 ~ 65%

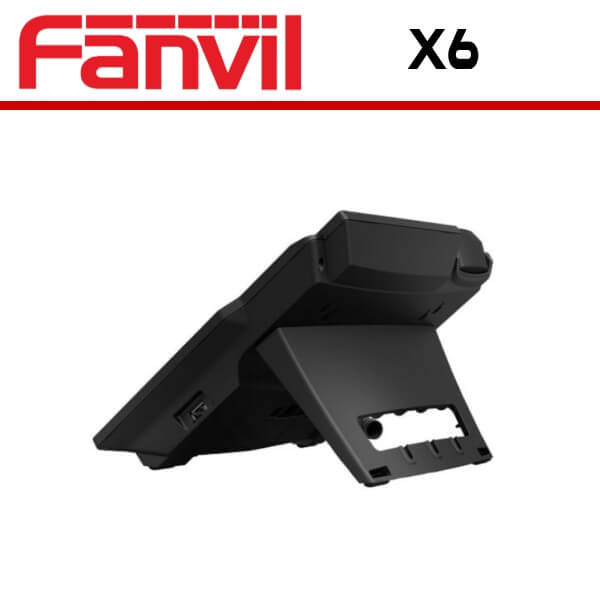

• Dual-Functional Back Rack x1: Desktop Stand
• Color: Black
• Package Dimensions: 315x270x65mm (W x H x L)
