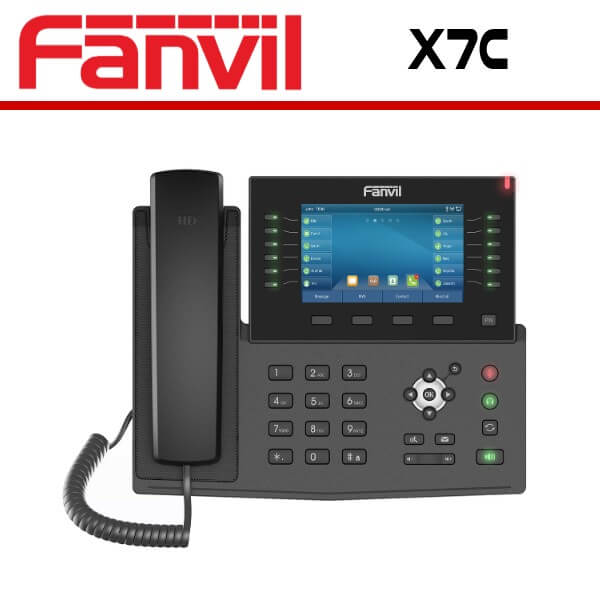

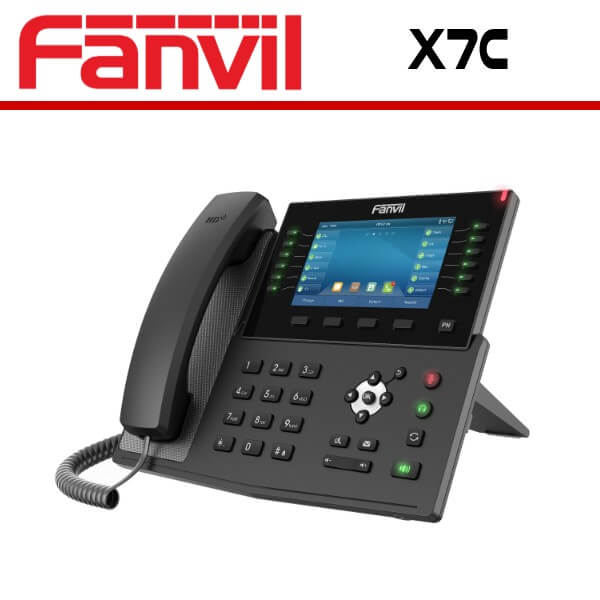

Fanvil X7C Dubai

The Fanvil X7C Dubai is an advanced IP phone that is designed to meet the communication needs of modern offices and businesses. It is a highly versatile and feature-rich device that offers exceptional audio quality, user-friendly interface, and advanced security features.

The Fanvil X7C Dubai is built with a 5-inch color touch screen display, which makes it easy to navigate through the phone’s menu options and other applications. The phone is equipped with a high-resolution camera, which makes it ideal for video conferencing and other collaborative tasks. Additionally, the phone has a built-in WiFi module, allowing it to connect to a wireless network and access the internet.

The phone supports up to 20 SIP lines, which means it can handle multiple calls simultaneously. The Fanvil X7C Dubai also supports PoE (Power over Ethernet), which means it can be powered through an Ethernet cable, eliminating the need for an additional power supply. It supports both IPv4 and IPv6, making it a future-proof device.

The Fanvil X7C Dubai comes with an integrated Bluetooth module, which allows users to connect their mobile devices to the phone and use it as a speakerphone. It also supports EHS (Electronic Hook Switch), allowing users to answer and end calls remotely with a wireless headset.

The phone is built with a range of advanced security features, including SRTP (Secure Real-Time Transport Protocol) and TLS (Transport Layer Security), which ensure secure communications. It also supports 802.1X authentication, which enables network administrators to control network access.

The Fanvil X7C Dubai is compatible with a wide range of VoIP platforms, including Asterisk, BroadSoft, 3CX, Elastix, and more. It can be easily integrated into any existing VoIP system, making it a highly versatile device.

In terms of audio quality, the Fanvil X7C Dubai features a high-fidelity speaker and a built-in microphone with advanced noise reduction technology, ensuring clear and crisp voice communication. It also supports wideband audio, allowing users to hear more details in conversations.

The phone has a modern and sleek design, with a slim profile and a black matte finish. The Fanvil X7C Dubai is also built with high-quality materials, ensuring durability and longevity.

Overall, the Fanvil X7C Dubai is an advanced IP phone that is packed with features and designed to meet the communication needs of modern offices and businesses. With its user-friendly interface, advanced security features, and exceptional audio quality, the Fanvil X7C Dubai is a highly recommended device for any organization looking to enhance their communication capabilities.

Fanvil X7C Specifications

Generic

•  20 SIP Lines
•  HD Voice
•  Support receiving Video call
•  POE Enabled
•  5 Inch Color LCD Screen
•  Handset / Hands-free / Headset mode
•  Intelligent DSS Keys
•  Optional External Power Supply

Call Features

•  Call out / Answer / Reject
•  Mute / Unmute (microphone)
•  Call Hold / Resume
•  Call Waiting
•  Intercom
•  Caller ID Display
•  Speed Dial
•  Anonymous Call (Hide Caller ID)
•  Call Forwarding (Always/Busy/No Answer)
•  Call Transfer (Attended/Unattended)
•  Call Parking/Pick-up (depending on server)
•  Redial
•  Do-Not-Disturb
•  Auto-Answering
•  Voice Message (on server)
•  3-way Conference
•  Hot Line
•  Hot desking

Phone Features

•  Local Phonebook (2000 entries)
•  Remote Phonebook (XML/LDAP, 2000 entries)
•  Call logs (in/out/missed, 1000 entries)
•  Black/White List Call Filtering
•  Screen saver
•  Voice Message Waiting Indication (VMWI)
•  Programmable DSS/Soft keys
•  Network Time Synchronization
•  Built-in Bluetooth 2.1: Support Bluetooth headset
•  Support Wi-Fi Dongle
•  Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
•  Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
•  Support Recording (Through Flash Drive or Server Recording )
•  Action URL / Active URI
•  uaCSTA

Video

•  Video codec: H.264
•  Video call resolution: QCIF / CIF / VGA

Audio

•  HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
•  HAC handset
•  Wideband ADC/DAC 16KHz Sampling
•  Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB, AMR, iLBC
•  Wideband CODEC: G.722, AMR-WB, Opus
•  Full-duplex Acoustic Echo Canceller (AEC)
•  Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /Background Noise Estimation (BNE) / Noise Reduction (NR)
•  Packet Loss Concealment (PLC)
•  Dynamic Adaptive Jitter Buffer up to 300ms
•  DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Networking

•  Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
•  IP Mode:IPv4/IPv6/IPv4&IPv6
•  IP Configuration: Static / DHCP / PPPoE
•  Network Access Control: 802.1x
•  VPN: L2TP / OpenVPN
•  VLAN
•  LLDP
•  QoS
•  RTCP-XR(RFC3611),VQ-RTCPXR(RFC6035)

Protocols

•  SIP2.0 over UDP/TCP/TLS
•  RTP/RTCP/SRTP
•  STUN
•  DHCP
•  IPv6
•  LLDP
•  PPPoE
•  802.1x
•  L2TP
•  OpenVPN
•  SNTP
•  FTP/TFTP
•  HTTP/HTTPS
•  TR-069

Physical Specifications

•  Main LCD x1:5.0 inch (800×480) color-screen LCD
•  Keypad: 43 keys
•  HD Handset (RJ9) x1
•  Standard RJ9 Handset Wire x1
•  1.5M CAT5 Ethernet Cable x1
•  Back Rack x1
•  RJ9 Port x2: Handset x1, Headset x1
•  RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
•  USB2.0 Port x1: Standard A, Connect with Wi-Fi USB dongle or Flash Driver
•  DC Power Input: 5V/2A
•  Power Consumption (POE): 2.6~9W
•  Power Consumption (Adapter): 2.4~8W
•  Working Temperature: 0~40℃
•  Working Humidity: 10~95%
•  Installation: Desktop Stand
•  Color: Black
•  Device Dimensions
  • Desktop Stand (angles 1): 268x185x189mm
  • Desktop Stand (angles 2): 268x201x168mm
  •  Gift Box Dimensions: 342x271x63mm
  •  Outer CTN Dimensions: 570x340x365mm (10 PCS)
