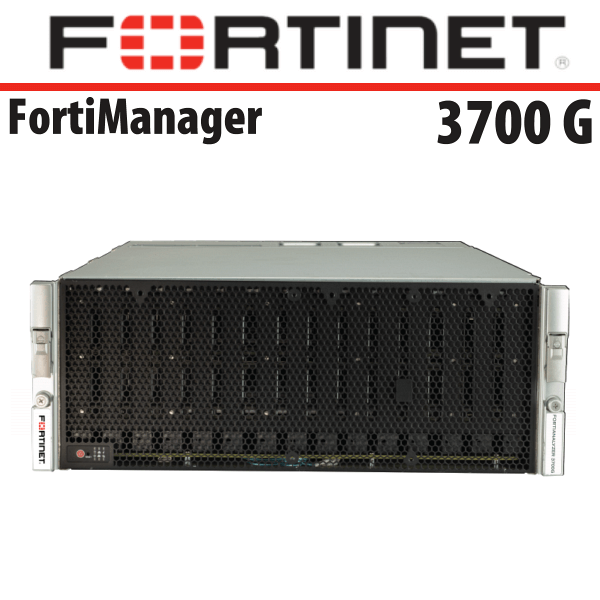

FortiManager3700G Network Management Platform Dubai
The Fortinet FortiManager3700G Dubai is a sophisticated and high-performance centralized management platform meticulously crafted to enhance the administration of extensive Fortinet security deployments. This powerful solution offers a unified interface, often described as a “single pane of glass,” providing comprehensive visibility and seamless control over the entire network infrastructure. By streamlining management tasks, it simplifies the provisioning process and incorporates advanced automation tools that significantly reduce manual effort, thereby enhancing the efficiency and scalability of network administration for large-scale operations. With its enhanced capabilities, the FortiManager3700G Dubai ensures consistent enforcement of security policies and the swift adaptation to evolving network requirements.
One of its key advantages is scalability, enabling the effective management of numerous Fortinet devices and Virtual Domains (VDOMs). Additionally, the FortiManager3700G Dubai boasts advanced reporting capabilities, generating detailed insights into network security, performance, and compliance. The platform also supports seamless integration with other security solutions, such as FortiAnalyzer and FortiGate, facilitating a cohesive and unified approach to security management across all Fortinet products.
Specifications:
| Capacity and Performance | |
| Devices/VDOMs (Default) | 10 000 |
| Devices/VDOMs (Maximum) | 100 000 |
| Sustained Log Rates | 150 |
| GB/ day | 10 |
| Hardware Specifications | |
| Storage Capacity | 240TB (60x 4TB) HDD + 19.2TB (6x 3.2TB) NVMe SSD |
| Usable Storage (after RAID) | 224 TB |
| RAID Levels Supported | RAID 0/1,1s/5,5s/6,6s/10/50/60 |
| Default RAID Level | 50 |
| Hardware Form Factor | 4 RU Rackmount |
| Total Interfaces | 2x 25GE SFP28, 2x 10GE RJ‑45 |
| Console Port | DB‑9 |
| Removable Hard Drives | ✓ |
| Redundant Hot Swap Power Supplies | ✓ |
| Trusted Platform Module (TPM) | ✓ |
| Dimensions | |
| Height x Width x Length (inches) | 7.0 x 17.2 x 30.2 |
| Height x Width x Length (cm) | 17.8 x 43.7 x 76.7 |
| Weight | 120 lbs (54.6 kg) |
| Environment | |
| AC Power Supply | 2000W AC 4 |
| Power Consumption (Average / Maximum) | 850 W / 1423.4 W |
| Heat Dissipation | 4858 BTU/h |
| Operating Temperature | 50°F to 95°F (10°C to 35°C) |
| Storage Temperature | ‑40°F to 158°F (‑40°C to 70°C) |
| Humidity | 5% to 95% non-condensing |
| Forced Airflow | Front to Back |
| Operating Altitude | Up to 7400 ft (2250 m) |
| Compliance | |
| Safety Certifications | FCC Part 15 Class A, RCM, VCCI, CE, BSMI, KC, UL/cUL, CB, GOST |
