Description

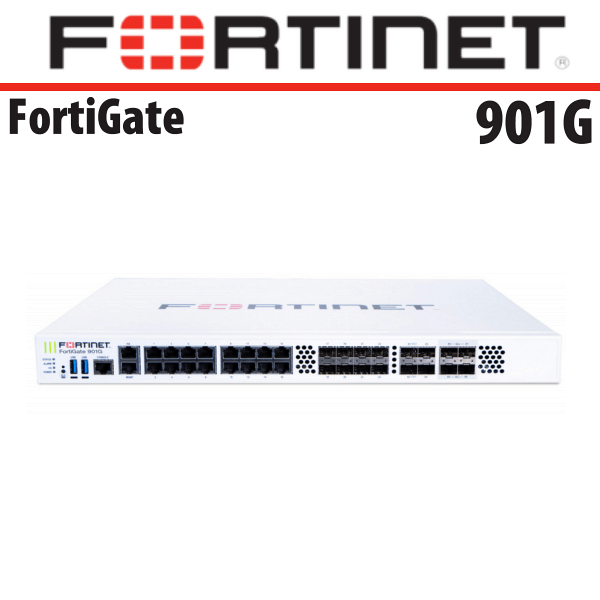

Fortinet901G Next-Generation Firewall Dubai
The Fortinet901G Dubai Next-Generation Firewall (NGFW) integrates AI-powered security and machine learning (ML) to offer comprehensive threat protection across networks of any size or complexity. It enables advanced visibility into all network activities, empowering organizations to identify and control applications, users, and devices before they evolve into potential threats.
This cutting-edge solution is backed by AI/ML-driven capabilities that seamlessly integrate into Fortinet’s security fabric platform, ensuring a unified approach to secure networking. The Fortinet901G provides end-to-end protection with advanced edge security, covering web filtering, content control, and device security. It also streamlines network management through dynamic segmentation and secure SD-WAN, enabling organizations to reduce operational overhead and mitigate risks within hybrid IT environments.
With Universal ZTNA (Zero Trust Network Access), the Fortinet901G ensures granular access control, continually verifying and validating user access to applications. This zero-trust approach helps prevent lateral movement of threats, granting permissions only to authenticated users and minimizing the attack surface. Furthermore, the device delivers ultra-fast threat protection with deep SSL/TLS inspection, ensuring full visibility at the network edge without compromising performance. This combination of security, visibility, and efficiency makes the Fortinet901G Dubai an optimal solution for modern enterprises seeking to protect distributed and evolving networks.
Hardware Features
Trusted Platform Module (TPM)
The Fortinet901G Dubai features a dedicated module that hardens physical networking appliances by generating, storing,and authenticating cryptographic keys. Hardware-based security mechanisms protect against malicious software and phishing attacks.
Access Layer Security
FortiLink protocol enables you to converge security and the network access by integrating the FortiSwitch into the FortiGate as a logical extension of the NGFW. These FortiLink enabled ports can be reconfigured as regular ports as needed.
Specifications
| Interfaces and Modules | |
| Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Ultra Low Latency Slots | 4 |
| Hardware Accelerated 10 GE SFP+ / GE SFP Slots | 4 |
| Hardware Accelerated GE SFP Slots | 8 |
| Hardware Accelerated GE RJ45 Slots | 16 |
| 2.5 GE / GE HA Port | 1 |
| GE Management Port | 1 |
| USB Ports (Client / Server) | 2/2 |
| Console Port | 1 |
| Onboard Storage | 2x 480 GB |
| Trusted Platform Module (TPM) | Yes |
| Included Transceivers | 2x SFP SX |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput | 26 Gbps |
| NGFW Throughput | 22 Gbps |
| Threat Protection Throughput | 20 Gbps |
| System Performance and Capacity | |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 164 / 163 / 153 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP | 164 / 163 / 153 Gbps |
| Firewall Latency (64 byte, UDP) | 3.78 / 2.5 μs |
| Firewall Throughput (Packet per Second) | 229.5 Mpps |
| Concurrent Sessions (TCP) | 16 Million |
| New Sessions/Second (TCP) | 720 000 |
| Firewall Policies | 10 000 |
| IPsec VPN Throughput (512 byte) | 55 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2000 |
| Client-to-Gateway IPsec VPN Tunnels | 50 000 |
| SSL-VPN Throughput | 10 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 10 000 |
| SSL Inspection Throughput (IPS, avg HTTPS) | 16.7 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 18 000 |
| SSL Inspection Concurrent Session (IPS, avg HTTPS) | 1.6 Million |
| Application Control Throughput (HTTP 64K) | 74.8 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 96 |
| Maximum Number of FortiAPs (Total / Tunnel) | 1024 / 512 |
| Maximum Number of FortiTokens | 5000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Dimensions and Power | |
| Height x Width x Length (inches) | 1.5 x 17.0 x 15.0 |
| Height x Width x Length (mm) | 44.45 x 432 x 380 |
| Weight (maximum) | 16.53 lbs (7.5 kg) |
| Form Factor (supports EIA/non-EIA standards) | Rack Mount, 1RU |
| AC Power Supply | 100–240VAC, 50/60 Hz |
| AC Current (Maximum) | 6A@100VAC |
| DC Power Supply | 48-60VDC |
| DC Current (Maximum) | 7A@48V |
| Power Consumption (Average / Maximum) | 144 W / 264 W |
| Heat Dissipation | 902 BTU/h |
| Power Supply Efficiency Rating | 80Plus Compliant |
| Redundant Power Supplies (Hot Swappable) | Yes (comes with 2PSU default) |
| Operating Environment and Certifications | |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10%–90% non-condensing |
| Noise Level | 58 dBA |
| Forced Airflow | Side and Front to Back |
| Operating Altitude | Up to 10 000 ft (3048 m) |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | USGv6/IPv6 |
