Grandstream GSC3570 Dubai

Grandstream GSC3570 Dubai

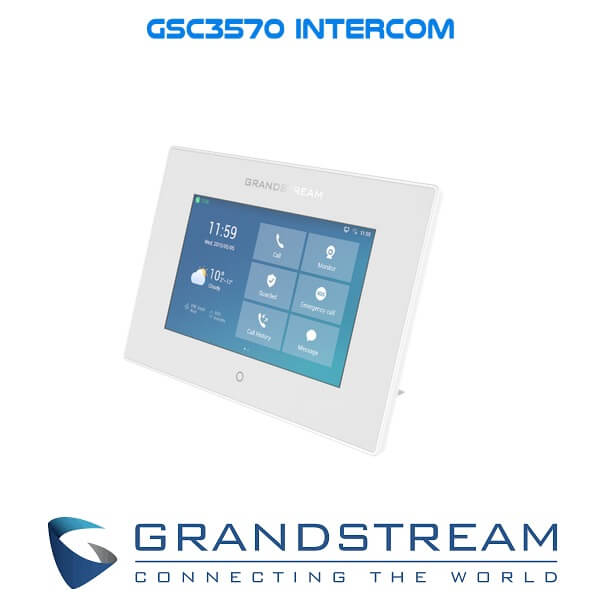

The Grandstream GSC3570 is an Android-based IP intercom and access control unit designed for use in various indoor and outdoor settings. It features a 7-inch touchscreen display, built-in camera, microphone, and speaker, and supports two-way communication, access control, and video monitoring.

Category:

Description

Grandstream GSC3570 Dubai

The Grandstream GSC3570 Dubai is a sophisticated Android-based IP intercom and access control unit designed to enhance security and communication in various indoor and outdoor settings. The device features a 7-inch touchscreen display that allows users to navigate its various features with ease. The touchscreen provides users with quick access to different functions such as making calls, access control, and video monitoring.

One of the key features of the Grandstream GSC3570 Dubai is its built-in camera, which captures high-definition video footage and provides clear visibility of visitors or persons seeking access to a building or property. The camera is also equipped with night vision, which allows it to operate in low-light conditions.

The device also comes with a built-in microphone and speaker, which facilitates two-way communication between the user and the visitor or person seeking access. The audio quality is clear and free from any background noise or echo, providing seamless communication.

The Grandstream GSC3570 Dubai is designed for integration with Grandstream’s GDS series of IP door systems and GSurf Pro v2 management software. When integrated with these systems, the Grandstream GSC3570 Dubai can be used to manage access control, video monitoring, and intercom communication. The GSC3570’s integration with these systems also makes it a scalable solution, which can be expanded to cover larger buildings or properties.

The Grandstream GSC3570 Dubai is powered either by PoE or an external power supply. This means that it can be deployed without having to worry about power cables or electrical outlets, making it a versatile solution for outdoor installations. The device is also weatherproof, which means it can withstand harsh weather conditions.

In terms of customization, the Grandstream GSC3570 Dubai offers a range of features that can be customized according to user preferences. This includes call and intercom settings, access control rules, and camera settings. The device also has a user-friendly interface that makes it easy to use and navigate.

Overall, the Grandstream Grandstream GSC3570 Dubai is an ideal solution for those seeking an easy-to-use, customizable, and scalable access control and communication solution for their building or property. Its high-definition camera, clear audio quality, and weatherproof design make it a reliable solution for any indoor or outdoor setting.

Grandstream GSC3570 Specifications

  • Protocol/Standards
    • SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV,NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LDAP, 802.1x, TLS, SRTP, IPv6
  • Network Interface Dual switched 10/100Mbps ports
  • Graphic Display 7’’ 1024×600 capacitive touch screen TFT LCD with Home key
  • Wi-Fi Yes, dual-band 802.11 a/b/g/n/ac (2.4GHz & 5GHz)
  • Alarm Input 4 Channels, including 1 Optocoupler, Vin < 15V (IN+) and 3 Dry Contact (IN1-3), for low voltage devices such as a door sensor, other switch contact, button etc.
  • Alarm Output 1 Channel/Relay, 125VAC/0.5A or 30VDC/2A, Normal Open or Normal Close, for high voltage devices such as, an electric lock or light switch
  • LED Indicator Yes, Dual color LED for event indication
  • Micro SD/TF Supported Yes, up to 256G
  • Voice Codecs and Capabilities G.711μ/a, G.722 (wide-band), G.726-32, iLBC, Opus, G.729A/B, DTMF (In audio,RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS
  • Video Decoders and Capabilities H.264 BP/MP/HP, video resolution up to 720p, frame rate up to 30 fps, bit rate up to 2Mbps
  • Telephony Features 4 SIP Accounts, Hold, Call Waiting, Call Log, Auto Answer, etc
  • Sample Applications Local apps: Contacts, Call History, Settings, Voicemail, Clock
  • Operating System Linux
  • HD Audio Yes, Dual speakers with support for wideband audio and media play in stereo, acoustic echo cancellation
  • QoS Layer 2 (802.1Q, 802.1p), 802.11e and Layer 3 (ToS, DiffServ, MPLS) QoS
  • Security
    • Secure Boot & Data, Double images for high reliability, random administrator password, user and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES based secure configuration file, SRTP, TLS, 802.1x media access control
  • Multi-language English, Chinese, German, Spanish, French, Italy, Portuguese, and Russian
  • Upgrade/Provisioning Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using AES encrypted XML configuration file, manual upload
  • Power & Green Energy Efficiency
    • 2-pin DC input: 12VDC/1A Integrated PoE : IEEE 802.3af Class 3, power consumption <10W Micro USB input: 5VDC/2A
  • Temperature and Humidity Operation: -10°C to 50°C, Storage: -20°C to 60°C, Humidity: 10% to 90% Non-condensing
  • Physical Unit Dimension: 224.5 x 149.5 x 36.5mm; Unit Weight: 517g Entire Package Dimension: 265 x 180 x 54mm; Entire Package Weight: 880g
  • Package Contents GSC3570, quick installation guide, and wall mount bracket
  • Compliance FCC, CE, RCM, IC
  • Optional Accessories GDS3710 & GDS3705
