Description

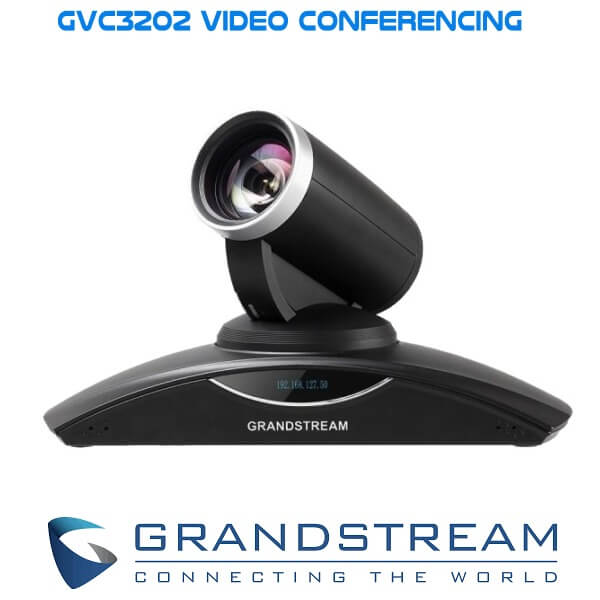

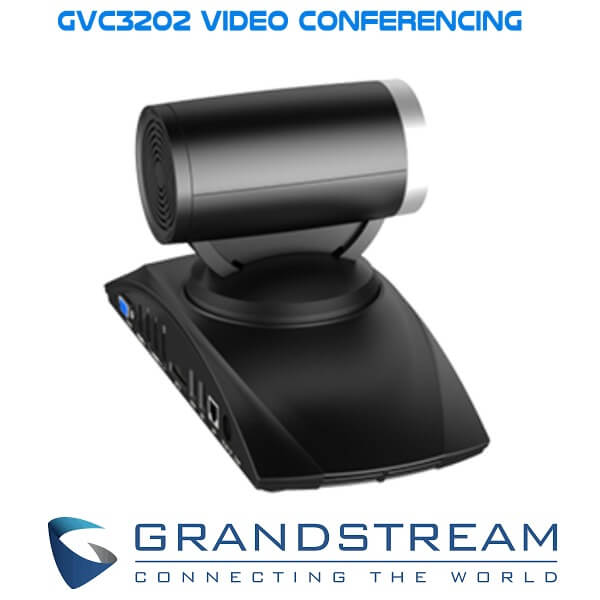

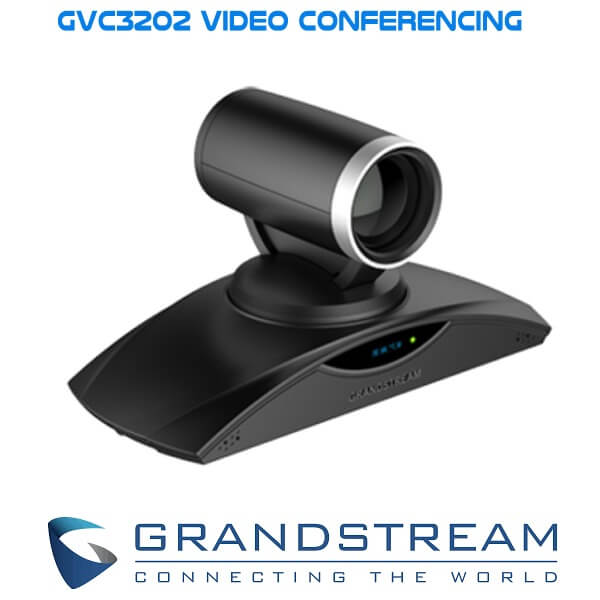

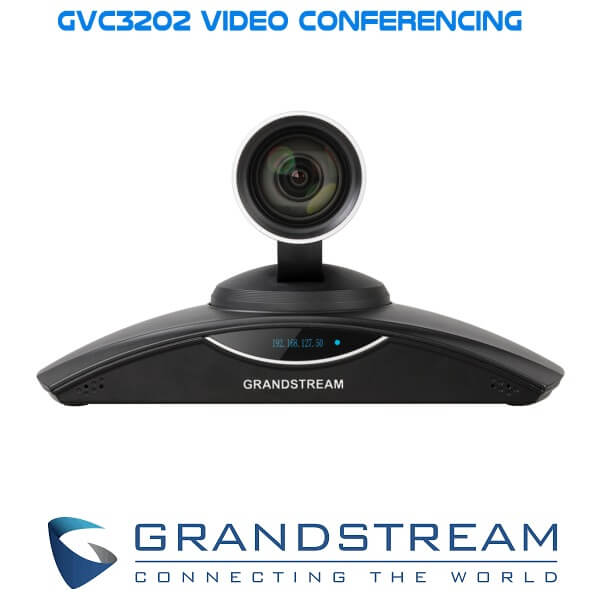

Grandstream GVC3202 Dubai

The Grandstream GVC3202 Dubai is a high-performance video conferencing system designed for small to medium-sized businesses. It is an affordable and reliable solution that offers full HD video resolution, dual-band WiFi, Bluetooth, and Gigabit Ethernet connectivity for seamless video and audio communication.

The Grandstream GVC3202 Dubai is compatible with popular video conferencing platforms such as Zoom, Skype, and Google Hangouts, making it easy for users to connect with colleagues and clients. It also includes a built-in web browser, screen sharing capabilities, and a whiteboard feature for enhanced collaboration. This allows users to easily share and collaborate on documents, presentations, and other materials in real-time, increasing productivity and efficiency.

The device is equipped with a 9x optical zoom lens that can be remotely controlled, ensuring that all participants can be seen in clear detail. It also features a built-in noise reduction system, which filters out background noise and ensures clear audio communication.

One of the standout features of the Grandstream GVC3202 Dubai is its ease of use. The device is simple to set up and operate, with a user-friendly interface that allows users to easily navigate through different settings and options. It also comes with a remote control, which can be used to adjust settings such as zoom, focus, and brightness.

Another notable feature of the Grandstream GVC3202 Dubai is its affordability. It is a cost-effective solution that offers high-quality video and audio communication capabilities, making it an ideal choice for small to medium-sized businesses that want to improve their virtual communication capabilities without breaking the bank.

Overall, the Grandstream GVC3202 Dubai is a reliable, affordable, and user-friendly video conferencing system that offers high-quality video and audio communication capabilities. Its compatibility with popular video conferencing platforms and its advanced features make it an excellent choice for businesses looking to improve their virtual communication and collaboration capabilities

Grandstream GVC3202 Specifications

Protocols/Standards
- SIP RFC3261, BFCP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE,SSH, TFTP, NTP, STUN, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, TCP/IP/UDP, IPv6, FEC, FECC,H.323, Q.931, H.224, H.281, H.225.0, H.239, H.241, H.245, H.460.18 and H.460.19
Camera 1/3” 2 Megapixel CMOS 1920Hx1080V@30fps
Lens 9x optical zoom, +/-23° tilt, +/- 90° pan, 70°(W)*- 6.3° (T) field of view
Network Interface 1× RJ45 10/ 100/ 1000 Mbps port
Bluetooth Yes, integrated. Bluetooth 4.0 + EDR
Video Outputs 2x HDMI up to 1080p with CEC
Video Input 1x VGA/1x HDMI with resolution up to 1080p
Microphone/Speaker External MIC/Speaker, built-in MIC, cascadable external MIC/speaker (pending)
Remote Control Bluetooth remote control with multi-touch touchpad
Auxiliary Ports 1x USB 2.0, SD, external speaker port, reset pin
Graphic Display OLED with 128×32 resolution
Voice Codecs G.711μ/a, G.722 (wide-band), iLBC (pending), Opus, G.722.1, G.722.1c (pending), in-band and out-ofband DTMF (In audio, RFC2833, SIP INFO)
Video Codecs H.264 BP/MP/HP, video resolution up to 1080p, frame rate up to 30 fps, bitrate up to 4Mbps
People Video Resolution 1080p from 512 Kbps, 720p from 384 Kbps, 4SIF/4CIF from 128 Kbps, SIF/CIF/QSIF/QCIF/SQSIF/SQCIF from 64 Kbps
Content Video Resolution Input: VGA, SVGA, XGA, WXGA, WXGA, SXGA, 1440×900, 720p, 1600×1200, 1080p (HDMI), up to 60fps; Encoding: 1280×720, 1920×1080
Output Resolution 720p, 1080p
Embedded MCU Up to 2-way 1080p conference, 3-way 720p conference, 3-way VGA conference
Dual-Stream BFCP, people video (up to 1080p@30fps) + content video (up to 1080p@15fps, 720p@30fps)
Audio Features AEC, ANS, AGC, PLC, CNG/VAD
Video Features FEC, dynamic display layout, picture-in-picture, picture-outside-picture, digital caption (pending)
Platform Bridging Bridge SIP calls with Android VoIP apps
Telephony Features
- Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 3-way audio/video conference, downloadable XML phone book, LDAP, call waiting, call history, flexible dial plan, personalized music ring tones, server redundancy & fail-over
Sample Applications Web browser, Facebook, Twitter, YouTube, Google calendar, mobile phone data import/export via Bluetooth, etc. API/SDK available for advanced custom application development
Application Deployment Allows Android 4.4.2 compliant applications to be deployed in the device with provisioning control
QoS Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, 128/256-bit SRTP, HTTPS, 802.1x media access control
Multi-Language English, German, Italian, French, Spanish, Portuguese, Russian, Turkish, Polish, Chinese, Korean, Japanese, and more
Upgrade/Provisioning Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using TR-069 or AES encrypted XML configuration file
Power & Green Energy Efficiency Universal power adapter included: Input 100-240VAC 50-60Hz; Output 12VDC/5A (60W)
Package Content
- GVC3202 video conference system, GAC2500 Android Enterprise Conference Phone, remote control, 2 AAA batteries, universal power supply, network cable (1.5 meters), USB extension cable (5 meters), mounting kit, 3 HDMI cables (one 1.5 meter cable, one 3 meter cables and one 5 meter cable), lens cover, lens cleaning cloth, quick installation guide, GPL license
Dimensions and Weight Net weight: 5.75 Kgs; Gross weight per box: 7.86 Kgs; Unit Dimensions (L x W x H): 11.9’’ x 4.89’’ x 7.26’’
Temperature and Humidity Operation: 0°C to 40°C, Storage: -10°C to 60°C, Humidity: 10% to 90% Non-condensing
Compliance
- FCC: Part 15 (CFR 47) Class B; UL 60950 (power adapter), Part 15C, Part 15E.407, Part 2.1091 CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, EN62479, RoHS, EN301893,EN62311 RCM: AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS 4268
