Description

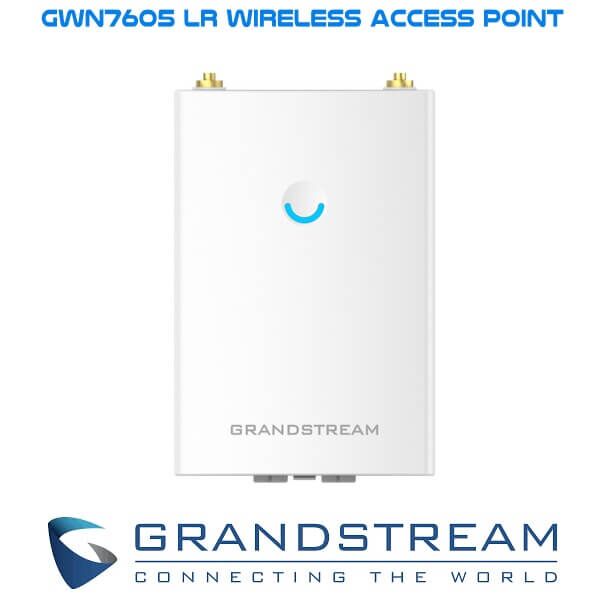

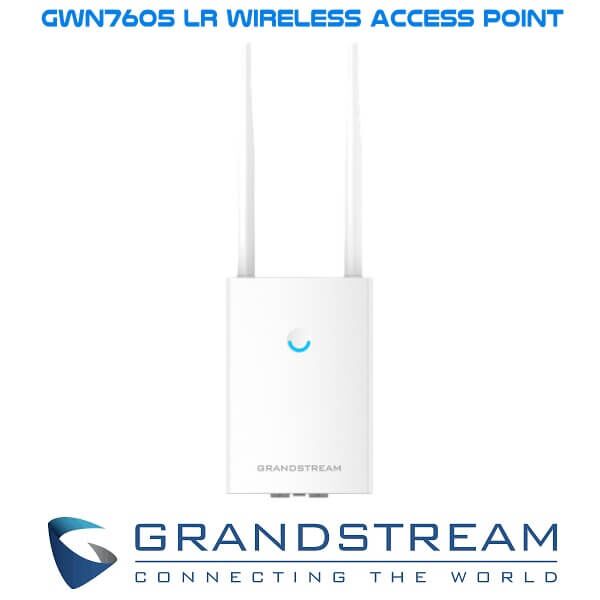

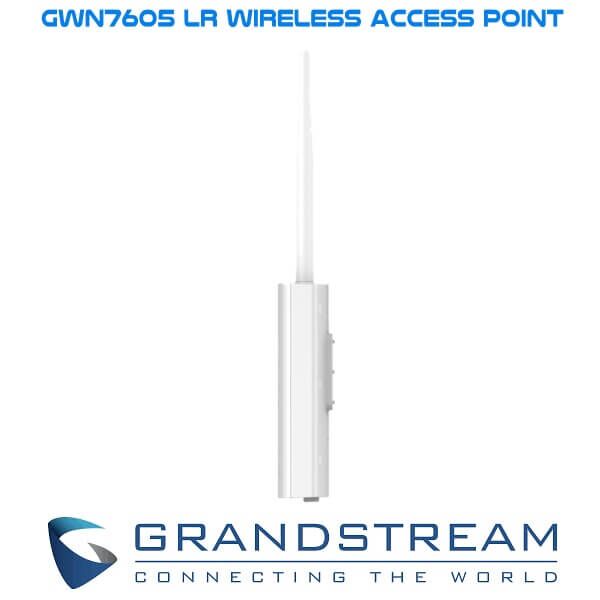

Grandstream GWN7605LR Dubai

The Grandstream GWN7605LR Dubai is an outdoor long-range Wi-Fi access point that is designed for small to medium businesses, retail, education, hospitality, and healthcare sectors. The device features dual-band 2×2:2 MIMO technology, which delivers wireless speeds of up to 1.17 Gbps. The Grandstream GWN7605LR Dubai is equipped with two detachable directional antennas and offers a range of up to 300 meters, making it ideal for outdoor environments such as parking lots, gardens, and outdoor event venues.

The Grandstream GWN7605LR Dubai features an IP66 weatherproof rating, which ensures that the device is protected from harsh weather conditions such as rain, wind, and dust. The access point also has an operating temperature range of -30 to 60 degrees Celsius, making it suitable for use in extreme weather conditions.

The device supports advanced security features such as WPA3, built-in firewall, and Intrusion Detection and Prevention System (IDPS), which help protect against potential attacks and ensure network resources and data are secure. It also supports multiple SSIDs and VLAN tagging, allowing businesses to create separate networks for guests and employees with unique login credentials and access privileges.

The Grandstream GWN7605LR Dubai is easy to install and set up, with a user-friendly web interface that simplifies the configuration process. The device also supports various advanced networking features such as QoS, bandwidth control, and mesh networking, allowing businesses to optimize their network performance for different applications and services.

The Grandstream GWN7605LR Dubai supports seamless roaming, which allows clients to move between access points without losing connectivity, providing uninterrupted wireless coverage. The device also supports controller-less roaming, allowing multiple access points to work together to provide seamless roaming, without the need for a dedicated controller.

Overall, the Grandstream GWN7605LR Dubai is a high-performance and secure outdoor long-range Wi-Fi access point that provides reliable wireless coverage in outdoor environments. With its advanced security features, easy installation process, and advanced networking capabilities, the Grandstream GWN7605LR Dubai is an ideal choice for businesses looking to provide high-speed wireless connectivity to their employees and guests in outdoor environments while keeping costs down.

Grandstream GWN7605LR Specifications

• Wi-Fi Standards IEEE 802.11a/b/g/n/ac (Wave-2)
• Antennas
• 2 dual band external antennas
  • 2.4GHz, gain 3.5dBi
  • 5 GHz, gain 3.5dBi
• Wi-Fi Data Rates
  • IEEE 802.11ac: 6.5 Mbps to 867 Mbps
  • IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • IEEE 802.11n: 6.5Mbps to 300Mbps; 400Mbps with 256-QAM on 2.4Ghz
  • IEEE 802.11b: 1, 2, 5.5, 11Mbps
  • IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• Frequency Bands
  • 2.4GHz Radio: 2412 – 2484 MHz
  • 5 GHz Radio: 5180-5825 MHz
• Channel Bandwidth 2.4G: 20 and 40MHz 5G: 20, 40 and 80 MHz
• System Security
• WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
• MIMO 2×2:2 2.4GHz (MIMO)  2×2:2 5GHz (MU-MIMO))
• Coverage Range
  • Up to 250 meters
• Maximum TX Power
  • 2.4G: 24 dBm
  • 5G: 22dBm
• Receiver Sensitivity
• 2.4G
  • 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
• 5G
  • 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9
• SSIDs 16 SSIDs total, 8 per radio (2.4 Ghz and 5 Ghz)
• Concurrent Clients 100+
• Network Interfaces 2× autosensing 10/100/1000 Base-T Ethernet Ports
• Auxiliary Ports 1× Reset Pinhole
• Mounting Outdoor metal bar mount or wall mount, kits included
• LEDs 1× tri-color LEDs for device tracking and status indication
• Network Protocols IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
• QoS 802.11e/WMM, VLAN, TOS
• Network Management
  • Embedded controller can manage up to 50 local GWN APs
  • GWN.Cloud offers a free cloud management platform for unlimited GWN APs
  • GWN Manager (BETA) offers premise-based software controller for up to 3,000 GWN APs
• Power and Green Energy Efficiency PoE 802.3af/ 802.3at; Maximum Power Consumption: 10.16W
• Environmental
  • Operation: -30°C to 70°C
  • Storage: -30°C to 80°C
  • Humidity: 5% to 95% Non-condensing
• Physical Unit Dimension: 358.3mm(L)*115mm(W)*45.3mm(H); Unit Weight: 500g   Entire Package Dimension: 258 × 247× 86mm; Entire Package Weight:655.3g
• Package Content GWN7605LR 802.11ac Wave-2 Wireless AP, Mounting Kits, Quick Start Guide
• Weatherproof Grade IP66-level weatherproof capability when installed vertically
• Compliance FCC, CE, RCM, IC
