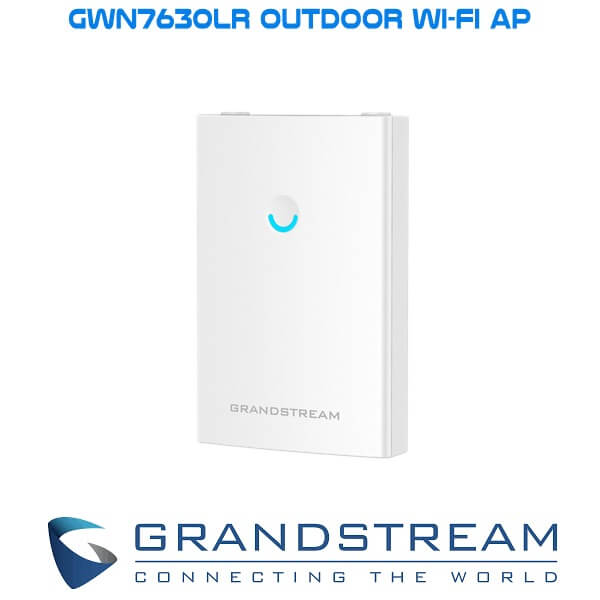

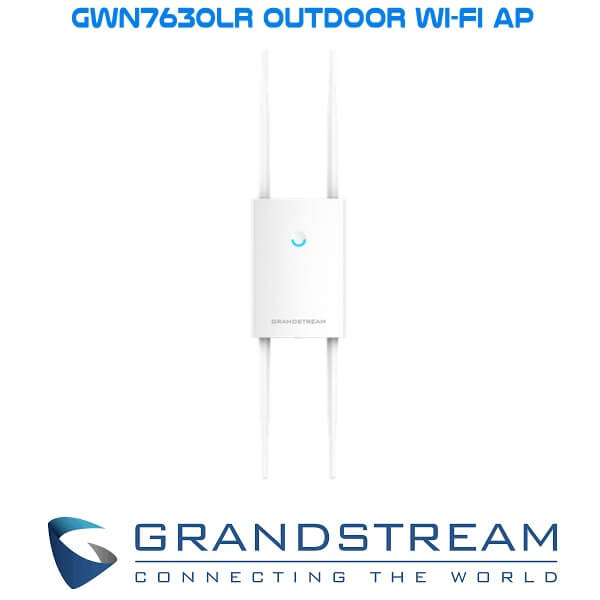

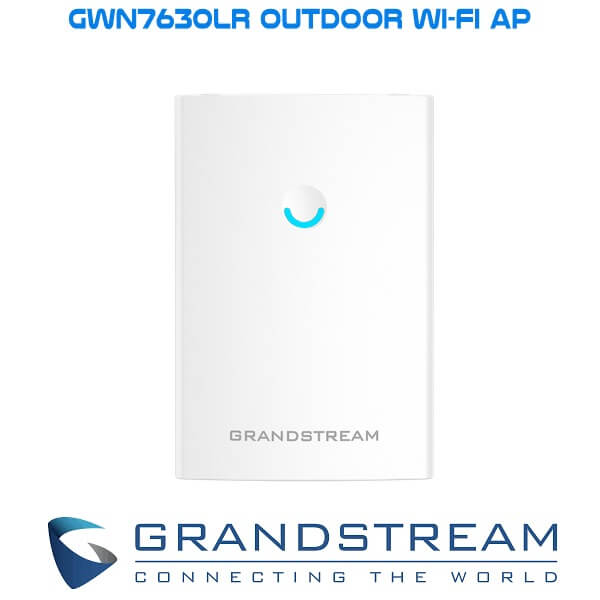

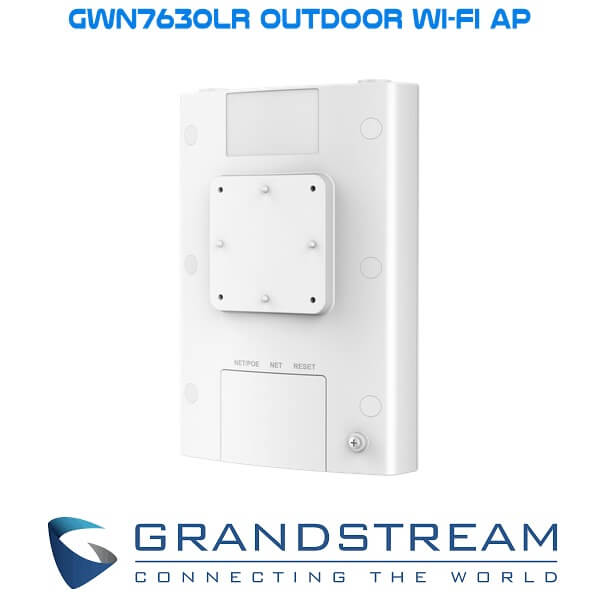

Grandstream GWN7630LR Dubai
The Grandstream GWN7630LR Dubai is a high-performance long-range outdoor Wi-Fi access point designed to deliver reliable and secure wireless connectivity for large outdoor areas. The device features dual-band 4×4:4 MU-MIMO technology, which allows for concurrent connections with multiple devices and delivers speeds of up to 1750Mbps. This makes it ideal for use in outdoor spaces such as parks, campuses, or large-scale business venues.
One of the most notable features of the Grandstream GWN7630LR Dubai is its coverage range of up to 300 meters, making it one of the most powerful outdoor access points available in the market. The device is built with weatherproof casing, which protects it from harsh weather conditions such as rain, snow, or extreme heat, ensuring consistent and reliable performance in any environment.
The Grandstream GWN7630LR Dubai comes equipped with advanced security protocols, such as WPA3, which offers strong authentication and encryption methods to ensure that wireless networks are secure and protected from unauthorized access. It also features a built-in firewall and IDS/IPS, which helps to detect and prevent potential attacks, protecting network resources and data.
One of the most significant advantages of the Grandstream GWN7630LR Dubai is its easy and flexible network management options. The device can be managed through the Grandstream GWN Cloud or GWN Manager, allowing administrators to configure and monitor multiple access points from a single dashboard. This provides seamless scalability and administration, making it easy to expand and manage wireless networks as the needs of the organization evolve.
In addition to its impressive technical features, the Grandstream GWN7630LR Dubai is also designed with a user-friendly interface that simplifies the installation process. The device comes with mounting hardware and accessories, making it easy to deploy and set up in any outdoor environment. It also features a LED light that indicates the signal strength, providing real-time visibility into network performance.
Overall, the Grandstream GWN7630LR Dubai is a powerful, reliable, and secure outdoor access point that offers outstanding performance and flexible management options. With its advanced security features, weatherproof design, and long-range coverage, the Grandstream GWN7630LR Dubai is an ideal choice for organizations looking to provide high-speed wireless connectivity to large outdoor areas.
Grandstream GWN7630LR Dubai
- Wi-Fi Standards IEEE 802.11a/b/g/n/ac (Wave-2)
- Antennas
- 4 detachable/changeable dual-band omnidirectional antennas
- 2.4GHz, gain 3.5dBi
- 5GHz, gain 3.5dBi
- Wi-Fi Data Rates
- IEEE 802.11ac: 6.5 Mbps to 1733Mbps
- IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- IEEE 802.11n: 6.5Mbps to 600Mbps
- IEEE 802.11b: 1, 2, 5.5, 11Mbps
- IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- Frequency Bands
- 2.4 GHz Radio: 2412 – 2484 MHz
- 5GHz Radio: 5150-5250MHz, 5250-5350MHz, 5470-5725MHz, 5725-5850MHz
- Channel Bandwidth 2.4G: 20 and 40MHz 5G: 20, 40 and 80MHz
- System Security
- WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
- MIMO 4×4:4 2.4G (MIMO), 4×4:4 5G (MU-MIMO)
- Coverage Range Up to 300 meters
- Maximum TX Power
- 2.4G: 27 dBm
- 5G: 25 dBm
- Receiver Sensitivity
- 2.4G
- 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
- 5G
- 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9
- SSIDs 32 SSIDs total, 16 per radio (2.4 Ghz and 5 Ghz)
- Concurrent Clients 200+
- Network Interfaces 2× autosensing 10/100/1000 Base-T Ethernet Ports
- Auxiliary Ports 1× Reset Pinhole
- Mounting Wall mount or pole mount – kits included
- LEDs 1× tri-color LEDs for device tracking and status indication
- Network Protocols IPv4/IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
- QoS 802.11e/WMM, VLAN, TOS
- Network Management
- Embedded controller can manage up to 50 local GWN APs
- GWN.Cloud offers a free cloud management platform for unlimited GWN APs
- GWN.Manager (coming soon) offers premise-based software controller for up to 3,000 GWN APs
- Power and Green Energy Efficiency PoE 802.3af/ 802.3at; Max Consumption: 16.5W
- Environmental
- Operation: -30°C to 60°C
- Storage: -30°C to 70°C
- Humidity: 5% to 95% Non-condensing
- Physical
- Unit Dimension: 533.1 × 115 × 40mm; Unit Weight: 564g
- Unit + Mounting Kits Dimension : 533.1×115 ×62mm; Unit + Mounting Kits Weight : 706g
- Entire Package Dimension: 258 × 247× 86mm; Entire Package Weight: 978g
- Package Content GWN7630LR 802.11ac Wireless AP, Mounting Kits, Quick Start Guide
- Weatherproof Grade IP66-level weatherproof capability when installed vertically
- Compliance FCC, CE, RCM, IC
