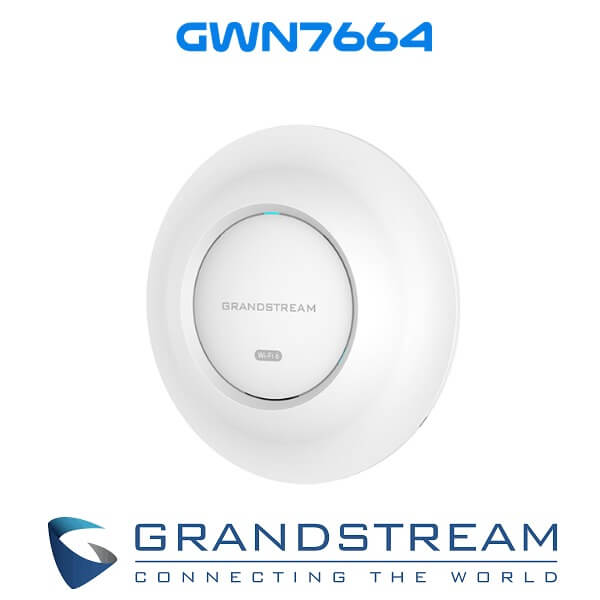

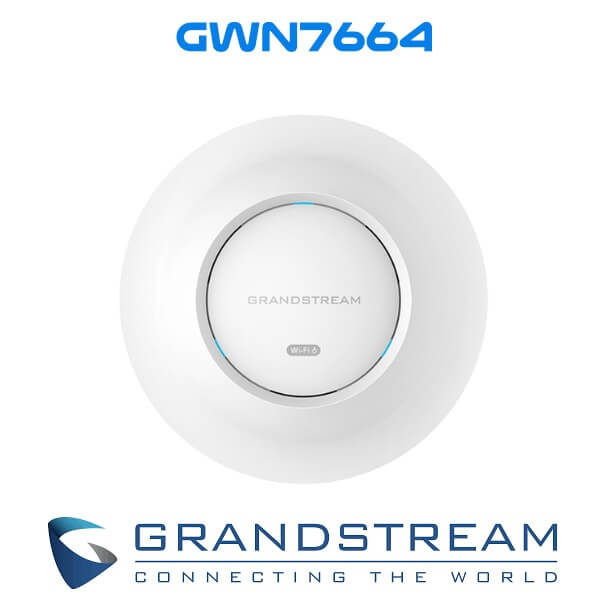

Grandstream GWN7664 Dubai

The Grandstream GWN7664 Dubai is an indoor wireless access point designed for small to medium-sized businesses. It is a high-performance device that supports dual-band 802.11ac Wi-Fi with speeds of up to 1.75 Gbps, making it ideal for high-density indoor environments such as offices, hotels, and retail stores.

The Grandstream GWN7664 Dubai features a sleek design that blends in with any indoor environment, making it a discreet and stylish option for businesses looking to provide reliable Wi-Fi connectivity to their employees and customers. It also includes advanced security features such as WPA3 encryption and built-in firewall, ensuring that network resources and data are secure and protected from potential threats.

The Grandstream GWN7664 Dubai is easy to install and manage, with a user-friendly web interface that simplifies the configuration process. The device can be powered through PoE (Power over Ethernet), reducing the need for additional power outlets and making installation more flexible.

The Grandstream GWN7664 Dubai also supports advanced QoS and bandwidth control features, allowing businesses to prioritize network traffic and optimize their network performance for different applications and services. The device also supports seamless roaming, allowing users to move throughout the indoor area without experiencing any interruption in their wireless connection.

The Grandstream GWN7664 Dubai includes advanced network management features such as remote provisioning and monitoring, allowing IT administrators to manage and monitor the device remotely. This feature helps to ensure that the device is always up-to-date and operating at optimal performance.

In addition to its advanced features and high-performance capabilities, the Grandstream GWN7664 Dubai is also an affordable option for businesses looking to provide reliable and secure Wi-Fi connectivity to their employees and customers. Its competitive pricing and low total cost of ownership make it an attractive option for businesses of all sizes.

Overall, the Grandstream GWN7664 Dubai is an ideal indoor wireless access point for small to medium-sized businesses looking to provide reliable and secure Wi-Fi connectivity to their employees and customers. With its advanced features, high-performance capabilities, and affordable pricing, the Grandstream GWN7664 Dubai is a cost-effective and reliable solution for businesses looking to enhance their Wi-Fi capabilities.

Grandstream GWN7664 Specifications

• Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax
• Antennas
  • 8 individual internal antennas, 4 per band
  • 2.4GHz, gain 3dBi
  • 5 GHz, gain 4dBi
• Wi-Fi Data Rates
• 5G:
  • IEEE 802.11ax: 8 Mbps to 2402 Mbps
  • IEEE 802.11ac: 6.5 Mbps to 1733 Mbps
  • IEEE 802.11n: 6.5Mbps to 600Mbps
  • IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 2.4G:
  • IEEE 802.11ax: 8 Mbps to 1147 Mbps
  • IEEE 802.11n: 6.5Mbps to 600Mbps
  • IEEE 802.11b: 1, 2, 5.5, 11 Mbps
  • IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• Frequency Bands
  • 2.4GHz Radio: 2412 – 2484 MHz
  • 5GHz Radio: 5180 – 5825 MHz
• Channel Bandwidth 2.4G: 20 and 40 MHz (x4) 5G: 20, 40 and 80 MHz (x4)
• Wi-Fi and System Security WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/ control lockdown via digital signatures, unique security certificate and random default password per device
• MIMO 4×4:4 2.4GHz  4×4:4 5GHz
• Coverage Range Up to 175 meters
• Maximum TX Power
  • 5G: 25dBm
  • 2.4G: 26dBm
• Receiver Sensitivity
• 2.4G
  • 802.11b: -99dBm@1Mbps, -91dBm@11Mbps;
  • 802.11g: -94dBm @6Mbps, -78dBm@54Mbps;
  • 802.11n 20MHz: -75dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7;
  • 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -63dBm @MCS11
• 5G
  • 802.11a: -95dBm @6Mbps, -77dBm @54Mbps;
  • 802.11n 20MHz: -74dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7
  • 802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9;
  • 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -62dBm @MCS11;802.11ax 80MHz: -59dBm @MCS11
• SSIDs 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
• Concurrent Clients 750+

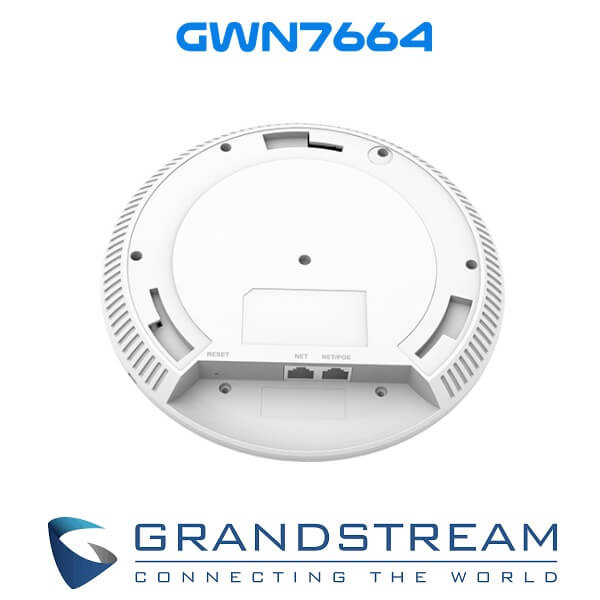

• Network Interfaces 1x 1G Port and 1x 2.5G Port, support 3.5Gbps aggregate wire throughput
• Auxiliary Ports 1x Reset Pinhole, 1x Kensington lock
• Mounting Indoor wall mount or ceiling mount, kits included
• LEDs 1 tri-color LEDs for device tracking and status indication
• Network Protocols IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
• QoS 802.11e/WMM, VLAN, TOS
• Network Management
  • Embedded controller can manage up to 50 local GWN APs
  • GWN.Cloud offers a free cloud management platform for unlimited GWN APs
  • GWN Manager offers premise-based software controller for up to 3,000 GWN APs
• Power and Green Energy Efficiency PoE 802.3af/ 802.3at; Maximum Power Consumption: 17W
• Environmental
  • Operation: 0°Cto 50°C
  • Storage: -10°C to 60°C
  • Humidity: 10% to 90% Non-condensing
• Physical Unit Dimension: 205.3mm(L)x205.3mm(W)x45.9mm(H); Unit Weight: 0.714Kg  Entire Package Dimension: 258x247x86mm; Entire Package Weight: 1.06Kg
• Package Content GWN7664 802.11ax Wireless AP, Mounting Kits, Quick Start Guide
• Compliance FCC, CE, RCM, IC
