Description

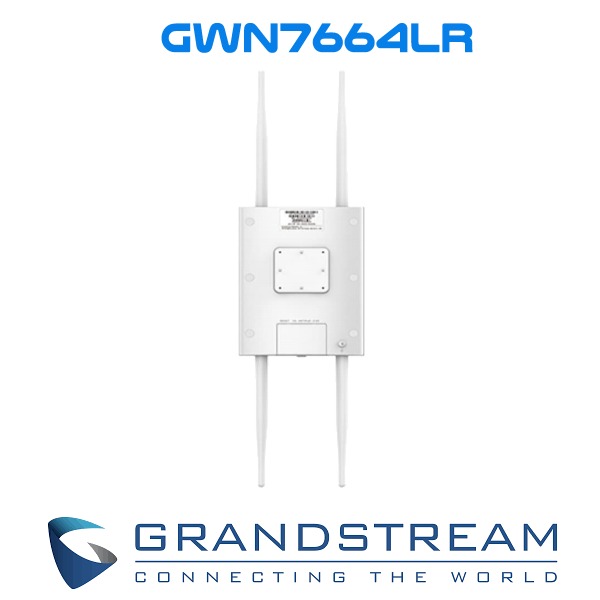

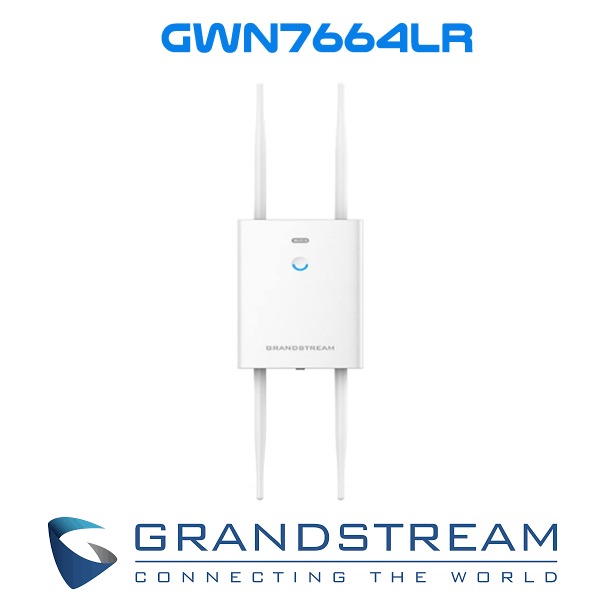

Grandstream GWN7664LR Dubai

The Grandstream GWN7664LR Dubai is an outdoor 802.11ax 4×4 :4 Wi-Fi 6 access point for medium-to-large businesses and enterprises who need to provide long-range coverage in both indoor and outdoor spaces. It offers weatherproof casing and heat resistant technology, dual-band 4×4 :4 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network through that supports 750 clients and an expanded 300-meter coverage range. To ensure easy installation and management, the GWN7664LR includes a built-in controller embedded within the product’s web user interface. It is also supported by GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platform. The GWN7664LR is the ideal Wi-Fi AP for voice-over-Wi-Fi deployment and offers a seamless connection with Grandstream’s Wi-Fi capable voice and video IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals and dual Gigabit networks ports with PoE/PoE+, the Grandstream GWN7664LR Dubai is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, hospitals, schools and more.

Grandstream GWN7664LR Specifications

• Wi-Fi Standards IEEE 802.11 b/g/n/ac/ax
• Antennas
  • 4 dual band external antennas
  • 2.4GHz, gain 3.5dBi
  • 5 GHz, gain 3.5dBi
• Wi-Fi Data Rates
•  5G:
  • IEEE 802.11ax: 8 Mbps to 2402 Mbps IEEE
  • 802.11ac: 6.5 Mbps to 1733 Mbps IEEE
  • 802.11n: 6.5Mbps to 600Mbps
  • IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 2.4G:
  • IEEE 802.11ax: 8 Mbps to 1147 Mbps IEEE
  • 802.11n: 6.5Mbps to 600Mbps IEEE
  • 802.11b: 1, 2, 5.5, 11 Mbps
  • IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
•  Frequency Bands
  • 2.4GHz radio: 2412 – 2484 MHz
  • 5GHz radio: 5180 – 5825 MHz
• Channel Bandwidth 2.4G: 20 and 40 MHz (x4)  5G: 20, 40 and 80 MHz (x4)
• System Security
• WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
• MU-MIMO 4×4:4 2.4GHz, 4×4:4 5GHz
• Coverage Range Up to 300 meters
•  Maximum TX Power
  • 5G: 25dBm
  • 2.4G: 26dBm
•  Receiver Sensitivity
•  2.4G
  • 802.11b: -99dBm@1Mbps, -91dBm@11Mbps;
  • 802.11g: -94dBm @6Mbps, -78dBm@54Mbps;
  • 802.11n 20MHz: -75dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7;
  • 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -63dBm @MCS11
• 5G
  • 802.11a: -95dBm @6Mbps, -77dBm @54Mbps;
  • 802.11n: 20MHz: -74dBm @MCS7; 802.11 n 40MHz: -71dBm @MCS7
  • 802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9;
  • 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -62dBm @MCS11;802.11ax 80MHz: -59dBm @
  • MCS11
• SSIDs 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
• Concurrent Clients 750+
• Network Interfaces 1x 1G Port and 1x 2.5G Port, support 2.5Gbps aggregate wired throughout
• Auxiliary Ports 1x Reset Pinhole
• Mounting Wall mount or pole mount, kits included
• LEDs 1 tri-color LEDs for device tracking and status indication
• Network Protocols IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
• QoS 802.11e/WMM, VLAN, TOS
• Network Management
  • Embedded controller can manage up to 50 local GWN APs
  • GWN.Cloud offers a free cloud management platform for unlimited GWN APs
  • GWN Manager offers premise-based software controller for up to 3,000 GWN Aps
• Power and Green Energy Efficiency
  • PoE 802.3af/ 802.3at;
  • Maximum Power Consumption: 18W
• Environmental
  • Operation:-30°Cto 60°C
  • Storage: -30°C to 60°C
  • Humidity: 10% to 90% Non-condensing
• Physical
  • Unit Dimension: 562.3mm(L)x140mm(W)x44.9mm(H);
  • Unit + Mounting Kits Dimension: 562.3mm(L)x140mm(W)x66.9mm(H);
  • Entire Package Dimension: 260mm(L)x218.5mm(W)x108mm(H);
• Package Content GWN7664LR 802.11ax Wireless AP, Mounting Kits, Quick Installation Guide
• Weatherproof Grade IP66-level weatherproof capability when installed vertically
• Compliance FCC, CE, RCM, IC, UKCA
