Description

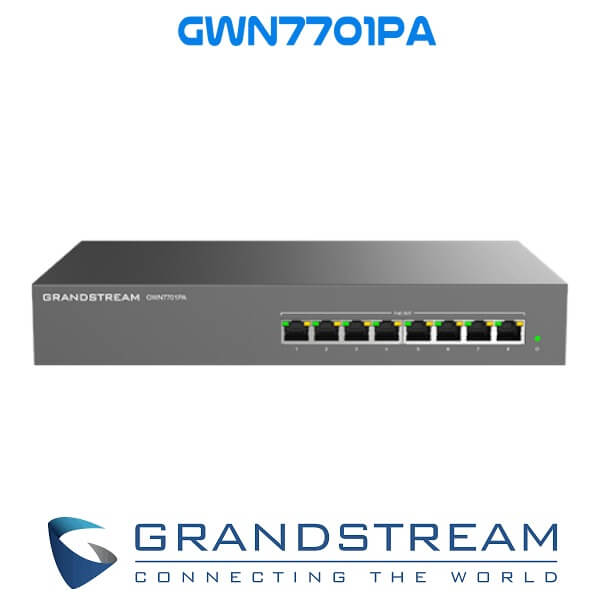

Grandstream GWN7701PA Dubai
The Grandstream GWN7701PA Dubai is an easy-to-use network switch that offers a fast and affordable way to add high-speed Gigabit connectivity to home offices and small/medium businesses. The Grandstream GWN7701PA Dubai doesn’t require any configuration or installation and has a design that can be placed on a desktop or mounted on a wall. The Grandstream GWN7701PA Dubai also has auto MDI/MDIX, which eliminates the need for crossover cables. Each port supports auto-negotiation, allowing the Grandstream GWN7701PA Dubai to recognize the link speed of any 10/100/1000Mbps network device and adjust for compatibility and optimal performance. The PoE models provide ports with smart dynamic PoE output, compliant with IEEE 802.3af/at, to power IP phones, IP cameras, Wi-Fi access points, and other PoE endpoints. The plug-and-play Grandstream GWN7701PA Dubai is the perfect choice for unmanaged network switches in home offices and small-to-medium businesses.
Grandstream GWN7701PA Specifications
| Gigabit Ports | 8 |
| PoE Ports | 8 |
| Enclosure | Metal |
| Mounting | Desktop/Rack-Mount |
| Standards and
Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| Port Feature | 8× 10/100/1000Mbps RJ45 Ports AUTO Negotiation
AUTO MDI/MDIX |
| Network Media | 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex |
|
PoE Configuration |
1~8 Ports 802.3 af/at compliant
Up to 30 W on Each Port, Total 145W Power Budget; Overload to cut off the lowest- priority port. Priority: Port 8 to Port 1 |
| LED Indicators | Per port: Link/Activity – Green Per port: PoE output – Yellow Per device: Power Green |
| Mac Address Table | 8K |
| Switching Capacity | 16Gbps |
| Jumbo Frame | 9KB |
|
Advanced Features |
Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control
802.1p/DSCP QoS Unlink clear FDB Feature IGMP: IGMP Fast-Leave IGMP Snoop Route Port Autolearn Query Refresh Member Port |
| Power Adapter | Internal 100-240V AC AC, 50/60Hz,150W |
| Max Power Consumption
by Base System |
6.7W @220V/50Hz
(excluding PoE output power) |
|
Environmental |
Operating Temperature: 0 to 40 °C (32 to 104 °F)
Storage Temperature: -20 to 60 °C (-4 to 140 °F) Operating Humidity: 10% to 90% Non-condensing Storage Humidity: 10% to 90% Non-condensing |
| Dimensions (L x W x H) | Unit: 280 x 180 x 44mm
Package: 366 x 211 x 53mm |
| Weight | Unit: 1.5KG Entire Package: 2.1KG |
| Package | 1x Switch, 1x 1.2m AC Cable, Rack-mounting Standard Brackets, 4x Rubber Feet, 1x QIG |
