Description

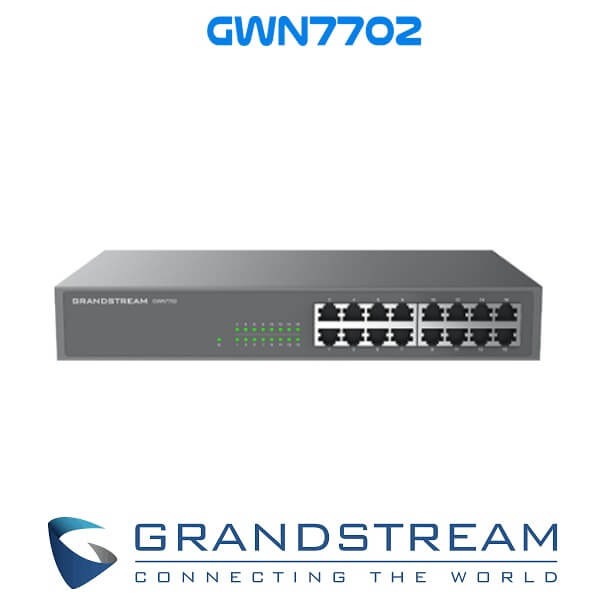

Grandstream GWN7702 Dubai
The Grandstream GWN7702 Dubai unmanaged network switches offer a cost-effective solution for adding high-speed Gigabit connectivity to home offices and small/medium businesses. These switches require no configuration or installation and have a desktop and wall-mountable design. They feature auto MDI/MDIX, eliminating the need for crossover cables. Each port supports auto-negotiation, allowing the Grandstream GWN7702 Dubai to adjust to the link speed of any 10/100/1000Mbps network device for optimal performance. The PoE models provide IEEE 802.3af/at compliant ports with smart dynamic PoE output, powering IP phones, IP cameras, Wi-Fi access points, and other PoE endpoints. The plug-and-play Grandstream GWN7702 Dubai switches are the ideal choice for home offices and small-to-medium businesses.
Grandstream GWN7702 Specifications
| Gigabit Ports | 16 |
| Enclosure | Metal |
| Mounting | Desktop/Rack-Mount |
| Standards and
Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| Port Feature | 16/24× 10/100/1000Mbps RJ45 Ports AUTO Negotiation
AUTO MDI/MDIX |
| Network Media | 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex |
| LED Indicators | Per port: Link/Activity Green Per device: Power Green |
| Mac Address Table | 8K |
| Switching Capacity | 32Gbps |
| Jumbo Frame | 10KB |
| Advanced Features | Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control
Half duplex backpressure |
| Power Adapter | Internal 100-240V AC, 50/60Hz,18W |
| Max Power Consumption
by Base System |
8W@220V/50Hz |
|
Environmental |
Operating Temperature: 0 to 40 °C (32 to 104 °F)
Storage Temperature: -20 to 60 °C (-4 to 140 °F) Operating Humidity: 10% to 90% Non-condensing Storage Humidity: 10% to 90% Non-condensing |
| Dimensions (L x W x H) | Unit: 280 x 180 x 44mm;
Package: 366 x 211 x 53mm |
| Weight | Unit: 1.23KG
Entire Package: 1.83KG |
| Package | 1x Switch, 1x 1.2m AC Cable, Rack-mounting Standard Brackets, 4x Rubber Feet, 1x QIG |
