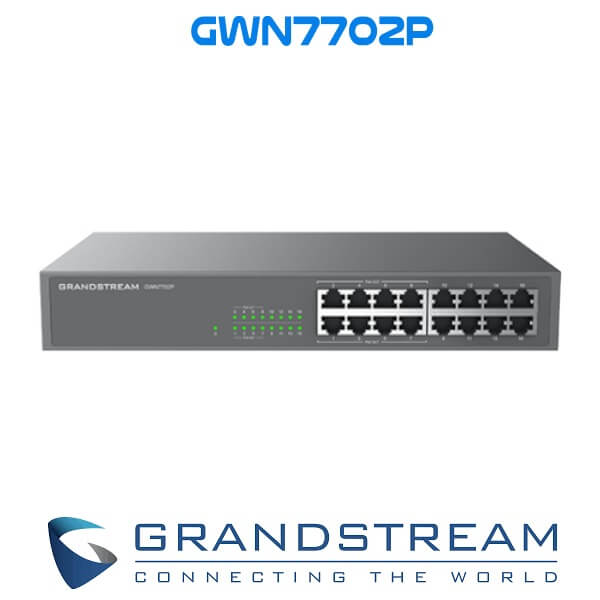

Grandstream GWN7702P Dubai
The Grandstream GWN7702P Dubai switches are unmanaged network switches that offer a quick and cost-effective solution for adding high-speed Gigabit connectivity to small and medium-sized offices. They do not require any configuration or installation, have a design that can be placed on a desktop or wall-mounted, and support automatic MDI/MDIX to eliminate the need for crossover cables. Each port has auto-negotiation capabilities, allowing the Grandstream GWN7702P Dubai to recognize the link speed of any 10/100/1000 Mbps network device and adjust accordingly for compatibility and optimal performance. The PoE (Power-over-Ethernet) ports with intelligent dynamic PoE output that complies with IEEE 802.3af/at standards, enabling them to power IP phones, IP cameras, Wi-Fi access points, and other PoE end devices.
Grandstream GWN7702P Specifications
| Gigabit Ports | 16 |
| PoE Ports | 8 |
| Enclosure | Metal |
| Mounting | Desktop/Rack-Mount |
| Standards and
Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| Port Feature | 16/24× 10/100/1000Mbps RJ45 Ports AUTO Negotiation
AUTO MDI/MDIX |
| Network Media | 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex |
|
PoE Configuration |
•1~8 Ports 802.3 af/at compliant
•Up to 30 W on Each Port, Total 138W Power Budget; •Overload to cut off the lowest- s priority port. •Priority: Port 1 to Port 8 |
| LED Indicators | Per port: Link/Activity – Green Per port: PoE output – Yellow Per device: Power Green |
| Mac Address Table | 8K |
| Switching Capacity | 32Gbps |
| Jumbo Frame | 10KB |
| Advanced Features | Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control
Half duplex backpressure |
| Power Adapter | Internal 100-240V AC, 50/60Hz,150W |
| Max Power Consumption
by Base System |
10.1W@220V/50Hz
(excluding PoE output power) |
|
Environmental |
Operating Temperature: 0 to 40 °C (32 to 104 °F)
Storage Temperature: -20 to 60 °C (-4 to 140 °F) Operating Humidity: 10% to 90% Non-condensing Storage Humidity: 10% to 90% Non-condensing |
| Dimensions (L x W x H) | Unit: 280 x 180 x 44mm;
Package: 366 x 211 x 53mm |
| Weight | Unit: 1.58KG
Entire Package: 2.18KG |
| Package | 1x Switch, 1x 1.2m AC Cable, Rack-mounting Standard Brackets, 4x Rubber Feet, 1x QIG |
