Description

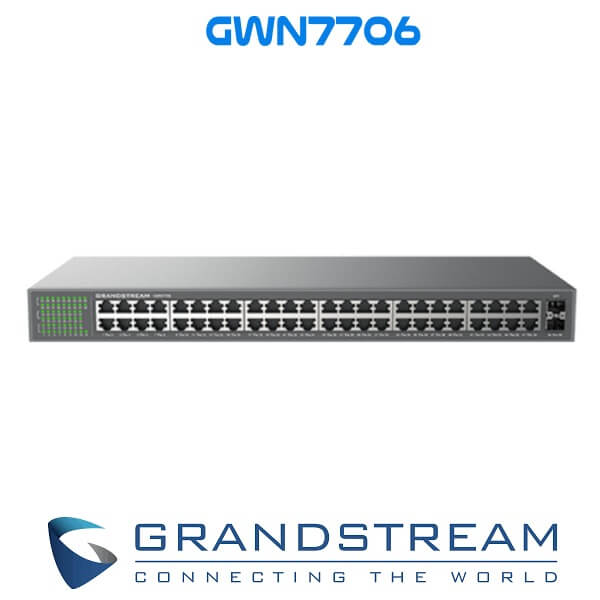

Grandstream GWN7706 Dubai
The Grandstream GWN7706 Dubai are unmanaged network switches that provide a fast, cost-effective way to add high-speed Gigabit connectivity to small to medium-sized offices. It requires no configuration or installation, offers a desktop and wall-mountable design, and provides automatic MDI/MDIX to eliminate the need for crossover cables. Each port supports auto-negotiation to enable the Grandstream GWN7706 Dubai to recognize the link speed of any 10/100/1000 Mbps network device and intelligently adjust for compatibility and optimal performance. PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant intelligent dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE end devices.
Grandstream GWN7706 Specifications
| Gigabit Ports | 48 |
| Enclosure | Metal |
| Mounting | Desktop/ Rack-Mount |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p |
| Port Feature | 48× 10/100/1000 Mbps RJ-45 Ports 2× SFP Fiber Ports
AUTO Negotiation, AUTO MDI/MDIX |
| Network Media | 1000Base-X, 1000Base-T/100Base-TX/10Base-Te, Half/Full-Duplex |
| LED Indicators | Per port: Link/Activity Green, Per device: Power Green |
| Mac Address Table | 16K |
| Switching Capacity | 100Gbps |
| Jumbo Frame | 9KB |
| Advanced Features | Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control
802.1p/DSCP QoS |
| Power Adapter | Internal 100-240V AC,50/60Hz,40W |
| Max Power Consumption
by Base System |
30W@220V/50Hz |
| Environmental | Operating Temperature: 0 to 40 °C (32 to 104 °F)
Storage Temperature: -20 to 60 °C (-4 to 140 °F) Operating Humidity: 10% to 90% Non-condensing Storage Humidity: 10% to 90% Non-condensing |
| Dimensions (L x W x H) | Unit : 440 x 200 x 44mm Package: 500*335*89mm |
| Weight | Unit: 2.80Kg Entire Package: 3.60Kg |
| Package | 1x Switch
1x 1.2m AC Cable Rack-mounting Standard Brackets 4x Rubber Fee 1x GND Cable 1x QIG |
| Compliance | FCC, CE, RCM, IC, UKCA |
