Description
Grandstream GWN7710R Network Switch Dubai

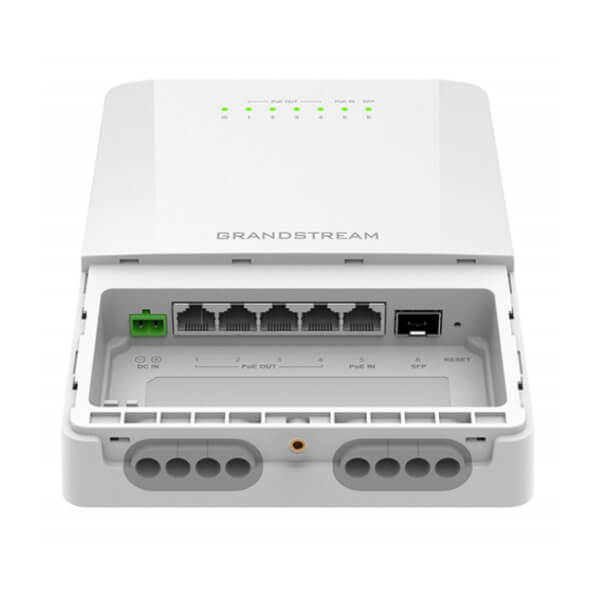

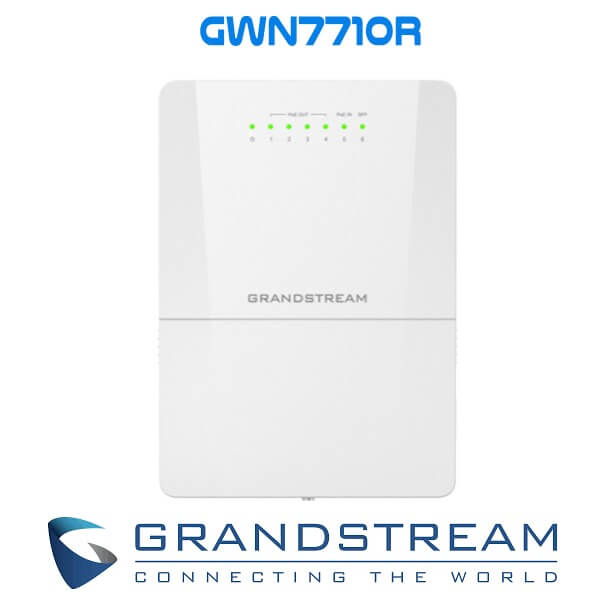

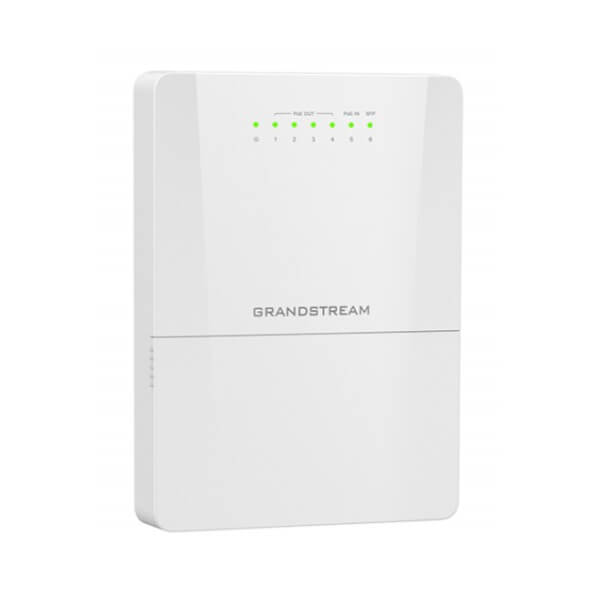

The Grandstream GWN7710R Dubai is a robust 6-port outdoor Lite Managed PoE switch engineered for dependable functionality in demanding environments. Equipped with an SFP Fiber Port for long-distance transmission and five Gigabit RJ45 ports (four PoE output ports and one PoE input port), it supports IEEE 802.3 at/af or 24V/48V DC passive PoE. This switch delivers up to 60W on Port 1 and 30W on Ports 2-4, ensuring optimal power output with the PoE Watchdog function enhancing operational efficiency. Its IP66-rated dustproof and waterproof casing provides reliable protection against harsh weather, withstanding temperatures from -40°C to 60°C. Advanced features include DHCP Snooping to safeguard enterprise networks, STP/RSTP for redundancy and network stability, and built-in QoS for prioritizing network traffic. For easy management, the Grandstream GWN7710R Dubai offers local web configuration, GWN Manager, and GDMS Networking support.
Features
- 5 Gigabit RJ45 ports (4 PoE output ports, 1 PoE input port)
- IEEE 802.3 at/af or 24V/48V DC passive PoE out,Up to 60W on Port 1 and up to 30W on Port 2-4; Supports PoE Watchdog function
- SFP Fiber Port for long-distance transmission
- DHCP Snooping – Only allow DHCP packets from trusted ports to keep the enterprise DHCP environment safe
- IP66 dustproof and waterproof rating; Wide operating temperature range: -40°C and 60°C
- Supports convenient and intelligent local Web configuration, GWN Manager, and GDMS Networking
- STP/RSTP to guarantee fast convergence, ensure network stability, and provide link load balance and redundancy
- Built-in QoS allows for prioritization of network traffic
Specifications
| STANDARDS AND PROTOCOLS | IPv4, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| GIGABIT PORTS | 6 |
| POE PORTS (POE MODELS) | 5 |
| PORT FEATURES | 5x Gigabit Ethernet Ports 1x 1G/2.5G SFP Port |
| PoE CONFIGURATION (PoE MODELS) | Standard PoE output Mode: Port 1 – Port 4 up to 30W on each PoE port; Passive PoE output Mode: Port 1: 4-pair 48V DC up to 60W or 4-pair 24V DC up to 30W; Port 2 – Port 4: 2-pair 48V DC up to 30W or 2-pair 24V DC up to 15W; Note: 4-Pair: Powered on pins: 1,2,4,5(+),3,6,7,8(-); 2-Pair: Powered on pins: 4,5(+),7,8(-) |
| LED INDICATORS | Per device System on : Green; Per Ethernet port Link/Activity: Green; Per Passive PoE out port 48VDC: Orange; Per Passive PoE out port 24VDC: Blue; Support LED indicator switch |
| SWITCHING CAPACITY | 15Gbps |
| JUMBO FRAME | 2K/3K/4K/5K/6K/7K/8K/9K/12K/15K |
| ENCLOSURE | Metal |
