Description

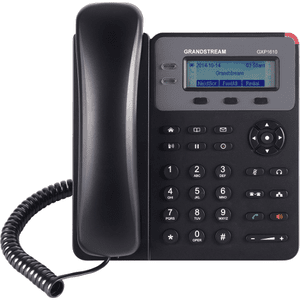

Grandstream GXP1610

The Grandstream GXP1610 has 2 call appearances while handling a single SIP account. The GXP1610 offers high end phone features that are easy to use and can be depended upon in many office settings.

This GXP16xx Series phone comes equipped with a full-duplex speakerphone, echo cancellation and the ability to be paired with a wireless Plantronics headset.

Grandstream GXP1610 Features and Functions

132×48 pixel LCD display
Dual-switched 10/100 Mbps ports
500 Contact Phone Library
Power Supply Included
Zero-Config Provisioning with Grandstream Products

Grandstream GXP1610 Specification

Protocols/Standards	SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record, SRV, NAPTR),DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP
Network Interfaces	Dual switched auto-sensing 10/100 Mbps Ethernet ports
Graphic Display	132 x 48 LCD display
Voice Codes	Support for G.711µ/a, G.723, G.726-32, G.729 A/B, iLBC (pending), Opus (pending), in-band andout-of-band DTMF (In audio, RFC2833, SIP INFO)
Telephony Features	Hold, transfer, forward (unconditional/no-answer/busy), 3-way conferencing, call park/pickup, downloadable phone book (XML, LDAP, up to 500 items), call waiting, call history (up to 200 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones, server redundancy & fail-over
Headset Jack	RJ9 headset jack (allowing EHS with Plantronics headsets)
Wall Mountable	Yes
QoS	Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security	User and administrator level access control, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control
Upgrade/Provisioning	Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-069 or AES encrypted XML configuration file
Power	Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA
