Grandstream GXP2170 Dubai
Grandstream GXP2170 Dubai - Image 2
Grandstream GXP2170 Dubai - Image 3
Grandstream GXP2170 Dubai - Image 4

Grandstream GXP2170 Dubai

Grandstream GXP2170 Dubai

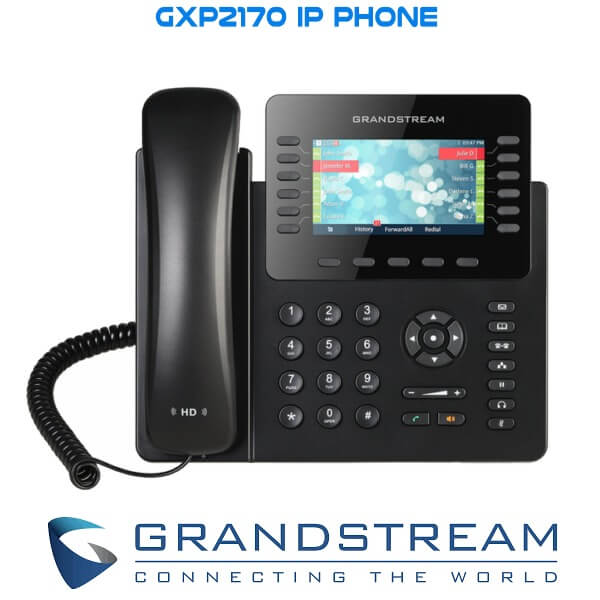

The Grandstream GXP2170 Dubai is a high-end IP phone designed for business and enterprise use. It features a large color LCD screen, support for up to 12 lines and 6 SIP accounts, and a wide range of advanced telephony features such as call forwarding, call waiting, and call transfer.

Category:

Description

Grandstream GXP2170 Dubai

The Grandstream GXP2170 Dubai is a high-end IP phone designed for business use, offering advanced features and functionality that meet the needs of modern communication. It is a powerful and versatile phone that is ideal for busy executives and professionals who need to manage multiple lines and communicate efficiently.

The Grandstream GXP2170 Dubai features a sleek and modern design with a large color LCD display that provides easy access to all of the phone’s features and functions. The display is also customizable, allowing users to set up their own wallpapers and screen savers. The phone comes with up to 12 lines and 6 SIP accounts, providing users with plenty of flexibility in managing their communication needs.

The phone is equipped with dual Gigabit Ethernet ports, allowing for fast and reliable network connectivity. It also features Bluetooth support, enabling users to connect their mobile devices and use the phone’s speaker and microphone for hands-free communication. Additionally, the Grandstream GXP2170 Dubai includes a USB port, which can be used to connect the phone to a computer for use with softphone applications.

One of the key features of the Grandstream GXP2170 Dubai is its support for a wide range of advanced call features, including call waiting, call transfer, and call forwarding. It also includes advanced call control features like busy lamp field (BLF) and bridged line appearance (BLA), allowing users to monitor and manage multiple lines at once.

Other features of the Grandstream GXP2170 Dubai include HD audio quality, support for up to 48 digital on-screen speed dial/BLF keys, and a built-in web browser. The phone also supports a range of popular codecs, including G.711, G.722, G.726, and iLBC, ensuring high-quality voice communication.

Overall, the Grandstream Grandstream GXP2170 Dubai is a powerful and versatile IP phone that is ideal for business use. It offers advanced features and functionality that can help improve communication and productivity in any professional environment.

Grandstream GXP2170 Specifications

  • Protocols/Standards
    • SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV,NAPTR), DHCP, PPPoE, SSH, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069,802.1x, TLS, SRTP, IPV6, CDP/SNMP/RTCP-XR
  • Network Interfaces Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
  • Graphic Display 4.3 inch (480×272) TFT color LCD
  • Bluetooth Yes, integrated
  • Feature Keys
  • 12 line keys with up to 6 SIP accounts, 5 XML programmable context sensitive softkeys, 5 navigation/menu keys, 11 dedicated function keys for : MESSAGE (with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL
  • VoiceCodecs
    • Support for G7.29A/B, G.711μ/a-law, G.726, G.722(wide-band), G723.1, iLBC, Opus,in-band and out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB,AGC
  • Auxiliary Ports RJ9 headset jack (allowing EHS with Plantronics headsets), USB, extension module port
  • Telephony Features
    • Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-appearance (SCA)/bridged-line-appearance(BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log(up to 500 records), XML customization of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail-over
  • HD Audio Yes, HD handset and speakerphone with support for wideband audio

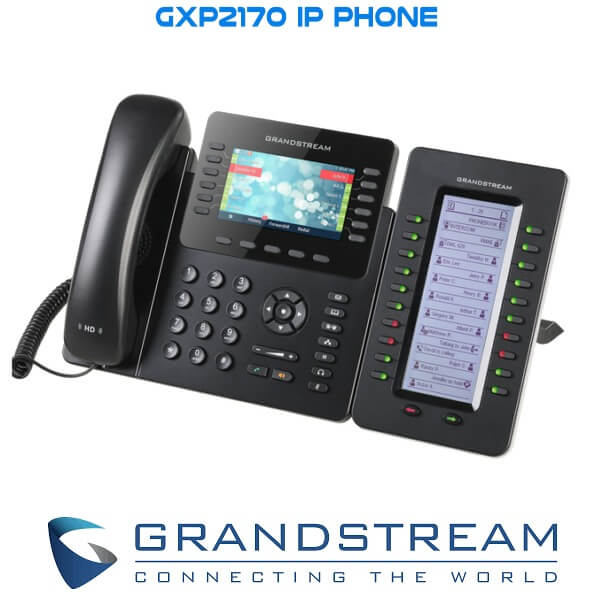

  • Extension Module
    • Yes, can power up to 4 GXP2200EXT modules which features a 128×384 graphic LCD, 20 quick-dial/BLF keys which dual-color LED, 2 navigation keys, and less than 1.2W power consumption per unit.

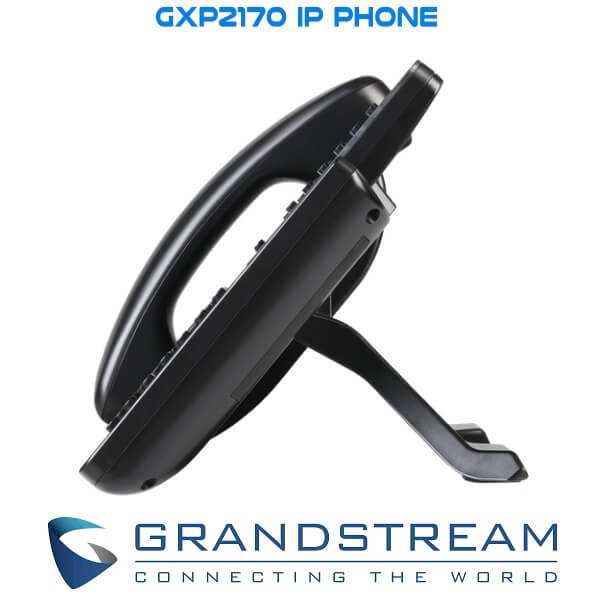

  • Base Stand Yes, 2 angle positions available, Wall Mountable
  • QoS Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS
  • Security User and administrator level passwords, MD5 and MD5-sess based authentication,256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control
  • Multi-language English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, simplified
  • and traditional Chinese, Korean, Japanese and more
  • Upgrade/Provisioning Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-069 or AES
  • encrypted XML configuration file, FTP/FTPS
  • Power & Green Energy Efficiency
  • Universal power adapter included: Input:100-240V ; Output: +12V, 1.0A ;
  • Integrated Power-over-Ethernet (802.3af)
  • Max power consumption : 5.4W(without GXP2200EXT) or 9.2W(with 4 cascaded GXP2200EXTs)
  • Physical Dimension: 228mm(W) x 206mm(L) x 46mm(H); Unit weight:0.98kg ; Package
  • weight:1.43kg
  • Temperature and Humidity Operation: 0°C to 40°C Storage: -10°C to 60°C Humidity: 10% to 90% Non-condensing
  • Package Content GXP2170 phone, handset with cord, base stand, universal power supply, network
  • cable, Quick Installation Guide, GPL license
  • Compliance
  • FCC: Part 15 (CFR 47) Class B
  • CE: EN55022 Class B; EN55024 Class B;EN61000-3-2; EN61000-3-3;EN60950-1
  • RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950.1
